WUXGA 22000 Lumens 3D Mapping Projector Laser HDMI USB VGA Wi Fi Dual Color
Product Details
| Aspect Ratio: | 16:10 | Connectivity: | HDMI, USB, VGA, Wi-Fi |
|---|---|---|---|
| Brightness: | 22000 Lumens | Len Type: | Motorized/Manual Lens |
| Resolution: | WUXGA | Display Type: | 3LCD |
| Screen Size: | 50-600inch | Keystone Correction: | Yes |
| Len Shift: | Yes | Adantage: | Factory Supplier |
| ODM/OEM: | Yes | Brightness: | 22000 ANSI Lumens |
| Technology: | 3LCD Laser, Dual-Color | Application: | Large Venue Projection Mapping |
| Highlight |
3D DLP projector with HDMI,LCD projector for corporate venues,educational 3D mapping projector |
||
Product Description

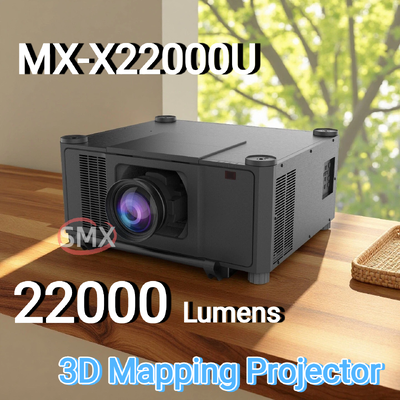

The MX-X22000U laser projector is designed for large venue projection environments where high brightness and stable performance are essential. With 22000 ANSI lumens, WUXGA resolution, and advanced dual-color laser technology, the projector delivers bright, vivid images even on very large projection surfaces.
Large building facades can be transformed into immersive visual displays using projection mapping technology.
Laser projectors are widely used in immersive exhibitions and digital art installations.
Large venue projectors provide dynamic visual backgrounds for concerts, shows, and corporate events.
The projector delivers 22000 lumens of brightness, allowing clear projection on large screens and building surfaces.
High brightness is essential for:
- Outdoor projection mapping
- Stage projection
- Large venue events
The advanced dual-color laser light engine improves color performance and brightness stability.
Benefits include:
- Wider color gamut
- Stable brightness
- Lower maintenance cost
Native resolution 1920 * 1200 (WUXGA) provides detailed and sharp projection images.
This resolution is widely used for:
- Professional AV installations
- Simulation systems
- Immersive projection environments
The laser light source offers up to:
- 20,000 hours lifespan
- 30,000 hours in ECO mode
This significantly reduces maintenance compared with traditional lamp projectors.
| Key parts | ||
| Model No. | MX-X22000U | |
| Brightness ( Ansi Lumens ) |
22000 | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source | Dual-Color Laser(Blue+Red) | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) | Zoom/Focus | Motorized |
| Throw Ratio(16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift | V: ±65% H:±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | 41dB |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | *1(Display)(Optional) | |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out(mini-jack,3.5mm) | *1 | |
| Control | RS232C(Input) | *1 |
| RS232C(Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| General Spec | ||
| Audio | Speaker | N/A |
| Power Consumption | Power Requirements | 120~240V@ 50/60Hz |
| Power Consumption (Full) (Max) |
1520W | |
| Power Consumption (Normal) (Max) |
1400W | |
| Power Consumption (ECO1) (Max) |
1155W | |
| Power Consumption (ECO2) (Max) |
795W | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 45°C |
| Operating Thumidity. | 20%-80% | |
| Store Temp. | -10 to 50°C | |
| Store Humidity. | 20%-80% | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°,H:±30° Pincushion/Barrel Correction, 6 Corner Geometry correction Grid ImageTune correction |
A 22000-lumen projector is typically used for large venues, projection mapping, outdoor projection, and large-screen environments.
Yes. Laser projectors offer a longer lifespan, more stable brightness, and lower maintenance requirements compared with traditional lamp projectors.
Small indoor projection mapping projects may require 5000-10000 lumens, while large outdoor installations often require 20000 lumens or more.
WUXGA and 4K resolutions are commonly used because they provide clear images on large screens.
Yes. Multiple projectors can be combined using edge blending technology to create a seamless, large image.
