360 Degree Immersive Projection Environment Design Guide
A 360 degree projection system combines multiple professional laser projectors, edge blending and geometry correction to surround visitors with continuous visual content across walls, floors and other projection surfaces.
What Is a 360 Degree Projection Environment?
Traditional projection normally places visual content on one rectangular screen. A 360 degree projection environment extends the image across several surfaces so that visitors are surrounded by digital content.
Depending on the room design, projected imagery may cover the front wall, side walls, rear wall, floor and even the ceiling. The result is a visual environment that occupies a much larger portion of the viewer's field of vision.
This type of projection is widely used in museums, digital art exhibitions, experience centers, simulation systems and other applications where immersion and spatial storytelling are important.
Why Use 360° Immersive Projection?
Wider Field of View
Projection surrounds visitors with content rather than restricting visuals to a single front-facing screen.
Stronger Immersion
Multi-surface imagery creates a stronger sense of presence for exhibitions, training and entertainment.
Large Visual Canvas
Walls and floors can become part of one continuous digital environment.
Flexible Content
The same room can display different digital experiences without rebuilding the physical space.
Core Technologies in a 360° Projection System
Multi-Projector System
Several projectors divide the total visual canvas into multiple channels and provide sufficient coverage for walls and floors.
Edge Blending
Overlapping projector images are blended so neighboring channels appear as one continuous image.
Geometry Correction
Image geometry is adjusted to match corners, curved walls and other architectural surfaces.
How Many Projectors Are Needed?
There is no fixed projector quantity for a 360-degree room. The number of projectors depends on the dimensions of the room, image size, projector throw ratio and required resolution.
Selecting Projector Brightness
Brightness is distributed across the complete projection surface, so larger immersive environments generally require greater total light output.
Ambient light, screen material, room size and content style should all be considered when determining projector brightness.
Professional immersive installations may use projectors from several thousand ANSI lumens to 10,000, 20,000 or higher ANSI lumen classes depending on the application.
Edge Blending Connects Multiple Images
In a multi-projector room, neighboring images overlap slightly. These areas naturally receive light from more than one projector.
Edge blending compensates for the brightness difference in the overlap zones and creates smoother transitions between channels.
Geometry Correction for Corners and Irregular Surfaces
A 360-degree room normally contains corners and may include curved or angled surfaces. Projection images must therefore be corrected to match the physical geometry of the room.
4-Corner
Basic independent corner adjustment.
Multi-Point
Detailed correction for large images.
Grid Tuning
Fine alignment across complex surfaces.
Curve Correction
Supports curved and cylindrical surfaces.
Why 360° Projector Installation Capability Matters
The term 360-degree installation refers to the physical orientation of the projector rather than the viewing angle of the image.
Professional laser projectors supporting flexible orientation may be mounted horizontally, vertically or at other suitable angles, depending on manufacturer specifications.
This flexibility helps system integrators position projectors for wall, floor, ceiling and unconventional projection surfaces.
Selecting the Right Throw Ratio
Short Throw
Useful for compact immersive rooms where installation depth is limited.
Standard Throw
Suitable for conventional museum and exhibition installation environments.
Long Throw
Suitable for large immersive spaces where projectors can be installed farther from projection surfaces.

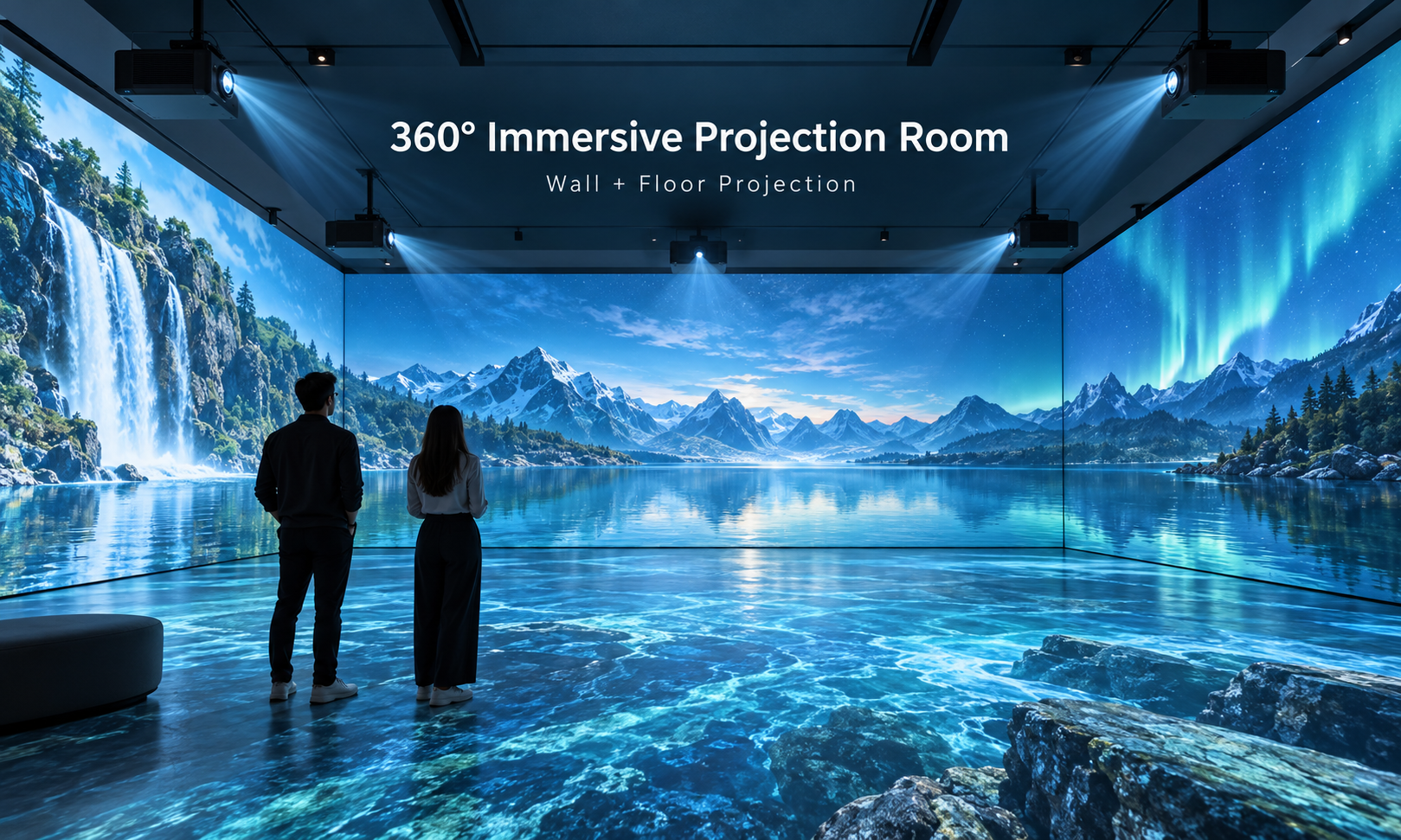

Typical 360° Immersive Projection System
A professional immersive environment combines content generation, processing, projection and centralized control.
Where 360 Degree Projection Systems Are Used
How to Design a 360° Immersive Projection Room
Measure the Room
Confirm wall dimensions, ceiling height and all projection surfaces.
Calculate Coverage
Determine image dimensions, projector quantity, throw ratio and overlap.
Select Equipment
Choose projector brightness, resolution, lenses and processing system.
Calibrate the Room
Configure geometry correction, edge blending and synchronized playback.
360° Immersive Projection Solutions from SMX
SMX provides professional laser projector solutions for immersive rooms, museums, digital exhibitions, simulation, projection mapping and other multi-projector applications.
Different projector platforms can support various brightness, resolution, throw ratio and installation requirements.
For 360-degree immersive projects, our team can assist with projector quantity, lens configuration, projection distance, overlap planning and installation layout based on the actual room.
