Curved Screen Projection System Design for Immersive and Simulation Environments
Curved projection screens can create wider fields of view and stronger visual immersion for simulation, museums, panoramic visualization and interactive environments. Professional system design requires careful projector placement, lens selection, geometry correction and edge blending.
Why Use a Curved Projection Screen?
A conventional flat screen places the complete image on one plane. A curved screen wraps part of the visual field around the viewer, allowing projected content to occupy more of the peripheral vision.
A professional curved screen projection system can therefore create stronger immersion for applications such as flight simulation, racing simulation, digital exhibitions and panoramic visualization.
Curved surfaces also introduce additional optical and geometric challenges, so projector quantity, throw ratio, overlap and image correction need to be considered as one system.
Advantages of Curved Screen Projection
Wider Field of View
A curved image can extend farther into the viewer's peripheral vision.
Stronger Immersion
Surrounding visual content can provide a stronger sense of presence than a flat display.
Panoramic Images
Several projector channels can create extremely wide continuous images.
Flexible Scale
Curved systems can be configured for compact simulators or large immersive environments.
Screen Curvature Affects the Projection Design
Not all curved screens have the same radius or viewing angle. The screen geometry should be defined before projector positions and lenses are finalized.
Panoramic Display
Suitable for exhibition, control-room and visualization applications requiring a wide continuous image.
Immersive Simulation
Provides greater peripheral image coverage for flight, racing and training simulators.
High Immersion
Requires more detailed geometry correction and projector coverage planning.
Why Curved Screens Often Use Multiple Projectors
A very wide curved screen may exceed the practical image width available from one projector.
Multiple projectors can divide the panoramic canvas into several image channels, allowing the system to achieve greater horizontal coverage and higher total resolution.
Geometry Correction for Curved Projection Surfaces
A standard rectangular projector image will not naturally match a curved projection surface.
Geometry correction reshapes the digital image so that the final projected content appears geometrically correct when viewed on the curved screen.
4-Corner
Basic image boundary adjustment.
Grid Tune
Fine adjustment across the image area.
Curve Correction
Adapts images to curved surfaces.
Multi-Point
Detailed correction for complex geometry.
Edge Blending Connects Multiple Projector Channels
Each projector normally covers part of the total curved screen. Adjacent images intentionally overlap to create a controlled blending region.
Edge blending adjusts image brightness through these overlapping areas so that separate projector channels appear as one continuous panoramic image.
Throw Ratio and Projector Positioning
Curved screen systems require careful projector positioning. Each projector must cover the required section of the screen while maintaining sufficient overlap with neighboring channels.
Short-throw lenses are frequently useful in compact simulation environments, while standard or longer throw configurations can be used where greater installation depth is available.
Short Throw
Useful for compact simulators and restricted installation depth.
Standard Throw
Suitable for larger rooms with flexible installation positions.
Lens Shift
Helps position projected images without excessive digital correction.
Curved Screens for Flight and Racing Simulation
Flight Simulator
Curved projection can provide a wide forward and peripheral field of view for cockpit visualization.
Multiple projectors can reproduce terrain, runway, weather and surrounding visual environments.
Racing Simulator
A panoramic curved screen extends the racing environment beyond the central viewing area.
This can improve visual immersion while reducing the physical separation created by multiple flat monitors.
The Viewing Point Should Be Defined Early
Screen curvature and projected geometry should be designed around the intended viewing position whenever possible.
This is especially important for simulators because the driver or pilot generally remains in a predictable central location.

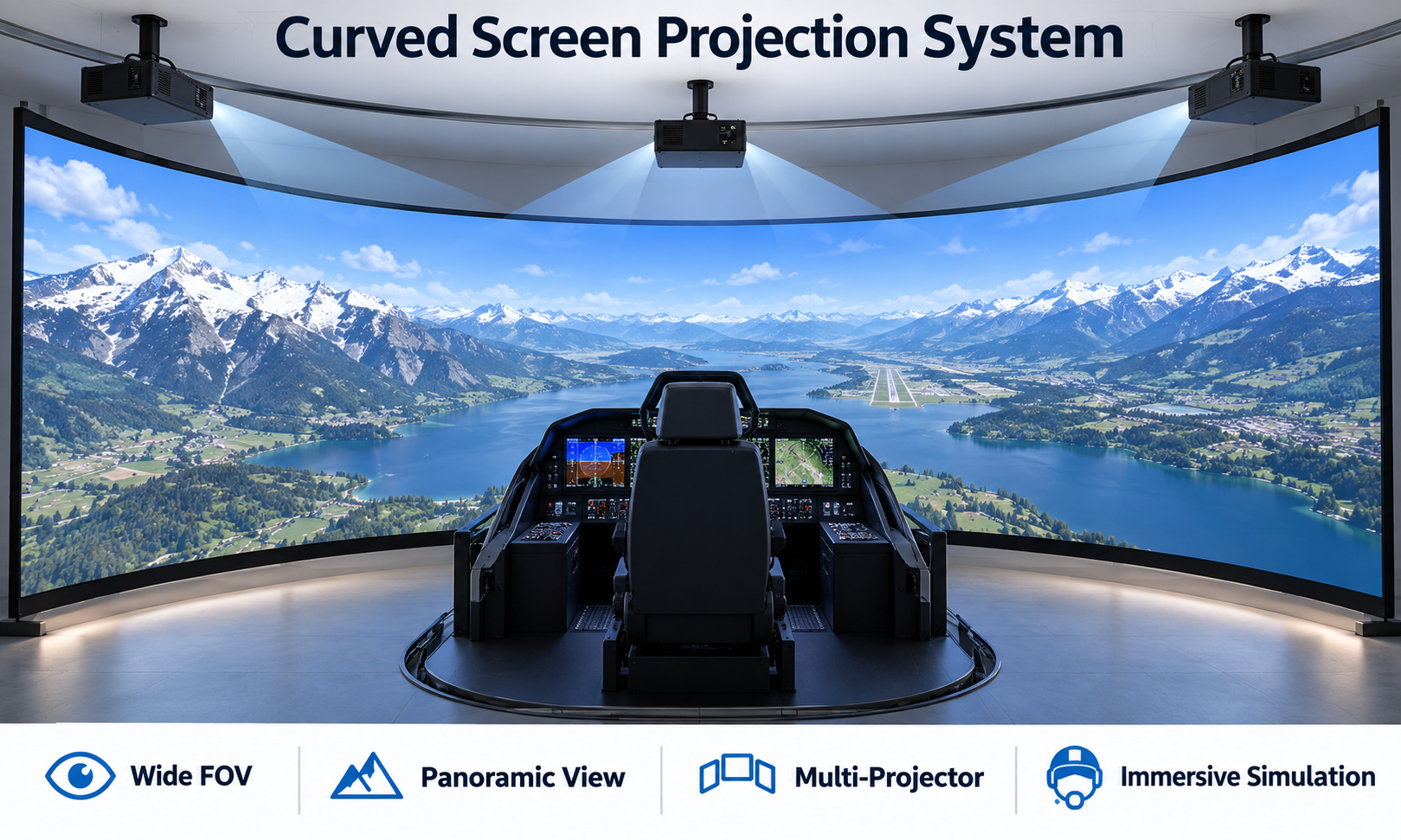

Typical Curved Screen Projection System
Where Curved Screen Projection Systems Are Used
Problems to Avoid in Curved Screen Projection
Selecting Projectors Before Defining Screen Geometry
Screen width, radius and viewing angle should be known before the optical layout is finalized.
Insufficient Image Overlap
Edge blending requires enough overlap between adjacent projector channels.
Excessive Digital Correction
Physical projector positioning and lens shift should be optimized before heavy digital warping.
Ignoring the Viewer Position
A panoramic screen should be designed around the intended field of view and primary viewing position.
Curved Screen Projection Design Process
Define the Screen
Confirm width, height, radius and viewing angle.
Calculate Coverage
Determine projector quantity, image width and overlap.
Select Projectors
Choose brightness, resolution, lens and installation position.
Warp & Blend
Correct geometry and blend adjacent projector channels.
Curved Screen Projection Solutions from SMX
SMX provides professional laser projector solutions for flight simulation, racing simulation, panoramic visualization, immersive rooms and other curved-screen applications.
Different projector platforms can support various brightness levels, throw ratios, resolutions and installation environments.
For multi-projector curved screen projects, our team can assist with projector quantity, throw distance, lens configuration, overlap areas and installation planning based on actual screen dimensions.
