Edge Blending and Geometry Correction for Multi-Projector Immersive Systems
Published On: September 16, 2026
Edge Blending and Geometry Correction for Multi-Projector Immersive Systems
Professional multi-projector systems rely on edge blending and geometry correction to combine several projected images into one visually continuous canvas across flat, curved and irregular surfaces.
Why Edge Blending and Geometry Correction Are Needed
Large immersive environments often exceed the image size that one projector can practically cover. Several projectors are therefore installed side by side to divide the visual canvas into multiple image channels.
Simply placing these images next to each other is not enough. Small alignment errors can produce visible gaps or distorted image boundaries, while overlapping projector beams can create bright bands.
An edge blending projector system combines geometry alignment, controlled image overlap and brightness adjustment so several projector channels can appear as one unified image.

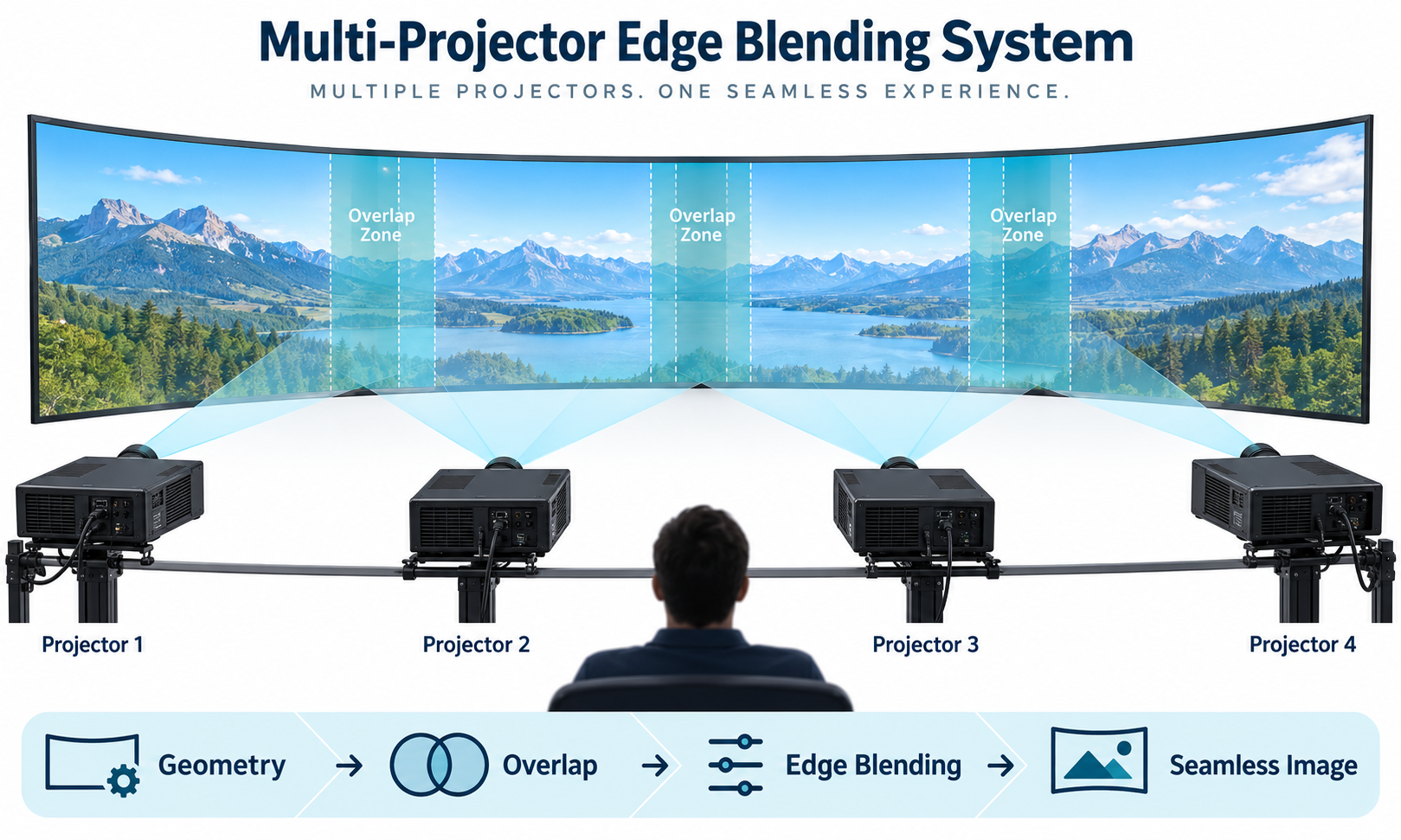

From Separate Projectors to One Continuous Image
These steps should be treated as one calibration process. Accurate geometry provides the foundation, while edge blending refines the transition between adjacent image channels.
What Happens in the Overlap Zone?
Adjacent projector images intentionally overlap by a controlled amount. Without compensation, the overlap area receives light from two projectors and therefore appears brighter.
Edge blending gradually reduces the brightness toward the edge of each projector image. The two adjusted image channels then combine to create a more uniform transition.
Controlled Overlap
Neighboring projector images extend into each other rather than simply touching at one boundary.
Brightness Adjustment
Light intensity is reduced progressively through the overlap area.
Seamless Transition
Correct calibration helps reduce visible boundaries between projector channels.
Geometry Correction Aligns Images to the Projection Surface
Projectors cannot always be positioned perfectly perpendicular to the projection surface. Immersive environments may also include corners, curves, angled walls and irregular structures.
Geometry correction reshapes the digital image so the final projected result matches the intended physical surface.
Keystone
Corrects basic trapezoidal image distortion caused by off-axis projector positioning.
4-Corner
Allows individual adjustment of the four image corners.
Multi-Point / Grid
Provides more detailed control across complex large-format images.
Curve Correction
Helps adapt images to curved and cylindrical projection surfaces.
Edge Blending vs Geometry Correction
Geometry correction controls the shape and position of each projector image.
Edge blending controls the transition between overlapping projector images.
Geometry Should Be Corrected Before Final Edge Blending
The image boundaries of neighboring projectors should first be aligned geometrically. If the image shapes do not match, the overlap region cannot be blended accurately.
Good Projector Placement Reduces Digital Correction
Digital correction is powerful, but the projector should still be positioned as accurately as possible during installation.
Lens shift and optical zoom should generally be used before excessive digital correction whenever the projector and installation design allow it.
Physical Position
Align projector mounting positions before software calibration begins.
Lens Shift
Use optical image positioning where available to reduce unnecessary digital distortion.
Geometry Correction
Use digital correction to finish alignment and compensate for complex surfaces.
Multi-Projector Blending on Curved Screens
Curved projection surfaces are common in simulation, panoramic visualization and immersive exhibition environments.
Each projector image may require additional warping so the content follows the curvature of the screen. Adjacent channels must then maintain sufficient overlap for edge blending.
Brightness and Color Matching Also Matter
Even if geometry and overlap are correctly configured, a multi-projector image may still appear uneven if neighboring projector channels have different brightness or color characteristics.
Professional systems should therefore use matched projector models and consistent image settings wherever possible.
Where Edge Blending and Geometry Correction Are Used
Common Multi-Projector Alignment Problems
Visible Bright Seam
The overlap area may not be correctly blended or may have excessive combined brightness.
Double Image
Adjacent images may be geometrically misaligned inside the overlap region.
Uneven Color
Projector color or brightness settings may not match across channels.
Distorted Corners
More detailed multi-point or grid correction may be required for complex surfaces.
How to Plan a Multi-Projector Blending System
Measure the Surface
Confirm image dimensions, shape and curvature.
Plan Projector Coverage
Determine projector quantity, image width and overlap.
Align Geometry
Correct each projector image to match the physical surface.
Blend & Calibrate
Adjust overlap, brightness and color for a unified image.
Multi-Projector Projection Solutions from SMX
SMX provides professional laser projector solutions for immersive environments, simulation systems, digital exhibitions, museums and other multi-projector applications.
Available projector platforms can support different brightness levels, throw ratios, lens shift ranges and geometry correction requirements.
For multi-projector projects, our team can assist with projector quantity, throw distance, overlap planning and installation configuration based on actual project dimensions.
Planning a Multi-Projector Blending Project?
Send us your projection surface dimensions and installation requirements. Our team can help evaluate projector quantity, throw ratio, overlap areas and geometry correction requirements.
Projection Width • Projection Height • Surface Shape • Projection Distance • Mounting Position • Required Resolution
