How to Choose the Right Projector Lens and Throw Ratio for Immersive Projection
Published On: September 16, 2026
How to Choose the Right Projector Lens and Throw Ratio for Immersive Projection
The correct projector lens determines whether the required image can be produced from the available installation distance. Understanding throw ratio, image width, lens shift and room geometry is essential when designing professional immersive projection systems.
Why Throw Ratio Is Critical in Immersive Projection
Projector brightness and resolution are important, but they do not determine whether a projector can physically create the required image from a specific installation position.

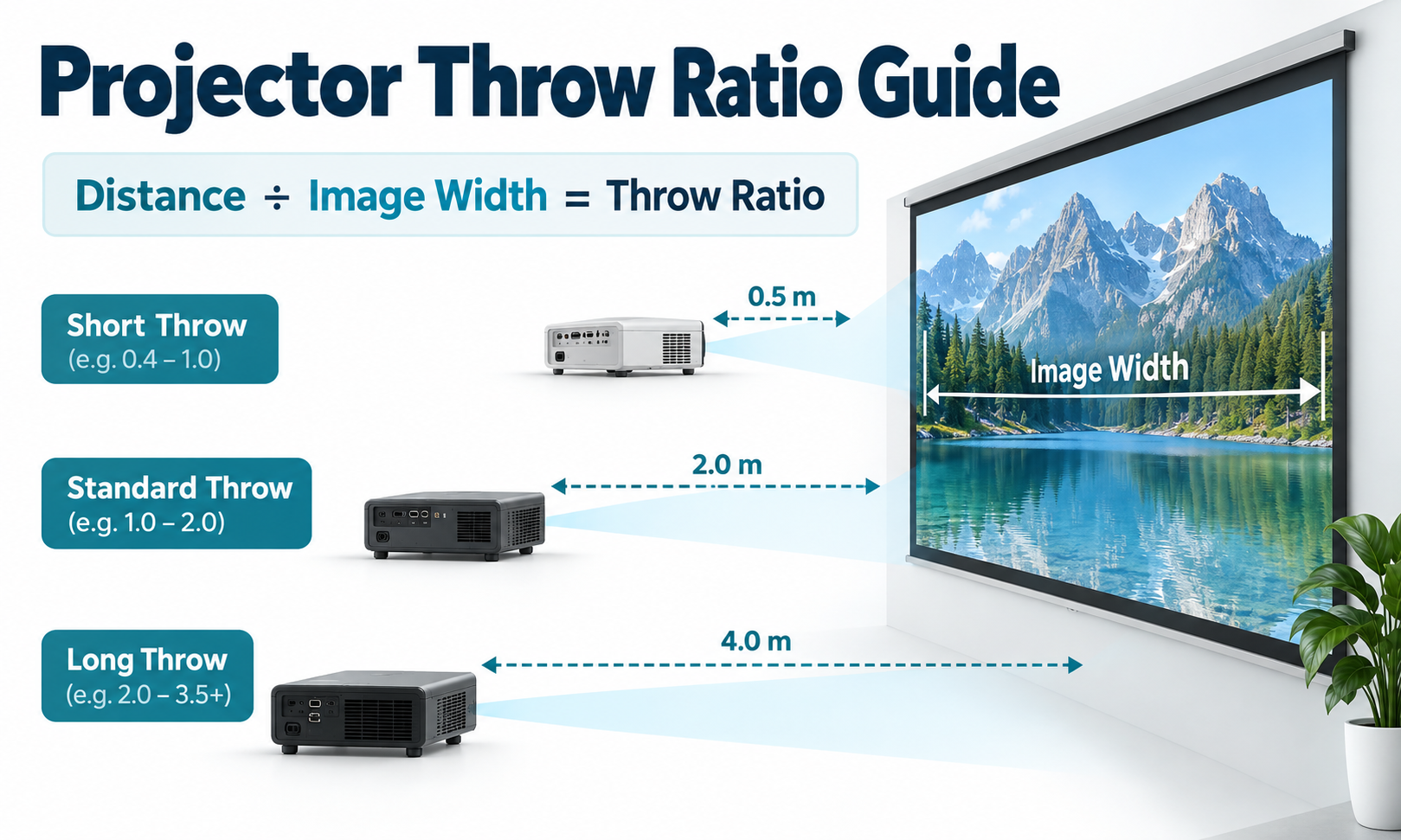

The projector throw ratio describes the relationship between the distance from the projector to the projection surface and the width of the projected image.
Selecting the wrong throw ratio can result in an image that is too small, too large or impossible to align correctly with the intended projection surface.
Short Throw, Standard Throw or Long Throw?
Different projector lenses are designed for different installation distances. The correct choice depends on the available space and required image width.
Large Image from Short Distance
Short-throw lenses are ideal when projector installation depth is limited.
They are commonly used for immersive rooms, simulation systems and spaces where people may move near the projection surface.
Flexible General Installation
Standard lenses provide a practical balance between image size and installation distance.
They are suitable for museums, exhibitions, meeting spaces and many conventional professional installations.
Projection from Greater Distance
Long-throw lenses are used when projectors must be positioned farther away from the projection surface.
Typical applications include auditoriums, stages, large venues and architectural projection.
How to Calculate Projector Installation Distance
If the required image width and projector throw ratio are known, the approximate installation distance can be calculated.
What Should Be Checked Before Selecting a Lens?
Image Width
Determine the actual projected image width before calculating throw distance.
Installation Distance
Measure the available projector-to-surface distance within the venue.
Mounting Position
Confirm whether the projector will be ceiling mounted, wall mounted or installed on a technical structure.
Visitor Movement
People walking between the projector and screen may create shadows in some environments.
Surface Geometry
Flat walls, curved screens and irregular surfaces may require different optical layouts.
Lens Shift
Lens shift can provide additional flexibility where projectors cannot be centered on the screen.
Why Lens Shift Matters
Projectors cannot always be mounted directly in front of the center of the projection surface.
Vertical and horizontal lens shift allow the projected image to move while the projector remains in its physical installation position.
This can simplify ceiling installations, multi-projector systems and venues where structural obstacles restrict projector placement.
Lens Selection for Immersive Multi-Projector Rooms
Multi-projector immersive rooms require more precise optical planning because each projector must cover a defined section of the total visual canvas.
Projectors also need controlled overlap areas for edge blending. The available lens range therefore affects projector quantity, mounting positions and image overlap.
Which Lens Type Is Suitable for Different Applications?
| Application | Typical Installation Need | Lens Direction |
|---|---|---|
| Immersive Room | Large image with limited room depth | Short or medium throw |
| Flight Simulator | Wide image close to curved screen | Short throw |
| Digital Art Exhibition | Flexible multi-wall installation | Short or standard throw |
| Museum | Varied room layouts and installation positions | Short or standard throw |
| Large Exhibition Hall | Greater projector-to-screen distance | Standard or long throw |
| Projection Mapping | Projector located far from target structure | Standard or long throw |
Why Short Throw Is Popular for Immersive Projection
Short-throw projectors can create large images without requiring long installation distances.
This is particularly useful in immersive rooms where the projector must remain inside the same physical space as visitors.
Avoid These Lens Selection Problems
Choosing the Projector Before Measuring the Room
The available installation distance should be confirmed before selecting the required throw ratio.
Ignoring Image Overlap
Multi-projector systems require additional image width for edge-blending overlap.
Depending Too Much on Digital Keystone
Good physical positioning and optical adjustment should be prioritized whenever possible.
Ignoring Installation Obstacles
Lighting fixtures, beams, ventilation ducts and other equipment can affect projector mounting positions.
How to Select the Correct Projector Lens
Measure the Screen
Confirm the required projection width and height.
Measure Distance
Determine the available projector installation distance.
Calculate Ratio
Divide projection distance by required image width.
Check Lens Range
Confirm lens shift, zoom and installation tolerance.
Projector Lens and Installation Solutions from SMX
SMX provides professional laser projector solutions for immersive rooms, simulation systems, museums, digital exhibitions, projection mapping and large venue applications.
Different projector platforms and throw ratios can support short-distance, standard-distance and large-venue installations.
For multi-projector projects, our team can help evaluate image width, throw distance, projector quantity, lens requirements and installation configuration based on actual project dimensions.
Not Sure Which Throw Ratio Your Project Needs?
Send us your projection size and available installation distance. Our team can help evaluate the suitable projector throw ratio, lens configuration and projector quantity for your project.
Image Width • Image Height • Projection Distance • Mounting Position • Screen Shape • Application Type
