Laser Projection System Design for Universities and Lecture Halls
Published On: September 16, 2026
Laser Projection System Design for Universities and Lecture Halls
University lecture halls require bright, detailed and reliable large-screen visual systems for presentations, diagrams, video, hybrid teaching and academic content. Professional laser projectors provide flexible installation and long-term operation for modern education environments.
Why Lecture Halls Need Professional Projection
Large classrooms and university lecture halls have very different visual requirements from small meeting rooms.
A professional lecture hall projector must provide enough brightness and image detail for students seated at the rear of the room while maintaining good readability under normal classroom lighting.
Projector brightness, resolution, screen size, throw ratio and mounting location should therefore be planned together.
Key Requirements for University Projectors
High Brightness
Helps keep presentations visible while classroom lighting remains on for note-taking.
High Resolution
Improves readability of text, diagrams, spreadsheets and technical teaching content.
Large Image
A sufficiently large screen helps students at the rear of the hall see teaching content clearly.
Lens Shift
Provides installation flexibility around ceiling structures and lighting equipment.
Laser Light Source
Supports long-term operation with reduced routine light-source maintenance.
Network Control
Simplifies centralized management across classrooms and university buildings.
How Many Lumens Does a Lecture Hall Need?
Required brightness depends on screen size, room lighting, projection surface and viewing distance.
WUXGA or 4K for Education Projection?
WUXGA 1920×1200
WUXGA is well suited to presentations, documents, spreadsheets, diagrams and general university teaching.
Its 16:10 aspect ratio provides useful vertical image space for professional and academic content.
4K Resolution
4K is suitable for engineering visualization, medical imaging, detailed graphics and premium large-screen academic environments.
Image Size Matters as Much as Resolution
Increasing projector resolution alone does not guarantee that students at the back of a lecture hall can read small text.
Screen dimensions, font size and maximum viewing distance should be evaluated together when planning the teaching environment.
Choose the Lens According to the Room Layout
Short Throw
Suitable where projector installation depth is limited or shadows need to be reduced.
Standard Throw
Suitable for most conventional university lecture halls with ceiling-mounted projectors.
Long Throw
Suitable for large halls where the projector must be installed farther from the screen.
Lens Shift Simplifies Ceiling Installation
Lecture hall ceilings may contain lights, speakers, ventilation equipment and architectural structures.
Vertical and horizontal lens shift allow the image to be positioned optically without relying excessively on digital keystone correction.
Projection as Part of a Hybrid Teaching System
Modern lecture halls increasingly combine local teaching with video conferencing, lecture capture and remote learning.
The projection system can operate as part of a larger AV platform that integrates cameras, microphones, computers and conferencing equipment.
Why Laser Projectors Are Suitable for Universities
Long Light-Source Life
Reduces routine maintenance across large education facilities.
Fast Startup
Supports simple classroom operation between lectures.
Stable Brightness
Helps provide consistent visual performance during long teaching schedules.
Network Management
Supports centralized monitoring in multi-room installations.

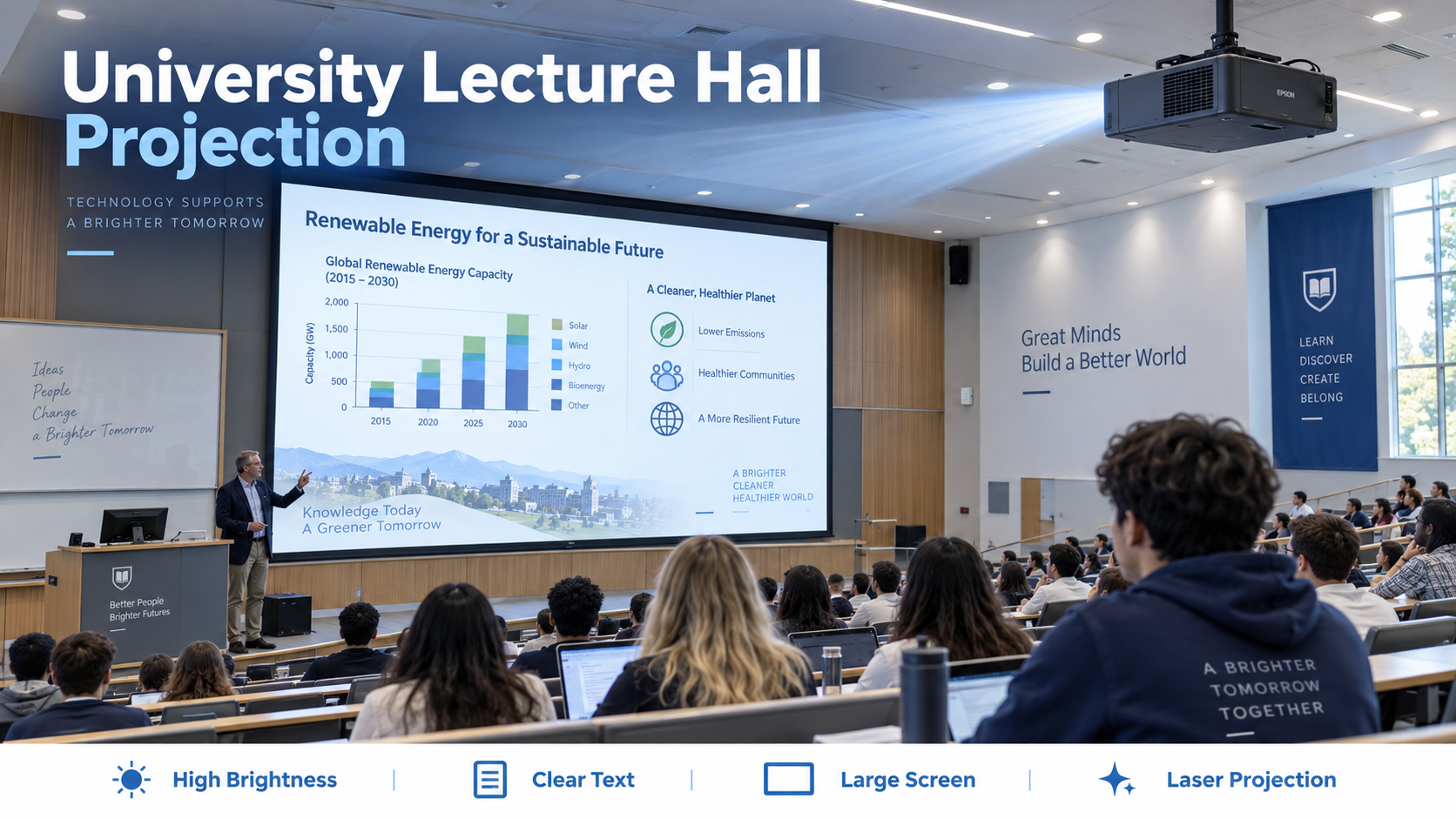

Typical Lecture Hall Projection System
Where Professional Education Projectors Are Used
How to Design a Lecture Hall Projection System
Measure the Room
Confirm room dimensions, seating and screen location.
Define Screen Size
Consider maximum viewing distance and teaching content.
Select Projector
Determine brightness, resolution, throw ratio and lens shift.
Integrate AV Control
Connect teaching sources, cameras and room control equipment.
Problems to Avoid in Education Projection
Choosing Brightness for a Dark Room
Evaluate performance with normal classroom lighting switched on.
Using a Screen That Is Too Small
Students seated at the back may struggle to read detailed content.
Ignoring Throw Distance
Confirm projector location before finalizing the lens or model.
Ignoring System Management
Large campuses benefit from remote control and centralized monitoring.
Education Laser Projector Solutions from SMX
SMX provides professional laser projector solutions for universities, lecture halls, smart classrooms, training centers and other professional education environments.
Different projector platforms can support various brightness levels, resolutions, throw ratios and installation requirements.
For education projects, our team can assist with projector brightness, screen size, projection distance, lens selection and installation planning according to actual classroom dimensions.
Planning a University Projection Project?
Send us your lecture hall dimensions and screen requirements. Our team can help evaluate projector brightness, resolution, throw ratio and installation configuration.
Room Dimensions • Screen Size • Projection Distance • Ambient Light • Maximum Viewing Distance • Required Resolution
