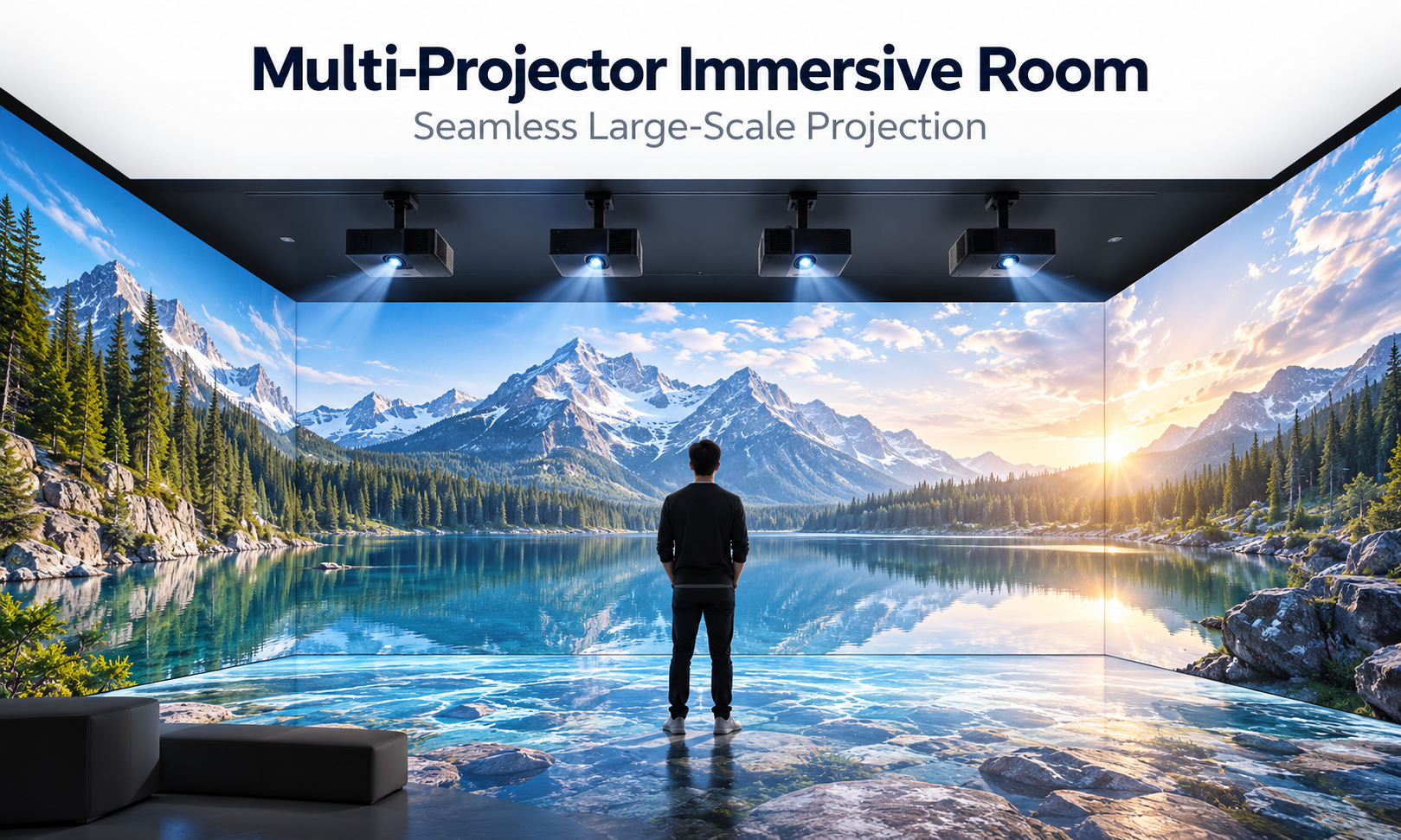

Multi Projector Blending Solution for Immersive Rooms
Published On: September 16, 2026
Multi Projector Blending Solution for Immersive Rooms
Multi-projector blending combines several professional laser projectors to create wide, panoramic and multi-surface visual environments with smooth image transitions and seamless large-scale projection.
Why Use Multiple Projectors in an Immersive Room?
A single projector is suitable for conventional screens and smaller projection areas. However, immersive rooms often require images to extend across several walls, floors or curved surfaces.
A multi projector blending system allows several projectors to work together as one visual system, creating a much larger digital canvas than a single projector can provide.
This approach is commonly used in museums, digital art exhibitions, simulation environments, experience centers and interactive spaces where wide viewing angles and large image coverage are essential.
How Multi Projector Blending Works
Adjacent projectors are positioned so that their images overlap by a controlled amount. The blending system then adjusts brightness and color in these overlap regions.
When correctly calibrated, the viewer sees one continuous image rather than several individual projector images.
Core Technologies Behind Seamless Multi-Projector Projection
Edge Blending
Adjusts brightness and color in overlapping areas to create smooth transitions between adjacent projector images.
Geometry Correction
Aligns projected images with flat, curved and irregular projection surfaces.
Color Matching
Helps maintain consistent color and brightness between multiple projector channels.
Multi-Channel Playback
Media servers distribute synchronized content across several projector outputs.
Removing Visible Seams Between Projectors
When two projector images overlap, the overlapping section naturally receives light from both projectors and may appear brighter.
Edge blending compensates for this brightness difference and creates a gradual transition between neighboring images.
Proper blending allows panoramic and multi-wall installations to appear as one continuous visual surface without obvious image seams.
Geometry Correction for Complex Immersive Spaces
Immersive rooms are not always built with perfectly flat walls. Projectors may need to cover corners, curved surfaces or angled architectural structures.
Geometry correction allows installers to reshape projected images so they align with the physical surfaces of the room.
4-Corner
Independent corner adjustment for basic image alignment.
Multi-Point
More detailed correction across large projection surfaces.
Grid Adjustment
Fine tuning for complex installation environments.
Curve Correction
Supports curved and non-flat projection surfaces.
Selecting Brightness for a Multi-Projector System
Projector brightness should be calculated according to the complete projection environment rather than simply selecting the highest lumen specification.
Throw Ratio and Lens Selection
Short Throw
Suitable for compact immersive rooms where projector installation depth is limited.
Standard Throw
Suitable for conventional exhibition rooms and general professional installations.
Long Throw
Suitable for large venues where projectors are installed farther from the projection surface.
Creating Panoramic and 360° Projection Rooms
Multi-projector systems can extend content across several surfaces to surround visitors with visual information.
Depending on the room design, projection can cover front walls, side walls, floors, ceilings or complete panoramic environments.
Where Multi Projector Blending Systems Are Used
Multi-Projector System Design Process
Measure the Room
Confirm wall dimensions, projection surfaces, ceiling height and installation positions.
Calculate Coverage
Determine required image width, throw ratio, projector quantity and overlap zones.
Select Equipment
Choose projector brightness, resolution, lens type and processing system.
Calibrate the System
Configure geometry, edge blending, color matching and synchronized playback.
Multi-Projector Immersive Solutions from SMX
SMX provides professional laser projector solutions for immersive rooms, digital exhibitions, museums, simulation systems, projection mapping and other multi-projector applications.
Projectors can be selected according to brightness, resolution, throw ratio and installation requirements.
For multi-projector systems, our team can help evaluate projector quantity, lens configuration, overlap areas and installation layout based on the dimensions of the project.
Planning a Multi-Projector Immersive Room?
Send us your room dimensions and projection requirements. Our team can help calculate projector quantity, throw ratio, brightness, overlap areas and installation configuration for your immersive projection project.
Room Dimensions • Projection Surface Size • Projection Distance • Ambient Light • Required Resolution • Number of Projection Surfaces
