| Brand Name: | SMX |
| Model Number: | MX-SL7000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |

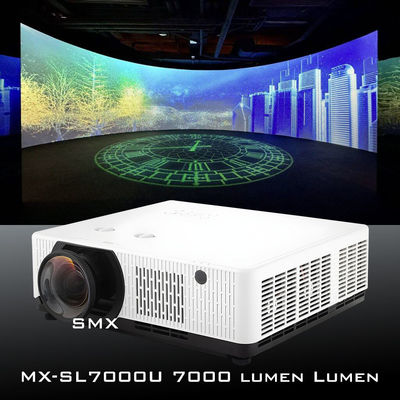

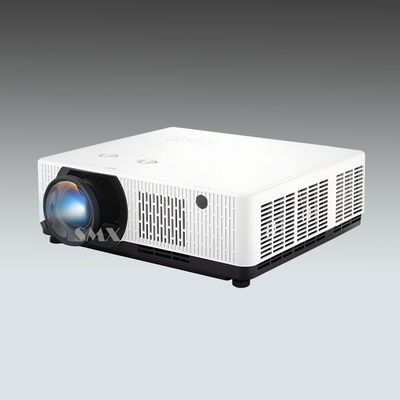

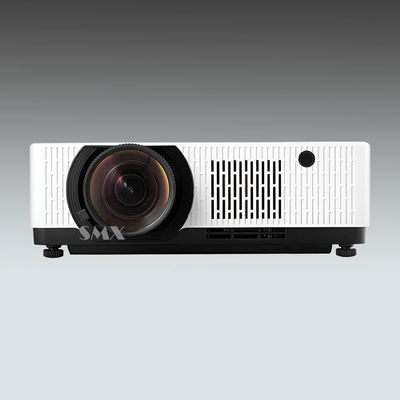

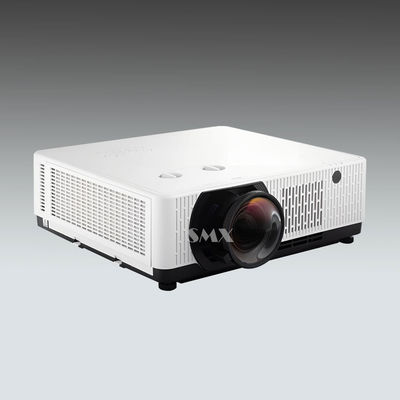

The MX-SL7000U WUXGA short-throw laser projector delivers exceptional brightness and versatility, making it ideal for professional installations. With 7,000 ANSI lumens and a laser light source lasting up to 20,000 hours, it's perfect for auditoriums, restaurants, gyms, and other large venues.
| Model No. | MX-SL7000U |
|---|---|
| Brightness | 7000 Lumens |
| Display Panel | 3x0.64" with MLA |
| Light Source | NICHIA LASER |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Lifetime | 20,000 hours (Full Normal/Normal mode) |
| Projection Lens | F: 1.7~1.8 f: 9.66mm-11.65mm Manual Zoom/Focus |
| Throw Ratio | 0.68 (wide)-0.82 (tele) |
| Zoom Ratio | 1.21 |
| Screen Size | 50-300 inches |
| Lens Shift | V: +50% to 0% H: ±20% |
| Contrast Ratio | 5,000,000:1 |
| Uniformity | 80% |
| Aspect Ratio | Native: 16:10 Compatible: 4:3/16:9 |
| Input/Output Ports |

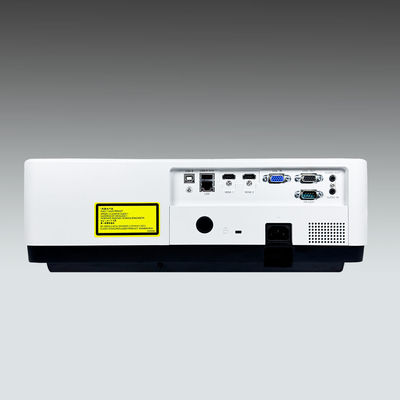

Input: VGA (x1), HDMI 1.4B (x2), USB-A (x1), USB-B (x1), RJ45 (x1), HD BaseT (optional), Audio in (3.5mm) Output: VGA (x1), Audio out (3.5mm) Control: RS232 (x1), RJ45 (x1), USB-B (for upgrade) |
| Audio | 16W Speaker (x1) |
| Other Functions |
Keystone Correction (V: ±15°, H: ±15°) Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune LAN Control (RoomView, AMX Discovery, PJ Link) |
| Display Resolution |
Computer Signal Input: VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz Video Signal Input: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Additional Features | 360° projection, Edge Blending |
| Accessories | Power cord, HDMI cable, Remote control |
| Manual Languages | Chinese, English |
This projector features lens shift capability, allowing vertical (+50% to 0%) and horizontal (±20%) image adjustment without moving the projector. This enables flexible installation and easy alignment for off-center or high-mounted setups.
The digital keystone correction (V: ±15°, H: ±15°) eliminates image distortion when the projector isn't perfectly aligned with the screen, ensuring a rectangular image from any angle.
Equipped with versatile connectivity options including HDMI, USB, VGA, and AV ports, this projector easily connects to laptops, gaming consoles, and media players for diverse applications.
