| Brand Name: | SMX |
| Model Number: | MX-ST4800U |
| MOQ: | 1 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000pcs/Monthly |
| Model | |
|---|---|
| Model No. | MX-ST4800U |
| Brightness (Ansi Lumen) | 4800 |
| Resolution | WUXGA |
| Overall Spec | |
|---|---|
| Light source Life time |
Light source: NICHIA LASER Full/Normal mode: 20000hrs ECO1 mode: 30000hrs(TBD) ECO2 mode: TBD |
| Projection Lens |
Lens Vendor: RICOH F: 1.6 f: 6.39mm Zoom/Focus: Manual Throw Ratio: 0.44:1 Screen size: 55-130 inch |
| CR |
Dynamic Contrast Ratio (FOFO): 5000,000:1 Native Contrast Ratio (FOFO): 350:1(Min) |
| Noise | Noise(dB): TGT: 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity: 80% |
| AR | Aspect Ratio: Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | |
|---|---|

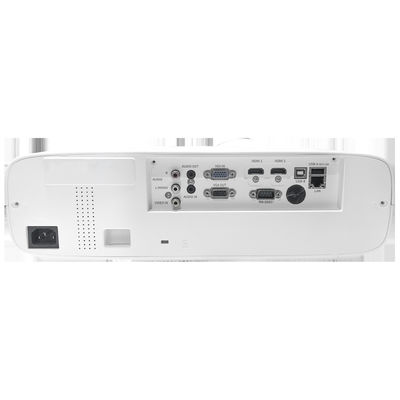

| Input |
VGA: *1 HDMI: *2 Video: *1 Audio in (mini jack,3.5mm): *1 Audio in (RCA×2) <Audio L/R>: *1 USB-A: *1 USB-B: *1(Display) RJ45: *1(Display) |
| Output |
VGA: *1 Audio out (mini-jack,3.5mm): *1 |
| Control |
RS232: *1 RJ45: *1 (Control) USB-B: *1 LAN: *1 |
| General Spec | |
|---|---|
| Audio | Speaker: 16W*1 |
| Keystone |
Keystone Correction (Lens@center): V: ±15° H: ±15° Pincushion/Barrel Correction 4 corners 6 Corner Geometry correction Grid image tune |
| LAN Control |
LAN Control-RoomView (Crestron): Yes LAN Control--AMX Discovery: Yes LAN Control--PJ Link: Yes |
| Others | 360° projection: Yes |
| Dimension&Weight | |
|---|---|
| MAX Dimensions (WxDxH mm) | 390*319*143; With lens protrusion |
| Net. Weight (KG) | 5.5Kg |
| Packaging (WxDxH mm) | 492*443*239 |
| Gross. Weight (KG) | ~7Kg |
| Accessory | |
|---|---|
| Manual Languages | Chinese, English |
| Standard Accessaries | Power cord, Remote control, HDMI |
