| Brand Name: | SMX |
| Model Number: | MX-STD5500U |
| MOQ: | 1pc |
| Price: | 1260usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model No. | MX-STD5500U |
| Brightness | |
| Brightness (ANSI Lumen) | 5500 |
| Resolution | WUXGA |
| Overall Specifications | |
| Light Source Lifetime | |
| Light Source | Laser |
| Normal mode | 20,000hrs |
| ECO1 mode | 30,000hrs(TBD) |
| Projection Lens | |
| Lens Vendor | RICOH |
| F | 1.6~1.76 |
| f | 19.158~23.018mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.37~1.65:1 |
| Zoom Ratio | 1.2x optics |
| Screen size | 30-300 inch |
| Contrast Ratio | |
| Dynamic Contrast Ratio | 5,000,000:1 |
| Noise | |
| Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | |
| Uniformity | 80% |
| Aspect Ratio | |
| Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |
| Terminal (I/O port) | |

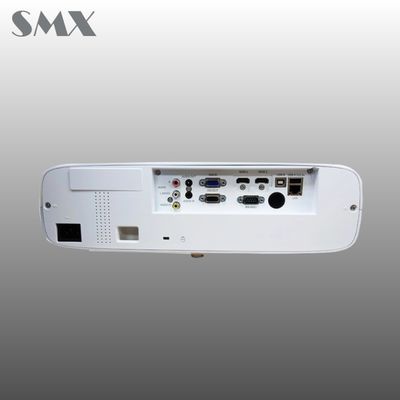

| Input | VGA, HDMI ×2, Video, Audio in ×2, USB-A, USB-B, RJ45 |
| Output | VGA, Audio out |
| Control | RS232, RJ45, USB-B, LAN |
| General Specifications | |
| Speaker | 16W×1 |
| Power Requirements | 100~240V@ 50/60Hz |
| Other Functions | |
| Keystone Correction | V: ±30° / H:±30° Pincushion/Barrel/4 Corner/6 Corner Geometry Correction/Grid Image Tune |
| LAN Control | Yes |
| Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Auto Ceiling | Yes |
| 360° projection | Yes |
| Dimensions & Weight | |
| Product (W×D×H mm) | 390×294×127 |
| Net Weight (KG) | 5 |
| Accessories | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote control, HDMI Cable |
