| Brand Name: | SMX |
| Model Number: | MX-VL820U |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |
| Model No. | MX-VL820U |
|---|---|
| Brightness (Lumen) | 8200 |
| Resolution | WUXGA |
| Light source | NICHIA LASER |
| Overall Specifications | |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source Lifetime |
Full Normal/Normal mode: 20000hrs ECO1 mode: 30000hrs ECO2 mode: 30000hrs |
| Projection Lens |
F: 1.58-2.02 f: 15.3mm-24.6mm Zoom/Focus: Manual Throw Ratio: 1.08 (wide)-1.76 (tele) Zoom Ratio: 1.6 Screen size: 30-300 inch Lens Shift: V:＋45%～0%, H:±21% |
| Contrast Ratio (FOFO) | 5000000:1 |
| Noise (dB) |
39dB (Normal) 31dB (ECO1) 29dB (ECO2) |
| Uniformity (Actual Min) | 80% |
| Aspect Ratio | Native:16:10, Compatible: 4:3/16:9 |

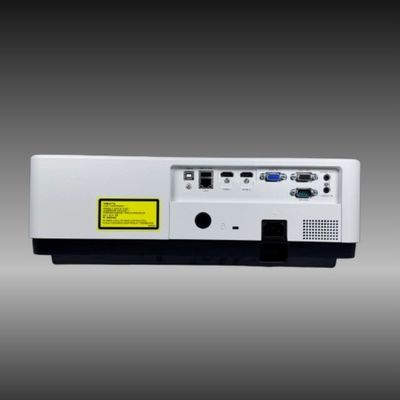

| Terminal (I/O port) | |
| Input |
VGA: *1 HDMI 1.4B(IN): *2 USB-A: *1 USB-B: *1 (Display) RJ45: *1 (Display) HD BaseT: *1(Optional) Audio in (mini jack,3.5mm): *1 |
| Output |
VGA: *1 Audio out (mini-jack,3.5mm): *1 |
| Control |
RS232: *1 RJ45: *1 (Control) USB-B: *1 (For upgrade) |
| General Specifications | |
| Audio | Speaker: 16W*1 |
| Dust filter | W/Filter, Filter Lifetime: 8000h |
| Power Consumption |
Power Requirements: 100~240V@ 50/60Hz Power Consumption (Normal) (Max): 425 Power Consumption (ECO1) (Max): 285 Power Consumption (ECO2) (Max): 235 ECO Standby Mode Power Consumption: <0.5W |
| Operating Temperature & Humidity |
Operating Temp.: 0m≤Altitude≤1700m, Ambient 0°C~50°C 1700m＜Altitude＜3000m, Ambient 0°C~40°C Operating humidity: 20-85% Store Temp.: -10 to 50°C High altitude: 0~3000m |
| Other Functions | |
| Keystone Correction |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD Languages | 26 languages including English, German, French, Spanish, Japanese, Chinese, etc. |
| LAN Control |
LAN Control-RoomView (Crestron): Yes LAN Control--AMX Discovery: Yes LAN Control--PJ Link: Yes |
| Scanning Frequency |
H-Synch Range: 15~100KHz V-Synch Range: 24~85Hz |
| Display Resolution |
Computer Signal Input: VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz Video Signal Input: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| SW setting |
Auto Setup: INPUT SEARCH,AUTO PC,Auto Keystone Blank: Yes Suspend: Yes(5 minutes no signal as default) Picture mode: Dynamic,Standard,Cinema,Colorboard,sim-DICOM,Blackboard(Green) Cooling time: 0s,normal,30s Auto Ceiling: Yes D-Zoom: 1~33 |
| Others |
360° projection: Yes Edge Blending: Yes |
| Dimensions & Weight | |
| Product Size (mm) | 405 (W)*358(D)*137(H) |
| Net Weight (KG) | ~7.9KG |
| Accessories | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord, HDMI cable, Remote control |
