| Brand Name: | SMX |
| Model Number: | MX-VL650U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model | MX-VL650U |
| Brightness | 6500 Lumens |
| Native Resolution | WUXGA (1920 x 1200) |
| Overall Specifications | |
| Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display |
| Light Source | |
| Lifetime (Normal mode) | 20000hrs |
| Lifetime (ECO1 mode) | 30000hrs |
| Lens | |
| F | 1.5~2.08 |
| f | 17.2~27.7mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.2(wide)-2.0(tele) |
| Zoom Ratio | 1.6 |
| Screen size | 30-300 inch |
| Lens Shift | V:＋60%～0%, H:±29% |
| Performance | |
| Contrast Ratio | 5000000:1 |
| Aspect Ratio | Native:16:10, Compatible: 4:3/16:9 |

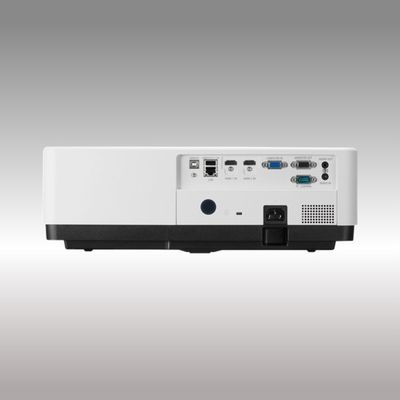

| Terminal (I/O Port) | |
| Input | VGA *1, HDMI 1.4B(IN) *2, USB-A *1, USB-B *1 (Display), RJ45 *1 (Display), Audio in *1 |
| Output | VGA *1, Audio out *1 |
| Control | RS232 *1, RJ45 *1 (Control), USB-B *1 (For upgrade) |
| General Specifications | |
| Audio | Speaker 16W*1 |
| Functions | |
| Keystone Correction | V: ±30°, H:±30°, Pincushion/Barrel Correction, 6 Corner Geometry correction, 4 Corner Correction, Grid image tune |
| 360° projection | Yes |
| Dimensions & Weight | |
| Dimensions (WxDxH mm) | 405 x 358 x 137 |
| Net Weight | ~7.9KG |
| Accessories | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord / Remote / HDMI Cable |
