7200 Lumens Laser Projector For Immersive Projection 360 Holographic Mapping System

Brand Name:	SMX
Model Number:	MX-VL720U
MOQ:	1
Payment Terms:	T/T,Western Union
Supply Ability:	10000/pcs per month

Detail Information

Product Description

Detail Information

Certification:

CE&ISO

Document:

Model:

MX-VL720U

Brightness:

7200 Lumen

Display Panel:

3x0.64” With MLA

Display Technology:

Liquid Crystal Display

Native Resolution:

WUXGA (1920 X 1200)

Light Source Life Time:

FullNormal/Normal Model:20000H;ECO1 Mode:30000H

Throw Ratio:

1.2(wide)-2.0(tele)

Lens Shift:

V:＋60%～0%、 H:±29%

Contrast Ratio (FOFO):

5000000:1

Keyston Correction (Lens@center):

V: ±30° H：±30° Pincushion/Barrel Correction 6 Corner Geometry Correction 4 Corner Correction Grid Image Tune

Computer Signal Input:

VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz

Packaging Details:

Packaging Box Dimensions (WxDxH mm):510 (W)*498(D)*260(H)

Supply Ability:

10000/pcs per month

Highlight:

Immersive Projection 7200 Lumen Projector

High Contrast 7200 Lumen Projector

High Contrast 3lcd short throw projector

Product Description

7200 Lumens Laser Projector For Immersive Projection 360 Holographic Mapping System

Transform any space into a stunning visual experience with our high-performance laser projector. Ideal for both home theaters and professional presentations, this advanced projector delivers breathtaking visuals with vibrant colors, deep contrasts, and ultra-crisp details.

Unlike traditional bulb-based projectors, this cutting-edge laser technology offers superior brightness, energy efficiency, and longevity. Experience the future of projection where every pixel shines with brilliance and every moment feels larger than life.

WUXGA Resolution (1920×1200)

Delivers high-definition video imagery with exceptional clarity and color accuracy. Maintains precise texture rendering even in large-screen projections up to 150 inches, eliminating pixelation common in lower resolutions.

500,000:1 High Contrast Ratio

Reduces ambient light interference for razor-sharp projection quality. Ensures crisp text and graphics remain clearly visible even in well-lit environments, eliminating the "washed-out" effect.

Technical Specifications

Brightness	7200 Lumens
Display Panel	3x0.64" with MLA
Display Technology	Liquid Crystal Display
Native Resolution	WUXGA (1920 x 1200)
Light Source Lifetime	20,000hrs (Full/Normal), 30,000hrs (ECO modes)
Projection Lens	RICOH Lens, 1.2-2.0 throw ratio, 1.6x zoom
Screen Size	30-300 inches
Contrast Ratio	5,000,000:1 (FOFO)
Noise Level	38dB (Normal), 30dB (ECO1), 28dB (ECO2)

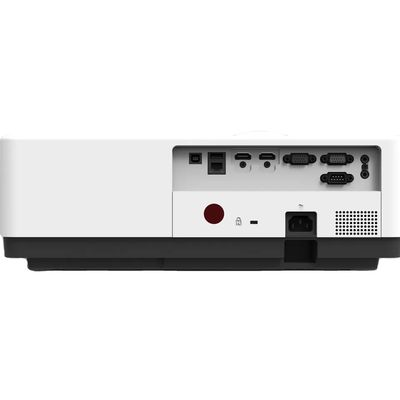

Input/Output Ports	VGA, HDMI 1.4B, USB-A/B, RJ45, HD BaseT (optional), audio in/out, RS232
Power Consumption	360W (Normal), 280W (ECO1), 230W (ECO2)
Dimensions	405 x 358 x 137mm (WxDxH)
Weight	7.9kg (net), 10.4kg (gross)

Projection Applications

U-Shape Projection

L-Shape Projection

Dome Projection

Special Shape Projection
