| Brand Name: | SMX |
| Model Number: | MX-LK7200K |
| MOQ: | 1Pc |
| Price: | 3620usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |
| Model No. | MX-LK7500 | |
|---|---|---|
| Brightness | ||
| Brightness | 7500Lumen | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Resolution | 4K | |
| Light source Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | ||
| Lens Vendor | RICOH Lens | |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+0%~66% / H:±29% | |
| CR | ||
| Contrast Ratio | 5000000:1 | |
| Noise | ||
| Noise(dB) TBD | 38dB(Normal) / 30dB(ECO1) / 28dB(ECO2) | |
| Uniformity | ||
| Uniformity-JBMA | 80% | |
| AR | ||
| Aspect Ratio | Compatible: 4:3/16:10 | |

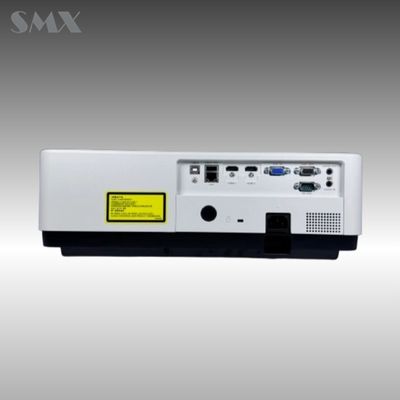

| Terminal(I/O port) | ||
| Input | ||
| HDMI 2.1(IN) | *2 | |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| RS232C | *1 | |
| Output | ||
| Audio port | S/PDIF*1 | |
| Audio out (mini jack,3.5mm) | *1 | |
| Control | ||
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life Time | 8000h | |
| Power Consumption | ||
| Power Requirements | 100~240V@ 50/60Hz | |
| Power Consumption (Normal) (Max) | 435 | |
| Power Consumption (ECO)(Max) | 240 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | ||
| Operating Temp. | 0 to 40°C | |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Function | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° |
| 4 Corner Correction | ||
| OSD | Languages | English, Chinese |
| LAN Control | LAN Control-- PJ Link | Yes |
| Scanning Frequency | ||
| H-Synch Range | 15~100KHz | |
| V-Synch Range | 24~85Hz | |
| Display Resolution | ||
| Video Signal Input | up to 3840x2160/60Hz | |
| SW Setting | ||
| Voice control | Near-field RC voice | |
| Bluetooth | Bluetooth Version 5.0 | |
| lamp mode | Normal/ECO | |
| Light source brightness | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Energy-efficient | |
| Dimension&Weigh | ||
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Packaging Box Dimensions (WxDxH mm) | 510 (W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power Cord, Remote control, HDMI Cable | |
