| Brand Name: | SMX |
| Model Number: | MX-SL6000U |
| MOQ: | 1pc |
| Price: | 2980usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model | MX-SL6000U |
|---|---|
| Brightness | |
| Brightness(Lumen) | 6000 |
| Overall Spec | |
| Panel |
Display Panel: 3x0.64" with MLA
Display Technology: Liquid Crystal Display
Native Resolution: WUXGA (1920 x 1200)
|
| Light source Lifetime |
Normal mode: 20000hrs
ECO1 mode: 30000hrs
|
| Projection Lens |
F: F1.6
f: 6.39mm
Zoom/Focus: Manual
Throw Ratio: 0.44:1
Screen size: 55-300 inch
|
| CR | Contrast Ratio (FOFO): 5000000:1 |
| AR | Aspect Ratio: Native:16:10 / Compatible: 4:3/16:9 |

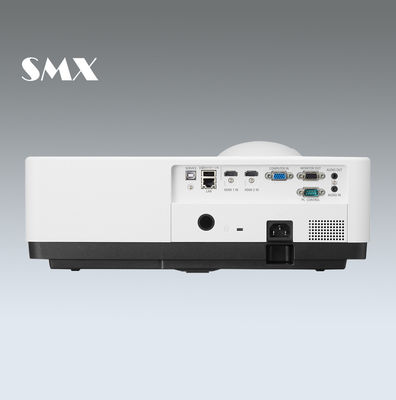

| Terminal(I/O port) | |
| Input |
VGA: *1
HDMI 1.4B(IN): *2
USB-A: *1
USB-B: *1(Display)
RJ45: *1 (Display)
Audio in (mini jack,3.5mm): *1
|
| Output |
VGA: *1
Audio out (mini-jack,3.5mm): *1
|
| Control |
RS232: *1
RJ45: *1 (Control)
USB-B: *1 (For upgrade)
|
| General Spec | |
| Audio | Speaker: 16W*1 |
| Other Functions |
Keystone Correction (Lens@center): V: ±15° H:±15°
Pincushion/Barrel Correction
6 Corner Correction
4 Corner Correction
Grid image tune
|
| Others | 360° projection: Yes |
| Dimension & Weight | |
| MAX Dimensions (WxHxD mm) | 405(W)×404(D)×164(H) |
| Net. Weight (KG) | 8.1kg |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote control |
