| Brand Name: | SMX |
| Model Number: | MX-LK7200 |
| MOQ: | 1Pc |
| Price: | 3620usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |

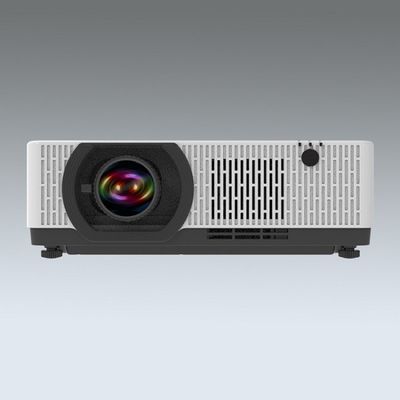

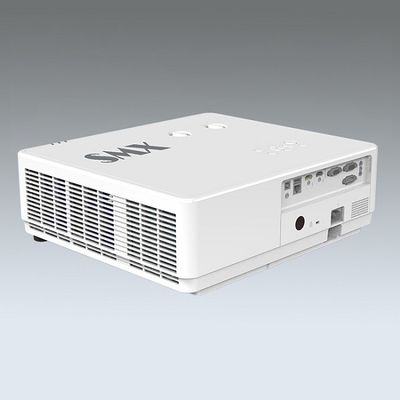

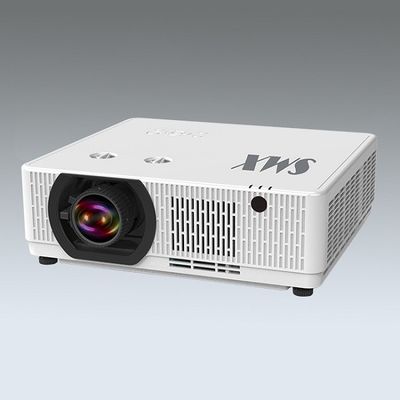

The SMX MX-LK7200 is a 7200-lumen 4K laser projector for home cinema. It is a high-brightness projector designed to deliver stunning 4K resolution visuals with the added benefits of laser light source technology.
A 7200-lumen 4K laser projector is an excellent choice for home cinema enthusiasts seeking high-quality, large-screen entertainment with vibrant colors, sharp details, and long-lasting performance.
The projector features a lens shift function, allowing the image to be seamlessly shifted without distortion through the menu. Users can easily adjust the position of the projected image. The maximum vertical adjustment range is 60% (upward), and the maximum horizontal adjustment range is ±29%.
Keystone correction is a feature found in many projectors that allows for the adjustment of distorted images, typically caused when the projection surface is not perpendicular to the projector. By correcting the keystone effect, the image can be displayed properly without distortion.

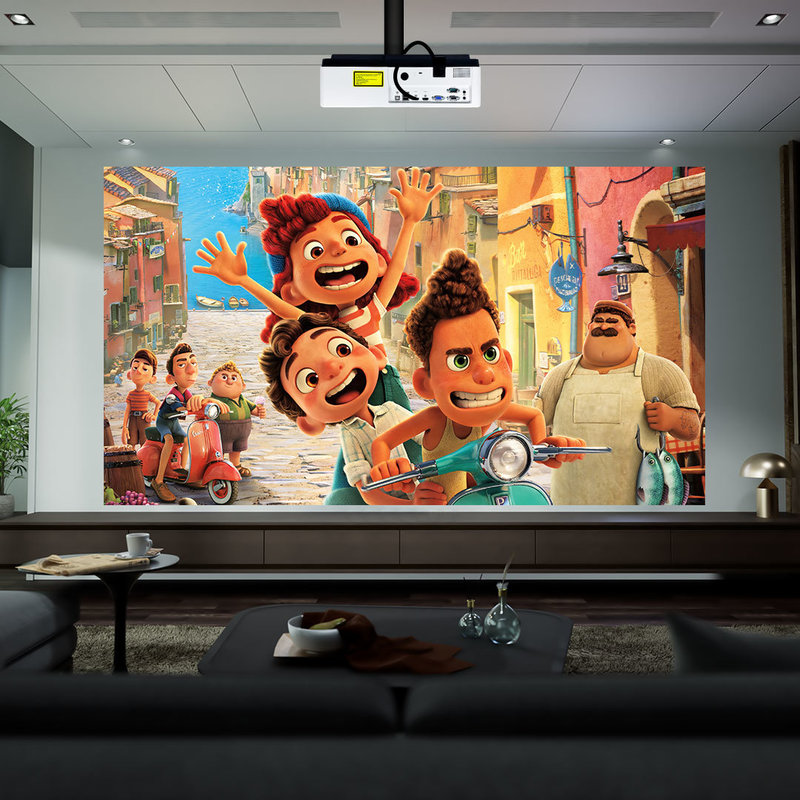

4K Home Cinema, Entertainment, Simulation and Training, Gaming, Education, Business Presentations
| Model No. | MX-LK7200 |
|---|---|
| Brightness | |
| Brightness | 7200Lumen |
| Overall Spec | |
| Panel | Display Panel: 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display |
| Resolution | 4K Enhancement |
| Light source Lifetime | Normal mode: 20000hrs ECO mode: 30000hrs |
| Projection Lens | |
| Lens Vendor | RICOH Lens |
| F | 1.5~2.08 |
| f | 17.2~27.7mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.2(wide)-2.0(tele) |
| Zoom Ratio | 1.6 |
| Screen size | 30-300 inch |
| Lens Shift | V:+0%~66% / H:±29% |
| CR | Contrast Ratio: 5000000:1 |
| Noise | Noise(dB) TBD: 38dB(Normal) / 30dB(ECO1) / 28dB(ECO2) |
| Uniformity | Uniformity-JBMA: 80% |
| AR | Aspect Ratio: Compatible: 4:3/16:10 |

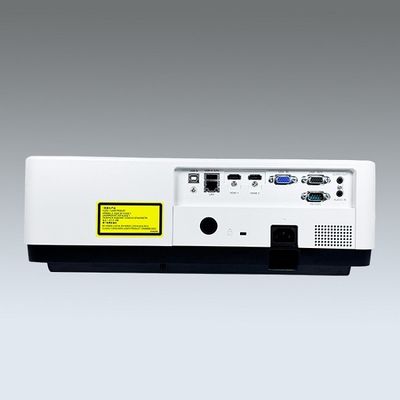

| Terminal(I/O port) | |
| Input |
HDMI 2.1(IN): *2 USB-A: *2 RJ45: *1 HD BaseT: *1(Optional) RS232C: *1 |
| Output |
Audio port: S/PDIF*1 Audio out (mini jack,3.5mm): *1 |
| Control | RJ45: *1 (Control) |
| General Spec | |
| Audio | Speaker: 16W*1 |
| Dust filter | W/Filter |
| Filter Lifetime | 8000h |
| Power Consumption |
Power Requirements: 100~240V@ 50/60Hz Power Consumption (Normal) (Max): 435 Power Consumption (ECO)(Max): 240 ECO Standby Mode Power Consumption: <0.5W |
| Other Functions | |
| Keystone | Keystone Correction (Lens@center): V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages: English, Chinese |
| LAN Control | LAN Control-- PJ Link: Yes |
| Display Resolution | Video Signal Input: up to 3840x2160/60Hz |
| Dimension&Weight | |
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) |
| Net. Weight (KG) | ~7.9KG |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power Cord, Remote control |
