| Brand Name: | SMX |
| Model Number: | MX-LK7200 |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |
| Model No. | MX-LK7200 |
|---|---|
| Brightness | |
| Brightness | 7200Lumen |
| Overall Specifications | |
| Panel | Display Panel: 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display |
| Resolution | 4K Enhancement |
| Light source Lifetime | Normal mode: 20000hrs ECO mode: 30000hrs |
| Projection Lens | |
| Lens Vendor | RICOH Lens |
| F | 1.5~2.08 |
| f | 17.2~27.7mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.2(wide)-2.0(tele) |
| Zoom Ratio | 1.6 |
| Screen size | 30-300 inch |
| Lens Shift | V:+0%~66% / H:±29% |
| CR | Contrast Ratio: 5000000:1 |
| Noise | Noise(dB) TBD: 38dB(Normal) / 30dB(ECO1) / 28dB(ECO2) |
| Uniformity | Uniformity-JBMA: 80% |
| AR | Aspect Ratio: Compatible: 4:3/16:10 |

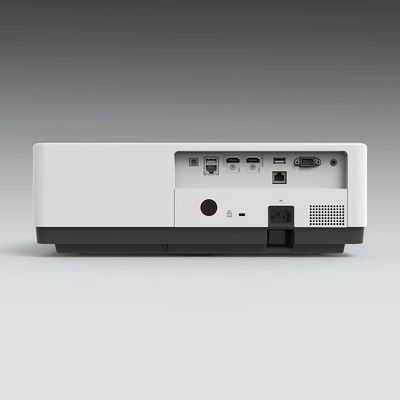

| Terminal (I/O port) | |
| Input |
HDMI 2.1(IN): *2 USB-A: *2 RJ45: *1 HD BaseT: *1(Optional) RS232C: *1 |
| Output |
Audio port: S/PDIF*1 Audio out (mini jack,3.5mm): *1 |
| Control | RJ45: *1 (Control) |
| General Specifications | |
| Audio | Speaker: 16W*1 |
| Dust filter | W/Filter |
| Filter Lifetime | 8000h |
| Other Functions | |
| Keystone | Keystone Correction (Lens@center): V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages: English, Chinese |
| LAN Control | LAN Control-- PJ Link: Yes |
| Display Resolution | Video Signal Input: up to 3840x2160/60Hz |
| Dimensions & Weight | |
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) |
| Net. Weight (KG) | ~7.9KG |
| Accessories | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power Cord, Remote control, HDMI Cable |
