| Brand Name: | SMX |
| Model Number: | MX-WPL500U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model Information | |
|---|---|
| Model No. | MX-WPL500U |
| Brightness | |
| Lumen | 5000 |
| Display Specifications | |
| Panel | 3x0.63" with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920x1200) |
| Light Source | |
| Lifetime (Normal mode) | 20,000 hours |
| Lifetime (ECO2 mode) | 30,000 hours |
| Projection Lens | |
| F | F1.7 |
| f | 2.94mm |
| Lens Vendor | RICOH |
| Zoom/Focus | Manual |
| Throw Ratio | 0.235:1 |
| Screen size | 80-120" |
| Image Quality | |
| Contrast Ratio | 5,000,000:1 |
| Aspect Ratio | Native: 16:10 Compatible: 4:3/16:9 |
| Connectivity | |

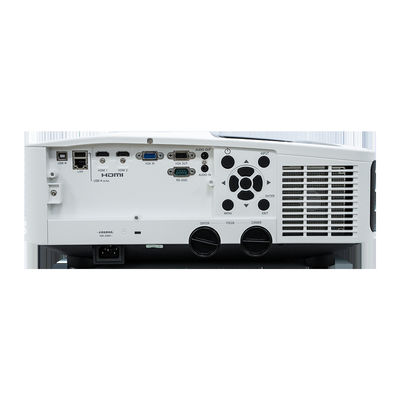

| Input | VGA*1, HDMI*2, USB-A*, USB-B*1 (Display), RJ45*1 (Display), Audio in*1 |
| Output | VGA*1, Audio out*1 |
| Control | RS232*1, RJ45*1, USB-B *1 |
| Audio | |
| Speaker | 16W*1 |
| Adjustment Features | |
| Keystone Correction | V: ±5° H:±5° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| Network Control | |
| LAN Control (Crestron RoomView) | Yes |
| LAN Control (AMX Discovery) | Yes |
| LAN Control (PJ Link) | Yes |
| Supported Resolutions | |
| Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Special Features | |
| 360° projection | Yes |
| Physical Dimensions | |
| Product Size (WxHxD mm) | 520x435x168 |
| Net Weight (KG) | 11 |
| Accessories | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote control |
