| Brand Name: | SMX |
| Model Number: | MX-WPL500U |
| MOQ: | 1 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 20000 pcs/ monthly |
| Model Number | MX-WPL500U |
|---|---|
| Brightness | 5000 Lumens |
| Display Panel | 3x0.6" with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light Source Lifetime | 20,000 hrs (Normal) / 30,000 hrs (ECO) |
| Projection Lens | F1.7, 2.94mm (RICOH) |
| Throw Ratio | 0.235:1 |
| Screen Size | 80-150" |
| Contrast Ratio | 5,000,000:1 |
| Noise Level | 37dB (Normal) / 30dB (ECO) |
| Uniformity | 80% |
| Aspect Ratio | Native:16:10 / Compatible: 4:3/16:9 |

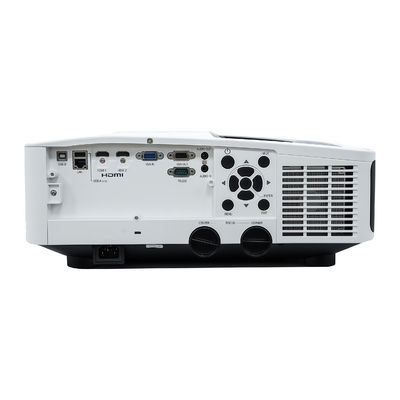

| Connectivity |
Input: VGA (x1), HDMI 1.4B (x2), USB-A (x1), USB-B (x1), RJ45 (x1), Audio in (3.5mm) Output: VGA (x1), Audio out (3.5mm) Control: RS232 (x1), RJ45 (x1), USB-B (x1 for upgrade) |
| Audio | 16W Speaker (x1) |
| Keystone Correction | V: ±5°, H:±5° with 6 Corner Geometry correction |
| LAN Control | RoomView (Crestron), AMX Discovery, PJ Link |

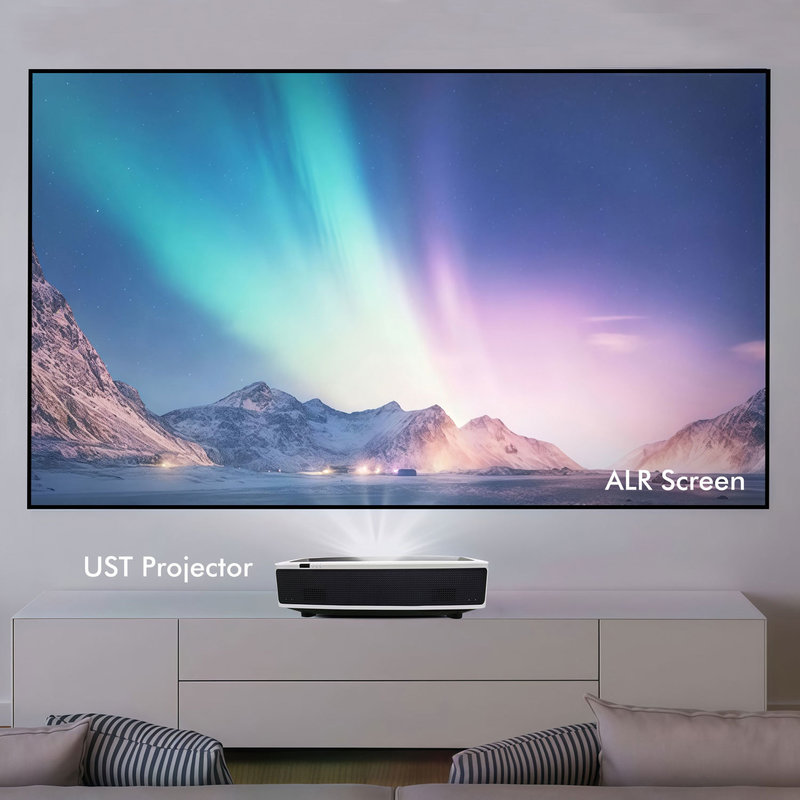

| Special Features | 360° projection capability |
| Dimensions | 520 x 435 x 168 mm (W x H x D) |
| Weight | 11 kg (Net) |
| Accessories | Power cord, Remote control, HDMI Cable |
| Manual Languages | Chinese, English |
