6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation

6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation

Brand Name: SMX
Model Number: MX-LS6000U
MOQ: 1pc
Price: 850usd/pc
Payment Terms: T/T,Western Union
Supply Ability: 20000pcs/Monthly
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO,CE,RoHS
Brightness:
6000 Lumens
Resolution:
1920x1200
Contrast Ratio:
15000:1
Projection Size:
40-200 Inches
Speaker:
Built-in 10W
Aspect Ratio:
16:9
Display Technology:
LCD
LAN Control:
Yes
Packaging Details:
Carton
Supply Ability:
20000pcs/Monthly
Highlight:

6000 Lumen Hd Multimedia Projector

,

6000 Lumen 4k multimedia projector

,

3LCD Hd Multimedia Projector

Product Description

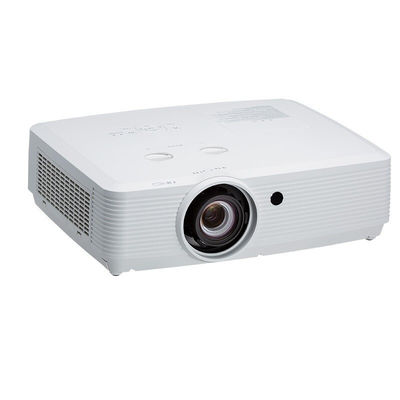

SMX MX-LS6000U 6000 Lumen 3LCD Multimedia Projector

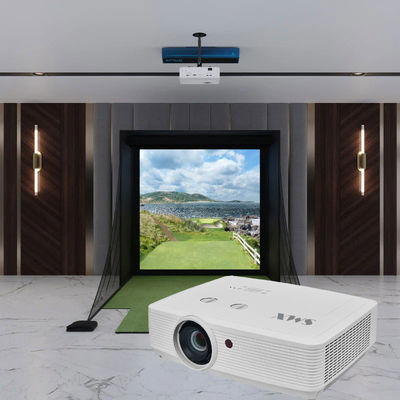

High-performance WUXGA projector specifically engineered for golf simulation applications, delivering exceptional brightness and image clarity.
Product Overview
The SMX MX-LS6000U is a top-tier 3LCD projector designed specifically for golf simulation environments. With 6000 lumens of brightness, this projector ensures crystal-clear image quality even in well-lit spaces. The WUXGA resolution (1920x1200 pixels) delivers sharp, detailed visuals essential for capturing the precision and intricacies of golf simulations.
Key Specifications
Model Number MX-LS6000U
Brightness 6000 Lumens
Native Resolution WUXGA (1920 x 1200)
Display Technology 3LCD Liquid Crystal Display
Lamp Lifetime 3000H (Normal) / 4000H (ECO)
Contrast Ratio 15000:1 (with IRIS & ECO mode)
Noise Level ECO: MAX 33.5dB, Normal: 41dB
Optical Performance
Zoom Ratio 1.6x optics
Screen Size 40" to 300" (1.103m to 13.705m)
Lens Shift Vertical ±45% (Manual)
Lens Shift Horizontal ±10% (Manual)
Keystone Correction V: ±30° (auto+manual), H: ±15° (manual), Corner Keystone
Connectivity & Ports
Input Ports:
  • VGA ×2
  • HDMI ×2 (One compatible with MHL)
  • Audio in (mini jack, 3.5mm) ×1
  • Audio in (L/R) RCA ×2
  • YCbCr/Component ×1
  • Video ×1
  • S-Video ×1
  • USB-A ×1 (Memory viewer & WiFi Dongle support)
Output & Control Ports:
  • VGA ×1
  • Audio out (mini-jack, 3.5mm) ×1
  • USB-B ×1 (Display)
  • USB-B ×1 (for upgrade)
  • RJ45 ×1 (Display)
  • RJ45 ×1 (Control)
  • RS232 ×1
Audio & Network Features
Built-in 10W speaker for integrated audio performance
Comprehensive LAN Control support, including RoomView (Crestron), AMX Discovery, and PJ Link protocols
Advanced Technologies
3LCD Display Technology
3LCD technology delivers sharp, clear images with accurate color reproduction, making it ideal for applications where color accuracy and image quality are critical, such as professional installations and simulation environments.
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 0
WUXGA High Resolution
1920x1200 resolution provides exceptional detail and clarity for golf simulation projection.
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 1
Integrated Audio System
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 2
Lens Shift Capability
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 3
Keystone Correction
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 4
Network Control Interface
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 5
Comprehensive Connectivity
6000 Lumen 3LCD Multimedia Projector with WUXGA Resolution and Built-in 10W Speaker for Golf Simulation 6
Included Accessories
  • Power cord
  • VGA cable
  • Remote control
Manual available in Chinese and English
