25000 Lumens WUXGA 3LCD Dual Color Laser Projector 3D Mapping Large Venue Display
Product Details
| Display Technology: | 3LCD | Keystone Correction: | Yes |
|---|---|---|---|
| Lenses: | Rechangeable Motorized Lenses | Lens Shift: | Yes |
| Light Source: | Dual-Color Laser | Brightness: | 25000 Lumens |
| Resolution: | WUXGA | Control: | Remote |
| Brightness: | 25000 ANSI Lumens | Technology: | 3LCD Dual-Color Laser |
| Application: | Cultural Tourism, 3D Projection Mapping | ||
| Highlight |
25 000 lumens WUXGA 3LCD projector,dual-color laser mapping projector,large venue 3D mapping projector |
||
Product Description

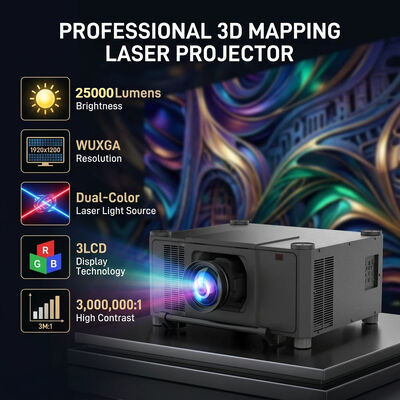

SMX MX-X25000U 25,000 Lumens WUXGA 3LCD Dual-Color Laser Projector
Engineered for large-scale engineering applications, cultural tourism night tours, and high-impact 3D projection mapping. Powered by advanced 3LCD dual-color laser technology to deliver high brightness without compromising rich color saturation.
Key Features & Performance Highlights
Dual-Color Laser (Red & Blue) Optical Architecture
By combining red and blue laser light sources with 3LCD projection technology, the MX-X25000U significantly enhances red color reproduction and overall color gamut coverage. It overcomes the color degradation common in high-brightness projection, ensuring stunningly vibrant visual experiences.
25,000 ANSI Lumens Extreme Output
Designed to perform in high ambient light environments and over extended throw distances. Ideal for outdoor facades, massive indoor auditoriums, and arena-scale installations that require uncompromised clarity and punch.
Built-in Geometry Correction & Edge Blending
Supports multi-channel edge blending, corner keystone correction, and curved surface adjustment. Enables effortless, seamless multi-projector stitching across spherical, cylindrical, or irregular projection surfaces.
Dust-Resistant Optical Engine & 360-Degree Installation
Equipped with a sealed optical system designed for IP5X dust protection, extending maintenance intervals. Flexible 360-degree installation allows portrait mode and ceiling or floor setups for complex creative layouts.

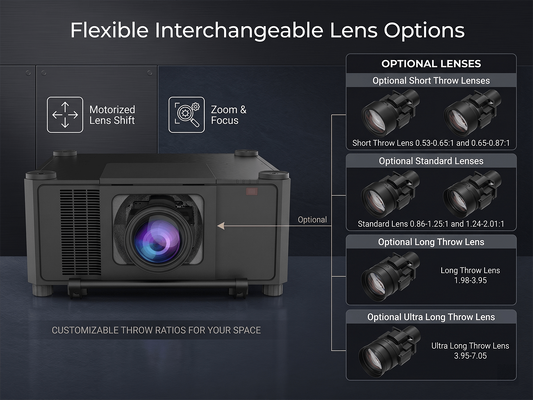

Rechangeable Lenses
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model | SMX MX-X25000U |
| Display Technology | 3LCD (3 x 0.76" Inorganic LCD Panels) |
| Light Source | Dual-Color Laser (Red & Blue Diodes) |
| Brightness | 25,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 x 1200 pixels, 16:10) |
| Dynamic Contrast Ratio | 5,000,000:1 |
| Light Source Life | 20,000 Hours (Standard) / 30,000 Hours (Eco Mode) |
| Lens Shift | Motorized Vertical ±60%, Horizontal ±30% |
| Inputs & Connectivity | HDMI x 2, DisplayPort x 1, 3G-SDI in/out, DVI-D, HDBaseT, LAN (RJ45), RS-232C |
| Operating Mode | 360-Degree Free Orientation, Portrait Mode Supported |
Target Engineering Applications

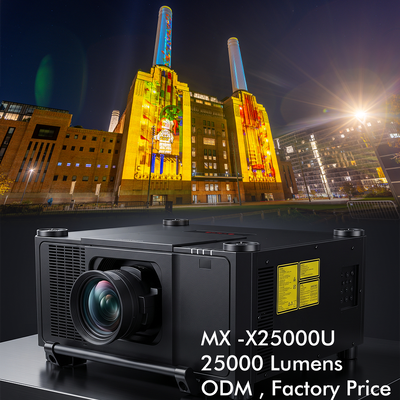

- Outdoor Building & Architectural Mapping: High-power output capable of illuminating complex facade structures.
- Cultural Tourism Nighttime Shows: Rich red color fidelity ensures realistic projections for theme parks and outdoor cultural displays.
- Large Auditoriums & Convention Centers: Delivers sharp text and vibrant visuals across large format screens.
- Immersive Museums & Digital Art Spaces: Seamless edge-blending creates fully immersive multi-channel wall and floor projection environments.
Partnering with SMX Projector
As an original projector manufacturer, SMX provides direct factory prices, OEM/ODM customization options, optional interchangeable lenses, and custom flight cases for commercial and engineering system integrators worldwide.
Product Highlights
Engineered with 25,000 lumens of 3LCD dual-color laser output, this 3D Mapping Projector delivers WUXGA clarity for cultural tourism and projection mapping. Interchangeable motorized lenses, remote control and wide lens shift make large-scale landmark displays efficient.
