25000 Lumens 3D Mapping Projector WUXGA 3LCD Dual Color Laser Flexible Lens Options
Product Details
| Display Technology: | 3LCD | Keystone Correction: | Yes |
|---|---|---|---|
| Lenses: | Rechangeable Motorized Lenses | Lens Shift: | Yes |
| Light Source: | Dual-Color Laser | Brightness: | 25000 Lumens |
| Resolution: | WUXGA | Control: | Remote |
| Contrast: | 5,000,000:1 | Install: | 360° Installation |
| Technology: | 3LCD Dual-Color Laser | Lenses: | Flexible Lens Options |
| Connectivity: | Multiple Digital Inputs | Application: | Education, Corporate Installation |
| Highlight |
3D mapping projector with 25000 lumens,WUXGA 3LCD dual color laser projector,3D mapping projector with flexible lens |
||
Product Description

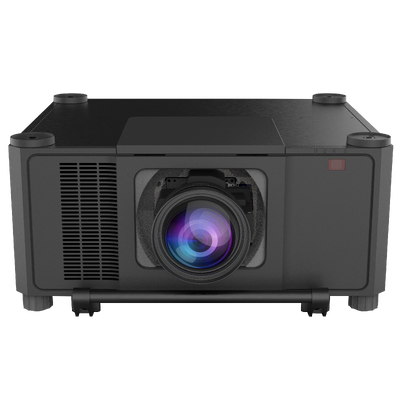

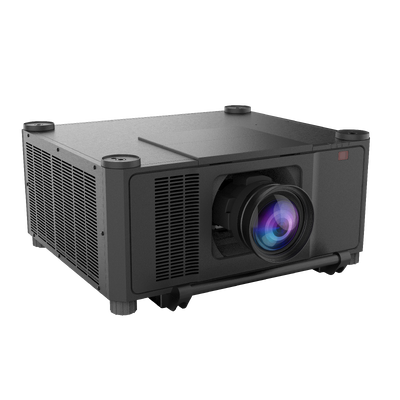

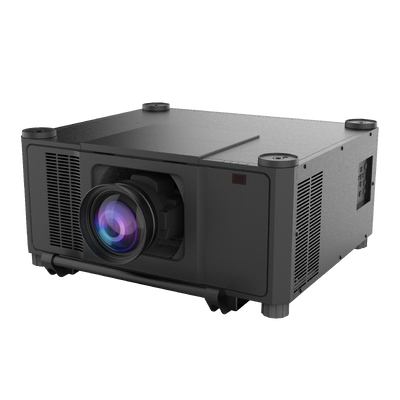

SMX MX-X25000U 25,000 Lumens WUXGA 3LCD Dual-Color Laser Projector
The SMX MX-X25000U is a powerful 25,000-lumen 3LCD RB laser projector designed for professional installation in higher education and corporate environments. This projector offers a wide range of digital inputs, allowing for seamless connections to computers and high-definition devices. It provides flexibility in design and installation with a complete selection of optional motorized lenses, including lens shift, focus, and zoom, as well as the capability for 360° installations.
Additionally, the HDBaseT input facilitates a single connection for uncompressed full HD digital video, audio, Ethernet power, and various control signals. An HDBaseT Repeater allows for cascading of the signal, making it ideal for edge-blending or stacking applications.
Key Specs:
-
Brightness: 25,000 ANSI Lumens
-
Light Source: Dual-Color Laser (Red & Blue) + 3LCD Optics
-
Native Resolution: WUXGA (1920 × 1200), 16:10
-
Dynamic Contrast Ratio: 5,000,000:1
-
Light Source Life: 20,000 Hours (Normal) / 30,000 Hours (Eco)
-
Lens Options: Fully Motorized Interchangeable Lenses (Optional)
Key Features & Performance Highlights
Dual-Color Laser + 3LCD Technology: Unmatched Color & Precision
Unlike conventional single-color laser projectors, the MX-X25000U incorporates dedicated red and blue laser diodes combined with advanced 3LCD optical processing. This dual-light architecture achieves an expansive color gamut, delivering vibrant reds and natural color fidelity without sacrificing the intense 25,000-lumen brightness required for massive screens.
25,000 Lumens Extreme Brightness for Large-Scale Displays
Engineered to conquer high ambient light and long throw distances. Whether illuminating a stadium screen, an auditorium, or an outdoor building facade, the MX-X25000U delivers vivid, high-impact visuals that hold the audience's attention.
Pro-Grade Blending & Geometric Correction
Built-in hardware edge blending, multi-point geometric adjustment, and curved-surface correction enable seamless multi-projector stitching. Achieve massive continuous canvases on flat, cylindrical, spherical, or irregular surfaces with ease.
Dust-Resistant Optical Engine & 360-Degree Installation
Equipped with a sealed optical system designed for IP5X dust protection, extending maintenance intervals. Flexible 360-degree installation allows portrait mode and ceiling or floor setups for complex creative layouts.
Rechangeable Lenses
Compatible with a full range of optional motorized lenses (from short throw to long throw). Equipped with powered zoom, focus, and broad memory lens shift (V: ±60%, H: ±30%) to seamlessly fit any installation distance or venue geometry.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model | SMX MX-X25000U |
| Display Technology | 3LCD (3 x 0.76" Inorganic LCD Panels) |
| Light Source | Dual-Color Laser (Red & Blue Diodes) |
| Brightness | 25,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 x 1200 pixels, 16:10) |
| Dynamic Contrast Ratio | 5,000,000:1 |
| Light Source Life | 20,000 Hours (Standard) / 30,000 Hours (Eco Mode) |
| Lens Shift | Motorized Vertical ±60%, Horizontal ±30% |

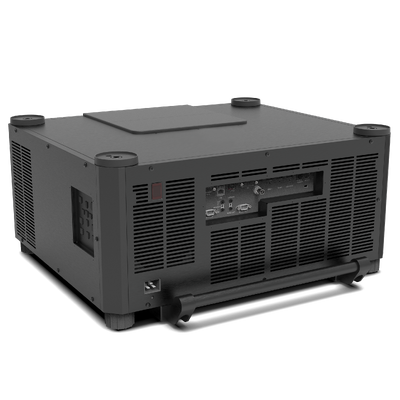

| Inputs & Connectivity | HDMI x 2, DisplayPort x 1, 3G-SDI in/out, DVI-D, HDBaseT, LAN (RJ45), RS-232C |
| Operating Mode | 360-Degree Free Orientation, Portrait Mode Supported |
Target Engineering Applications
Outdoor Building & Landmark Mapping
High-luminance projection technology that transforms architectural facades into immersive visual displays.
Cultural Tourism & Nighttime Light Shows
Reliable, continuous operation with excellent red color reproduction for outdoor parks and theme shows.
Large Auditoriums & Dome Theaters
Crisp WUXGA resolution with motorized lens shift capabilities to effortlessly accommodate large curved or flat screens.
Immersive Digital Art Exhibitions & Museums
Seamless multi-channel edge blending for panoramic projections that fill entire rooms.
Why Partner with SMX Projector?
-
Direct Factory Manufacturer: Commercial and large-venue projection technology provider.
-
OEM & ODM Solutions: Customizable chassis branding, firmware UI, lens bundles, and specialized shipping cases for global partners.
-
Rigorous Quality Control: Fully sealed optical engine design ensuring IP5X dust protection and stable 24/7 continuous operation.
-
Global Technical Support: Engineering documentation, throw distance calculators, and comprehensive warranty support.
Ready to Upgrade Your Large Venue Projection Project?
Contact our engineering team today to receive a customized projection distance calculation, full optical datasheet, or competitive factory quote.
Product Highlights
Featuring a 25,000-lumen 3LCD dual-color laser engine and WUXGA resolution, this 3D Mapping Projector offers 5,000,000:1 contrast for corporate and education installations. Flexible lens options and wide lens shift deliver bright, color-accurate imagery across large venues.
