| Brand Name: | SMX |
| Model Number: | MX-SL6000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |
| Model | MX-SL6000U |
|---|---|
| Brightness | |
| Brightness (Lumen) | 6000 |
| Overall Spec | |
| Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light Source | |
| Normal mode | 20000hrs |
| ECO1 mode | 30000hrs |
| ECO2 mode | 30000hrs |
| Lens | |
| Lens Vendor | RICOH |
| F | F1.6 |
| f | 6.39mm |
| Zoom/Focus | Manual |
| Throw Ratio | 0.44:1 |
| Screen size | 55-300 inch |
| Contrast Ratio (FOFO) | 5000000:1 |
| Noise(dB) | 37dB (Normal) 27dB (ECO) |
| Uniformity(Actual Min) | 80% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

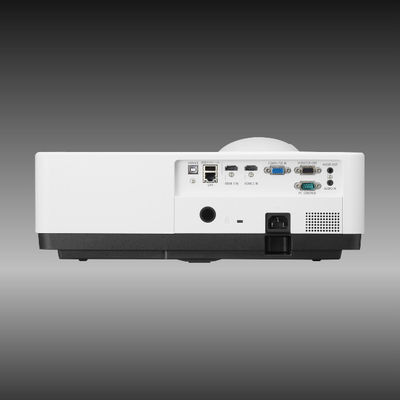

| Terminal (I/O port) | |
| Input | VGA *1 HDMI 1.4B(IN) *2 USB-A *1 USB-B *1(Display) RJ45 *1 (Display) Audio in (mini jack,3.5mm) *1 |
| Output | VGA *1 Audio out (mini-jack,3.5mm) *1 |
| Control | RS232 *1 RJ45 *1 (Control) USB-B *1 (For upgrade) |
| General Spec | |
| Speaker | 16W*1 |
| Dust filter | W/Filter |
| Filter Life time | 8000h |
| Power Consumption | |
| Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 360 |
| Power Consumption (ECO1) (Max) | 280 |
| Power Consumption (ECO2) (Max) | 230 |
| ECO Standby Mode Power Consumption | <0.5W |
| Temp. & Humidity | |
| Operating Temp. | 0 to 40°C |
| Operating Humidity. | 20-80% |
| Store Temp. | -10 to 50°C |
| High altitude | 0~3000m |
| Other Functions | |
| Keystone Correction | V: ±15° H:±15° Pincushion/Barrel Correction 6 Corner correction 4 Corner Correction Grid image tune |
| OSD Languages | 26 languages |
| LAN Control | LAN Control-RoomView (Crestron) LAN Control--AMX Discovery LAN Control--PJ Link |
| Scanning Frequency | H-Synch Range: 15~100KHz V-Synch Range: 24~85Hz |
| Display Resolution | Computer Signal Input: VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz Video Signal Input: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote control, HDMI Cable |
