| Brand Name: | SMX |
| Model Number: | MX-X12000U |
| MOQ: | 1 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000pcs/monthly |
| Model | MX-X10000U |
|---|---|
| Brightness (ANSI Lumens) | 10000 lumen |
| Light source | Laser |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source Life time | Normal mode: 20000hrs ECO mode: 20000hrs |
| Projection Lens | Zoom Lens |
| Zoom/Focus | Manual |
| Throw Ratio(16:10) | 1.46-2.95 |
| F#(Wide-Tele) | 1.7~2.37 |
| f(mm) | 24.4-48.6 |
| Zoom Ratio | 2 |
| Screen size | 40-500 inch |
| Weight | Approx 0.8kg |
| Lens Shift V | +50%,-10% |
| Lens Shift H | ±20% |
| Contrast Ratio(Min) | 100000:1 |
| Noise(dB) | Normal(90%): 35dB ECO1(75%): 32dB ECO2(45%): 32dB |
| Uniformity(Actual Min) | 80% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |

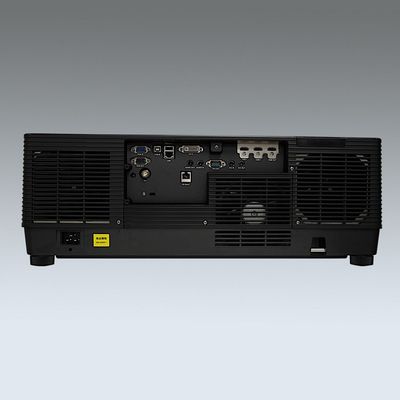

| Input Ports | VGA: 1 HDMI 1.4(IN): 2 USB-A: 1(5V/1.5A) USB-B: 1(Display) RJ45: 1(Display) DVI-D: 1 HD BaseT: 1 HD-SDI(3G-SDI): Optional Audio in (mini jack,3.5mm): 1 (VGA/DVI-D share) |
| Output Ports | VGA: 1 HDMI 1.4(OUT): 1 Audio out (mini-jack,3.5mm): 1 |
| Control Ports | RS232: 1 RJ45: 1 (Control) USB-B: 1 (For upgrade) Wired Remote(IN): 1 Wired Remote(OUT): 1 |
| Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron): Yes LAN Control-AMX Discovery: Yes LAN Control-PJ Link: Yes |
| Other Features | 360° projection: 360° omnibearing installation Edge Blending: Yes |
