3D Mapping Projector

Outdoor Building 15000 Lumen Laser Projector 3D Video Mapping Projection

All Category

Short Throw Laser Projector

Miss. May Wei

may@smxdisplay.com

+86 18923801593

+86 18923801593

Chat Now

Outdoor Building 15000 Lumen Laser Projector 3D Video Mapping Projection

Brand Name:	SMX
Model Number:	MX-X15000U
MOQ:	1pc
Payment Terms:	T/T
Supply Ability:	10000pcs/Monthly

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

3D Mapping LCD Laser Projector

Lumen:

1,5000

Contrast:

100,000:1

Projection Light Source:

Laser

Light Source Lifes Time:

20,000-30,000 Hours

Resolution:

WUXGA (1920*1200)

Throw Ratio:

1.46-2.95

Zoom Ratio:

Zoom/Focus:

Manual

Lens Shift:

V: -10%~+50% , H: ±20%

Projection Size:

40''-500''

Aspect Ratio:

16:10

Edge Blending:

Packaging Details:

Carton

Supply Ability:

10000pcs/Monthly

Highlight:

Outdoor Building 15000 lumen laser projector

Video Mapping 15000 Lumen Laser Projector

Building outdoor projection mapping projector

Product Description

Outdoor Building 15000 Lumen Laser Projector 3D Video Mapping Projection

The SMX MX-X15000U is a 3LCD laser engineering projector with 15,000 lumens, ideal for 3D Mapping and outdoor large venue projection. This model offers high brightness and color reproduction with the new 3LCD and laser light optical engine. The newly designed cooling system with sealed optical engine and filter-less design provides high performance with low fan noise. The MX-X15000U is a versatile installation projector with advanced keystone correction, 360° installation capability and a full suite of optional lenses.

Key Features

15,000 Lumen High Brightness
WUXGA (1920*1200) native resolution
Multi-interface, dual HDMI
Installation flexibility with advanced keystone correction
20,000 Hours ultra-long life laser light source
100000:1 High contrast ratio
360° Projection capability
Support for edge blending
4K signal input support

Applications

3D Projection Mapping
Outdoor Large Venue Projection
Immersive Experience Space
3D Video Hologram Projection
Digital Art Exhibition

Specifications

Model No.	MX-X15000U
Brightness (Ansi Lumens)	15000 lumen
Light source	Laser
Display Panel	3x0.76"
Display Technology	Liquid Crystal Display
Native Resolution	WUXGA (1920 x 1200)
Light source Lifetime	Normal mode: 20000hrs ECO mode: 20000hrs
Contrast Ratio (Min)	100000:1
Noise (dB)	Normal(90%): 35dB ECO1(75%): 32dB ECO2(45%): 32dB
Dimensions (WxHxD mm)	600218503
Net Weight	~25kg

Lens Shift

Vertical and horizontal lens shift enable flexible projector placement. Optical zoom, lens movement, installation, and debugging are more convenient.

360° Flexible Projection

The SMX MX-X15000U supports 360° all sides projection, and the image can be losslessly panned through the menu. Users can easily adjust the position of the projected image.

WUXGA (1920x1200) Resolution

WUXGA resolution (1920x1200 pixels) presents high-definition video images. The technology maintains clear and vivid details when projected on large screens, delivering vibrant visual experiences.

High Contrast

The high contrast ratio provides a more vivid and immersive visual experience, ideal for movies, games, and multimedia presentations. Details in images are easier to discern, especially subtle differences between shadows and highlights.

Edge Blending Function

The edge blending function allows multiple projectors to splice together a complete picture, achieving seamless connection for ultra-large screens with bright, vivid, high-resolution effects.

Motorized Zoom and Focus

Simplifies installation and operation by easily adjusting the lens through the remote control.

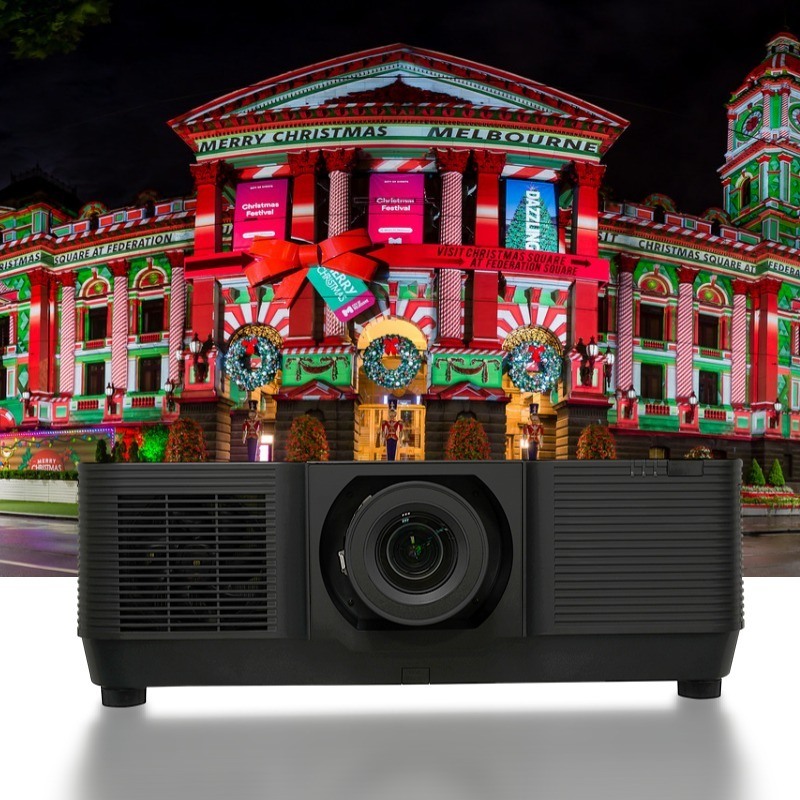

Why use architectural projection?
Using excellent projection tools like street projection, project mapping, and guerrilla projection, you can reach new consumers you never thought possible. A key reason to use architectural projection is its flexibility. The content can be altered and adapted to fit any surface. This type of advertising can be projected onto any building.
