| Brand Name: | SMX |
| Model Number: | MX-X22000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
High Contrast
The SMX’s MX-X20000U provides clearer, more vivid images, improve viewing experience, adapt to different lighting conditions, and achieve higher detail in professional applications.
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement. It allows lossless panning of the image through the menu, and users can easily adjust the position of the projected image. The maximum vertical adjustment range is ±65%, and the maximum horizontal adjustment range is ±25%.
Excellent Keystone Correction
Horizontal and vertical keystone correction, along with 6-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
Closed Dustproof Design
Free of maintenance and replacement of filter screen. Save more time and energy.
Flexible Installation
Allows the projector to be rotated freely 360° in order to point up or down depending on the installation requirements.
Edge blending
The edge blending function allows multiple projectors to splice together a complete picture, achieving seamless connection, ultra-large screen, bright and vivid, high-resolution effects.
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Specification
| 22000 Lumen Laser Projector | ||
| Key parts | ||
| Model No. | MX-X22000U | |
| Brightness ( Ansi Lumens ) |
22000 | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source | Dual-Color Laser(Blue+Red) | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) | Zoom/Focus | Motorized |
| Throw Ratio(16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift | V: ±65% H:±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | 41dB |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |

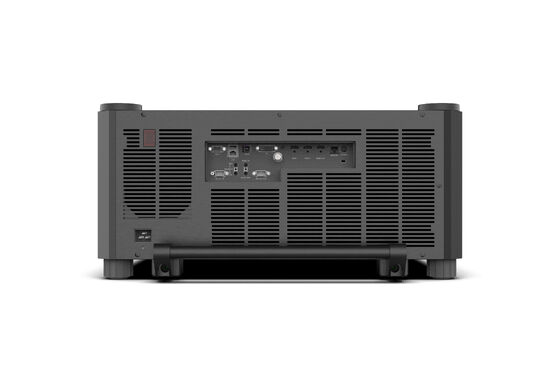

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | *1(Display)(Optional) | |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out(mini-jack,3.5mm) | *1 | |
| Control | RS232C(Input) | *1 |
| RS232C(Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| General Spec | ||
| Audio | Speaker | N/A |
| Power Consumption | Power Requeirements | 120~240V@ 50/60Hz |
| Power Consumption (Full) (Max) |
1520W | |
| Power Consumption (Normal) (Max) |
1400W | |
| Power Consumption (ECO1) (Max) |
1155W | |
| Power Consumption (ECO2) (Max) |
795W | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 45°C |
| Operating Thumidity. | 20%-80% | |
| Store Temp. | -10 to 50°C | |
| Store Humidity. | 20%-80% | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°,H:±30° Pincushion/Barrel Correction, 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes(Crestron 1.0) |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Bright,Standardl,Cinema,Colorboard,DICOM ,Blackboard(Green) ,Advanced |
|
| Cooling time | 0s,30s,Normal | |
| High altitude | Yes(0~3640m) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | ||
| 360° projection | Yes | |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Lens position memory, lens locking function | Yes | |
| Closed dustproof design, free of maintenance and replacement of filter screen | Yes | |
| DMX512 | Yes | |
| Timing function | Yes | |
| Safety redundant circuit | Yes | |
| Dynamic power control specifications | Yes | |
