Large Venue 3LCD Laser Projector with 20,000 Lumen Brightness WUXGA Resolution and 360° Flexible Installation

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1pc
Payment Terms:	T/T
Supply Ability:	10000pcs/Monthly

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Document:

Brightness:

20,000 Lumen

Resolution:

WUXGA

Contrast:

3,000,000:1

Lens Shift:

V:±65% H:±25%

Zoom/Focus:

Motorized

Edge Blending:

Install:

360°projection

Application:

Large Venue&3D Mapping

Packaging Details:

Carton

Supply Ability:

10000pcs/Monthly

Highlight:

WUXGA Laser Laser Short Throw 4k Projector

3LCD Laser Laser Short Throw 4k Projector

3LCD Large Auditorium Projectors

Product Description

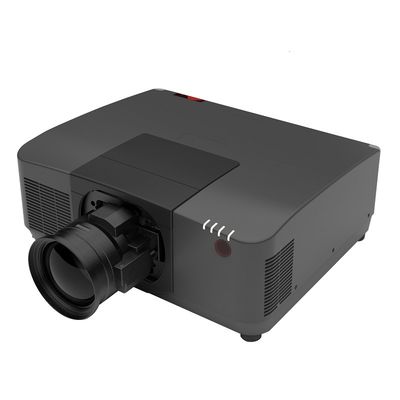

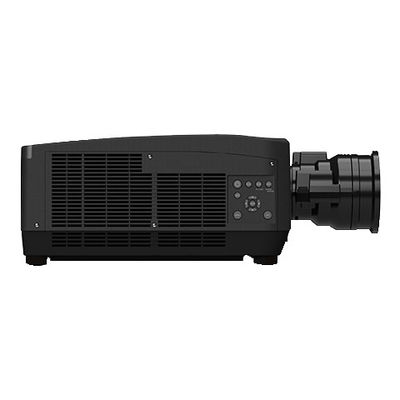

SMX 20000 Lumen 3LCD Laser Projector

The SMX MX-X20000U is a professional 3LCD laser projector delivering 20,000 lumens of brightness. Designed for commercial, public space, and higher education applications, it features advanced installation capabilities and comprehensive connectivity options. With a full range of optional motorized lenses and 360° flexible installation, this projector offers exceptional versatility.

HDBaseT input provides a single connection for uncompressed full HD digital video, audio, Ethernet, power, and control signals. The HDBaseT Repeater enables signal cascading for edge-blending or stacking applications.

Key Features

20,000 High Lumen Output
3,000,000:1 High Contrast Ratio
WUXGA Native Resolution (1920 x 1200)
Built-In HDBaseT Support
Lens Shift and Keystone Correction for Flexible Installation
Multiple Input / Output Interfaces
20,000 Hours Ultra-long Life Laser Light Source

Applications

Large conference rooms and lecture halls for business meetings and academic presentations
Educational institutions, including universities and training centers, for enhanced learning experiences
Exhibitions and museums for displaying exhibits and artworks

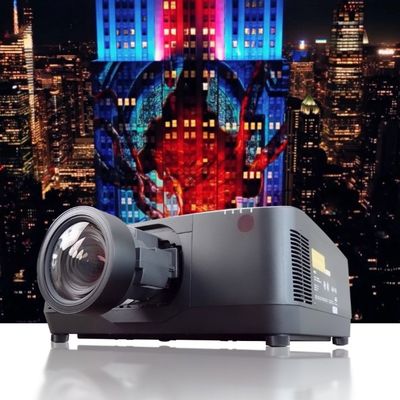

Events and performances, including concerts and outdoor activities
Control rooms and monitoring centers for real-time data display
Commercial advertising and digital signage in public spaces

Advanced Functions

Motorized Zoom and Focus: Simplifies installation and operation with remote-controlled lens adjustments.
Virtual Remote: Control the projector directly from a computer via a VGA cable without additional control cables.
Dual HDMI Inputs: Enable quick switching between presentations and simultaneous digital connections for high-definition sources.
Lens Shift: Vertical (±65%) and horizontal (±25%) lens shift enable flexible projector placement with lossless image panning.
Edge Blending: Seamlessly blends multiple projected images to display a single high-resolution image.
Closed Dustproof Design: Maintenance-free operation without filter replacement requirements.
360° Flexible Installation: Allows complete rotation for versatile mounting options.

Technical Specifications

Model	MX-X20000U
Brightness	20,000 Lumens
Display Technology	3x1.0" Liquid Crystal Display (3LCD)
Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode: 20,000 hours \| ECO mode: 30,000 hours
Contrast Ratio	3,000,000:1
Throw Ratio (16:10)	1.24-2.01 @100inch
Lens Shift	Vertical: ±65% \| Horizontal: ±25%
Noise Level	Full: 46dB \| Normal: 44dB \| Eco1: 43dB \| Eco2: 42dB

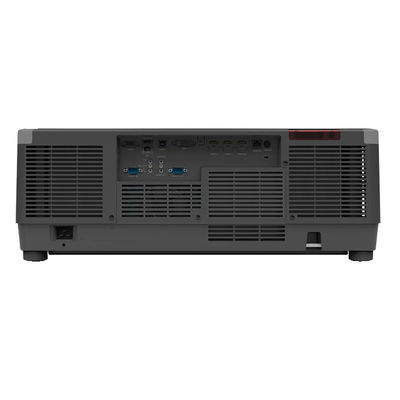

Input/Output Ports	VGA (1), HDMI 1.4 (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), Audio in (1), DMX512 (1), HDMI 1.4 OUT (1), Audio out (1)
Control Interfaces	RS232C (Input/Output), Wired Remote (Input/Output)
Keystone Correction	Vertical: ±30° \| Horizontal: ±30°
Product Dimensions	599 × 240.2 × 493.8mm (excluding lens)
Net Weight	28.9kg (excluding lens)
