| Brand Name: | SMX |
| Model Number: | MX-X15000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model | MX-X15000U |
|---|---|
| Brightness (Ansi Lumens) | 15000 lumen |
| Light source | Laser |
| Overall Specifications | |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source | |
| Life time (Normal/ECO mode) | 20000hrs |
| Projection Lens | |
| Len Type | Zoom Lens |
| Zoom/Focus | Manual(Standard Len, more lens, pls check the lens sheet) |
| Throw Ratio(16:10) | 1.46-2.95 |
| F#(Wide-Tele) | 1.7~2.37 |
| f(mm) | 24.4-48.6 |
| Zoom Ratio | 2 |
| Screen Size | 40-500 inch |
| Weight | Approx 0.8kg |
| Lens Shift V | +50%,-10% |
| Lens Shift H | ±20% |
| Contrast Ratio(Min) | 100000:1 |
| Noise(dB) | Normal(90%): 35dB / ECO1(75% ): 32dB / ECO2(45% ): 32dB |
| Uniformity(Actual Min)-JISX6911 | 80% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |

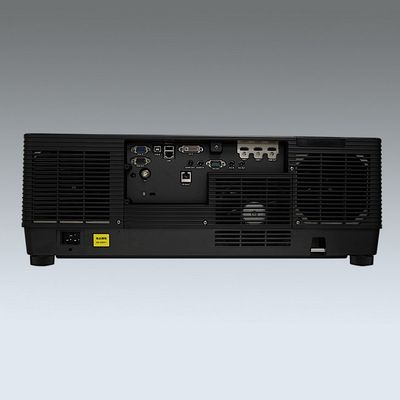

| Terminal(I/O port) | |
| Input | VGA *1 HDMI 1.4(IN) *2 USB-A *1(5V/1.5A) USB-B *1(Display) RJ45 *1(Display) DVI-D *1 HD BaseT *1 HD-SDI(3G-SDI) Optional Audio in (mini jack,3.5mm) *1 (VGA/DVI-D share) |
| Output | VGA *1 HDMI 1.4(OUT) *1 Audio out (mini-jack,3.5mm) *1 |
| Control | RS232 *1 RJ45 *1 (Control) USB-B *1 (For upgrade) Wired Remote(IN) *1 Wired Remote(OUT) *1 |
| Other Functions | |
| Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron) Yes LAN Control-AMX Discovery Yes LAN Control-PJ Link Yes |
| Scanning Frequency | H-Synch Range: 15~100KHz V-Synch Range: 24~85Hz |
| Display Resolution | Computer Signal Input: VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz Video Signal Input: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Others | 360° omnibearing installation Edge Blending: Yes |
| MAX Dimensions (WxHxD mm) | 600*218*503 |
| Net. Weight (KG) | ~25kg |
| Manual Languages | Chinese, English |
| Standard Accessaries | Power cord(3m,Black), Remote control, HDMI Cable |
| Model# | OL-MX13ZL | OL-MX15ZL | OL-MX40ZLM | OL-MX41ZLM | OL-MX43ZLM | OL-MX50SLM |
|---|---|---|---|---|---|---|
| Lens Type | Zoom Lens | Zoom Lens | Zoom Lens | Zoom Lens | Zoom Lens | Zoom Lens |
| Zoom/Focus | Manual | Manual | Motorized | Motorized | Motorized | Motorized |
| F#(Wide-Tele) | 1.7-2.37 | 2.2-2.7 | 2.0-2.5 | 1.7-2.0 | 2.2-2.6 | 1.9-2.1 |
| f(mm) | 24.4-48.6 | 76.6-116.5 | 13.3-18.6 | 21.8-49.8 | 49.7-99.8 | |
| Throw ratio (16:10) | 1.46-2.95 | 4.59-7.02 | 0.79-1.11 | 1.30-3.02 | 2.99-5.93 | 0.6-0.75 |
| Zoom Ratio | 2 | 1.52 | 1.4 | 2.3 | 2.0 | 1.3 |
| Screen Size | 40-500 inch | 60-500 inch | 50-500 inch | 50-500 inch | 50-500 inch | 60-500 inch |
| Weight | approx.0.8kg | approx.1.0kg | approx.1.63kg | approx.1.8kg | approx.1.8kg |
