| Brand Name: | SMX |
| Model Number: | MX-X20000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model | MX-X10000U |
|---|---|
| Brightness (ANSI Lumens) | 10000 lumen |
| Light Source | Laser |
| Display Panel | 3x0.76" |
|---|---|
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light Source Lifetime | Normal mode: 20000hrs ECO mode: 20000hrs |
| Lens Type | Zoom Lens |
|---|---|
| Zoom/Focus | Manual (Standard Lens, more lenses available) |
| Throw Ratio (16:10) | 1.46-2.95 |
| F# (Wide-Tele) | 1.7~2.37 |
| f(mm) | 24.4-48.6 |
| Zoom Ratio | 2 |
| Screen Size | 40-500 inch (Performance guarantee range: 40-200 inch) |
| Lens Shift V | +50%, -10% |
| Lens Shift H | ±20% |
| Contrast Ratio (Min) | 100000:1 |
|---|---|
| Noise (dB) | Normal (90%): 35dB ECO1 (75%): 32dB ECO2 (45%): 32dB |
| Uniformity (Actual Min) | 80% |
| Aspect Ratio | Native: 16:10 Compatible: 4:3/16:9/normal |

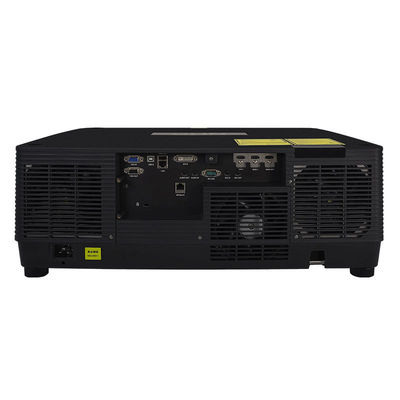

| Input |
VGA: *1 HDMI 1.4(IN): *2 USB-A: *1 (5V/1.5A) USB-B: *1 (Display) RJ45: *1 (Display) DVI-D: *1 HD BaseT: *1 HD-SDI(3G-SDI): Optional Audio in (mini jack, 3.5mm): *1 (VGA/DVI-D share) |
|---|---|
| Output |
VGA: *1 HDMI 1.4(OUT): *1 Audio out (mini-jack, 3.5mm): *1 |
| Control |
RS232: *1 RJ45: *1 (Control) USB-B: *1 (For upgrade) Wired Remote(IN): *1 Wired Remote(OUT): *1 |
| Keystone Correction |
V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
|---|---|
| LAN Control |
LAN Control-RoomView (Crestron): Yes LAN Control-AMX Discovery: Yes LAN Control-PJ Link: Yes |
| Others |
360° projection: 360° omnibearing installation Edge Blending: Yes |
| MAX Dimensions (WxHxD mm) | 600*218*503 |
|---|---|
| Net Weight (KG) | ~25kg |
| Packaging Box Dimensions (WxHxD mm) | 725*622*350 |
| Gross Weight (KG) | ~29.5kg |
| Manual Languages | Chinese, English |
|---|---|
| Standard Accessories | Power cord (3m, Black), Remote control, HDMI Cable |
