| Brand Name: | SMX |
| Model Number: | MX-X20000U |
| MOQ: | 1pc |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 12000pcs/Monthly |
| Model# | MX-X20000U |
| Brightness | |
| Brightness (Lumen) | 20,000 |
| Overall Specifications | |
| Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Laser Lifetime - Normal Mode | 20,000 hours |
| Laser Lifetime - ECO Mode | 30,000 hours |
| Projection Lens (Standard) | |
| Lens Model | MX-EG12ZLM |
| Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| F | 1.8-2.24 |
| f | 27.7-44.3mm |
| Zoom Ratio | 1.62 |
| Screen Size | 60-500 inch |
| Lens Shift Vertical | ±65% |
| Lens Shift Horizontal | ±25% |
| Contrast Ratio (Minimum) | 3,000,000:1 |
| Noise Level (dB) | Full: 46db / Normal: 44db / Eco1: 43db / Eco2: 42db |
| Uniformity | Typical: 90% |
| Aspect Ratio | Native: 16:10, Compatible: 4:3/16:9/normal/16:6 |
| Terminal I/O Ports | |

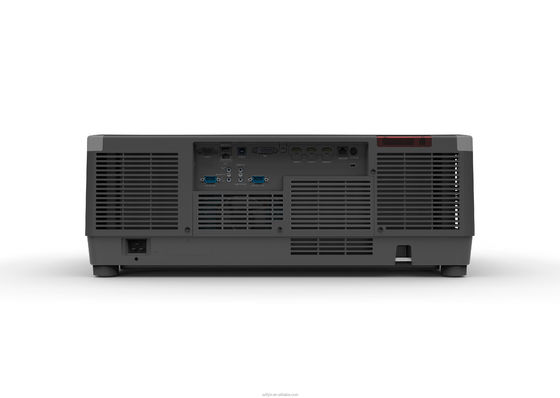

| Input Ports | VGA (1), HDMI 1.4 IN (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), Audio in (1), DMX512 (1) |
| Output Ports | HDMI 1.4 OUT (1), Audio out (1) |
| Control Ports | RS232C Input (1), RS232C Output (1), Wired Remote IN (1), Wired Remote OUT (1) |
| Other Functions | |
| Keystone Correction | Vertical: ±30°, Horizontal: ±30° |
| Additional Corrections | Pincushion/Barrel Correction, 6 Corner Geometry correction, Grid ImageTune correction |
| OSD Languages | 26 languages, including English, German, French, Italian, Spanish, Chinese, Japanese, Korean, and more |
| LAN Control | RoomView (Crestron), AMX Discovery, PJ Link |
| Display Resolution Support | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| 360° Projection | Yes |
| Edge Blending | Yes |
| Adjustable Brightness | Yes |
| Dimensions & Weight | |
| Product Size (WxHxD mm) | 599 × 240.2 × 493.8mm (not including lens) |
| Net Weight (KG) | 28.9Kg (not including lens) |
| Accessories | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord (3m, Black), Remote control |
| Model# | MX-EG05ZLM | MX-EG06ZLM | MX-EG08ZLM | MX-EG12ZLM | MX-EG20ZL | OL-EG39ZLM |
|---|---|---|---|---|---|---|
| Image Circle | Φ34.6 | Φ35.5 | Φ37.9 | Φ37.9 | Φ37.9 | Φ37.9 |
| Zoom/Focus | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
| F# (Wide-Tele) | 1.85-2.20 | 1.84-2.25 | 1.80-2.24 | 1.80-2.24 | 1.84-2.58 | 1.85-2.42 |
| f(mm) | 12.0-14.6 | 14.4-19.1 | 19.0-27.6 | 27.7-44.3 | 43.8-86.0 | 86.8-163.5 |
| Throw Ratio (16:10) | 0.53-0.65 | 0.65-0.87 | 0.86-1.25 | 1.24-2.01 | 1.98-3.95 | 3.95-7.50 |
| Zoom Ratio | 1.23 | 1.34 | 1.45 | 1.62 | 1.99 | 1.90 |
| Lens Shift Horizontal | ±20% | ±20% | ±25% | ±25% | ±25% | ±25% |
| Lens Shift Vertical | ±50% | ±55% | ±65% | ±65% | ±65% | ±65% |
| Screen Size | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch |
