| Brand Name: | SMX |
| Model Number: | MX-X12000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model No. | MX-X12000U |
|---|---|
| Brightness (Ansi Lumens) | 12000 lumen |
| Light source | Laser |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source Lifetime | Normal mode: 20000hrs ECO mode: 20000hrs |
| Projection Lens | Zoom Lens |
| Zoom/Focus | Manual(Standard Len) |
| Throw Ratio(16:10) | 1.46-2.95 |
| Contrast Ratio(Min) | 3,000,000:1 |
| Noise(dB) | Normal(90%): 35dB ECO1(75%): 32dB ECO2(45%): 32dB |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |

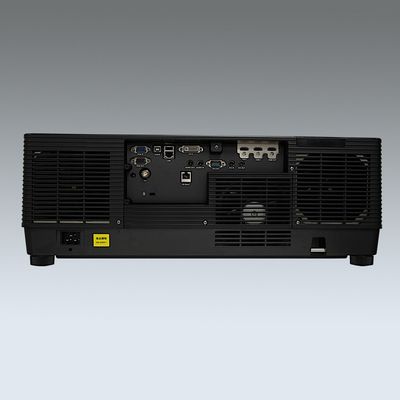

| Input/Output Ports | VGA (1), HDMI 1.4(IN) (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), HD-SDI(3G-SDI) (Optional) |
| Control | RS232 (1), RJ45 (1), USB-B (1), Wired Remote(IN/OUT) (1 each) |
| Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| OSD Languages | 26 languages including English, German, French, Spanish, Japanese, Chinese, and more |
| LAN Control | RoomView (Crestron), AMX Discovery, PJ Link |
| Display Resolution | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| Special Features | 360° Omni bearing installation, Edge Blending |
| Dimensions (WxHxD mm) | 600*218*503 |
| Net Weight | ~25kg |
| Accessories | Power cord (3m, Black), Remote, HDMI Cable |
