| Brand Name: | SMX |
| Model Number: | MX-X20000U |
| MOQ: | 1pc |
| Price: | 17250usd/pc |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 12000pcs/Monthly |
| Model# | MX-X20000U |
| Brightness | |
| Brightness(Lumen) | 20,000 |
| Overall Spec | |
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Laser Lifetime | Normal mode | 20000hrs ECO mode | 30000hrs |
| Projection Lens (STD) | |
| Len Model | MX-EG12ZLM |
| Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| F | 1.8-2.24 |
| f | 27.7-44.3mm |
| Zoom Ratio | 1.62 |
| Screen size | 60-500 inch |
| Lens Shift V | ±65% |
| Lens Shift H | ±25% |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) | |
| Input |
VGA | *1 HDMI 1.4(IN) | *2 USB-A | *1 USB-B | *1 (Display) RJ45 | *1 (Display) DVI-D | *1 HD BaseT | *1 Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) DMX512 | *1 |
| Output |
HDMI 1.4(OUT) | *1 Audio out (mini-jack,3.5mm) | *1 |
| Control |
RS232C (Input) | *1 RS232C (Output) | *1 Wired Remote(IN) | *1 Wired Remote(OUT) | *1 |
| Other Functions | |
| Keystone |
Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control |
LAN Control-RoomView (Crestron) | Yes LAN Control-AMX Discovery | Yes LAN Control-PJ Link | Yes |
| Others |
360° projection | 360° Install Edge Blending | Yes Adjustable brightness | Yes |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord (3m, Black), Remote control |
The SMX MX-X20000U features motorized interchangeable lenses with a wide throw ratio range of 0.53:1 to 7.5:1, allowing for versatile installation options. Whether ceiling-mounted, floor-standing, or rear-projection, this projector adapts seamlessly to various venue sizes and projection distances, enabling precise image alignment and distortion-free visuals.
| Model# | MX-EG05ZLM | MX-EG06ZLM | MX-EG08ZLM | MX-EG12ZLM | MX-EG20ZL | OL-EG39ZLM |
|---|---|---|---|---|---|---|
| Image circle | Φ34.6 | Φ35.5 | Φ37.9 | Φ37.9 | Φ37.9 | Φ37.9 |
| Zoom/Focus | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
| F# (Wide-Tele) | 1.85-2.20 | 1.84-2.25 | 1.80-2.24 | 1.80-2.24 | 1.84-2.58 | 1.85-2.42(TBD) |
| f(mm) | 12.0-14.6 | 14.4-19.1 | 19.0-27.6 | 27.7-44.3 | 43.8-86.0 | 86.8-163.5(TBD) |
| Throw Ratio (16:10) | 0.53-0.65 | 0.65-0.87 | 0.86-1.25 | 1.24-2.01 | 1.98-3.95 | 3.95-7.50(TBD) |
| Zoom Ratio | 1.23 | 1.34 | 1.45 | 1.62 | 1.99 | 1.90(TBD) |
| Lens shift | H | ±20% V | ±50% |
H | ±20% V | ±55% |
H | ±25% V | ±65% |
H | ±25% V | ±65% |
H | ±25% V | ±65% |
H | ±25% V | ±65% |
| Screen Size | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch |

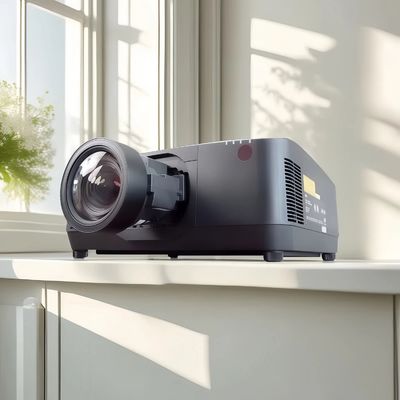

Experience the power of professional-grade projection with the SMX MX-X20000U, a high-brightness 20,000-lumen WUXGA-resolution laser projector designed for demanding large-scale applications. Utilizing cutting-edge laser illumination technology, this projector offers exceptional brightness, stunning clarity, and unmatched reliability, making it the perfect choice for outdoor projections, dynamic stage performances, and intricate architectural mapping.
