Good price online

products details

Home > Products >
Large Venue Projector
>
20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events
All Category

3D Mapping Projector

Immersive Projector

Large Venue Projector

3LCD Laser Projector

Business Projector

4K Laser Projector

Home Cinema Projector

UST Laser Projector

Short Throw Laser Projector
Contact Us
Miss. May Wei
may@smxdisplay.com
+86 18923801593
wechat
+86 18923801593
Chat Now
20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events

20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events

Brand Name: SMX
Model Number: MX-X20000U
MOQ: 1pc
Payment Terms: T/T
Supply Ability: 10000pcs/Monthly
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO,CE
Document:
SMX 20000 Lumen Laser Proje...on.pdf
Brightness:
20,000 Lumen
Resolution:
WUXGA
Contrast:
3,000,000:1
Lens Shift:
V:±65% H:±25%
Zoom/Focus:
Motorized
Edge Blending:
Yes
Install:
360°projection
Application:
Large Venue&3D Mapping
Packaging Details:
Carton
Supply Ability:
10000pcs/Monthly
Highlight:

20000 Lumen 3D Mapping Projector

,

20000 Lumen Venue Laser Projector

,

Large Venue 3D Mapping Projector

Product Description
Large Venue Projector for Professional Events

High-performance 20,000 lumen laser projector designed for demanding professional environments, offering exceptional brightness and easy operation.

Product Overview
The SMX MX-X20000U is a professional-grade 3LCD Laser Projector delivering 20,000 lumens of brightness. Designed for commercial installations, public spaces, and higher education environments, it features advanced connectivity options and flexible installation capabilities.

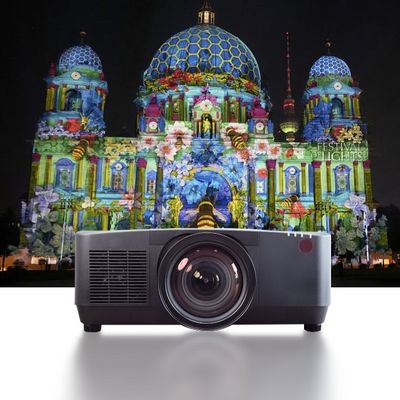

SMX MX-X20000U 20,000 lumen 3LCD laser projector in professional setting
Key Features
  • 20,000 High Lumen brightness output
  • 3,000,000:1 High Contrast ratio
  • WUXGA Native Resolution (1920 x 1200)
  • Built-In HDBaseT Support for single cable connectivity
  • Lens Shift and Keystone Correction for flexible installation
  • Multiple input/output interfaces for versatile connectivity
  • 20,000 Hours Ultra-long Life Laser Light Source
Technical Specifications
Model MX-X20000U
Brightness 20,000 Lumen
Display Technology 3x1.0" Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser Lifetime Normal mode: 20,000hrs
ECO mode: 30,000hrs
Contrast Ratio 3,000,000:1
Dimensions 599 × 240.2 × 493.8mm (without lens)
Weight 28.9Kg (without lens)
Advanced Functions
  • Motorized Zoom and Focus
Simplifies installation and operation with remote-controlled lens adjustments.
  • Virtual Remote
Control the projector directly from a computer via a VGA cable without additional control cables.
  • Dual HDMI Inputs
Enables quick switching between presentations and simultaneous connections to high-definition sources.
  • Lens Shift
Vertical (±65%) and horizontal (±25%) adjustment allows lossless image positioning for flexible projector placement.
  • Edge Blending
Seamlessly combines multiple projected images to create a single high-resolution display.
  • Closed Dustproof Design
Eliminates maintenance needs for filter replacement, saving time and energy.
  • 360° Flexible Installation
Allows projector rotation in any orientation to meet diverse installation requirements.

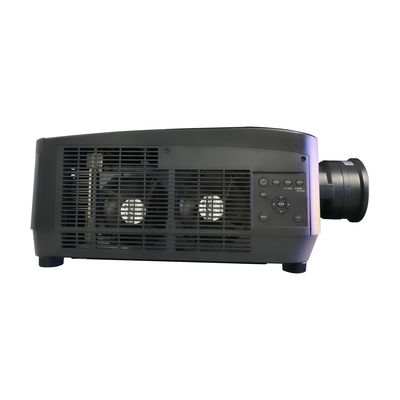

20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events 1

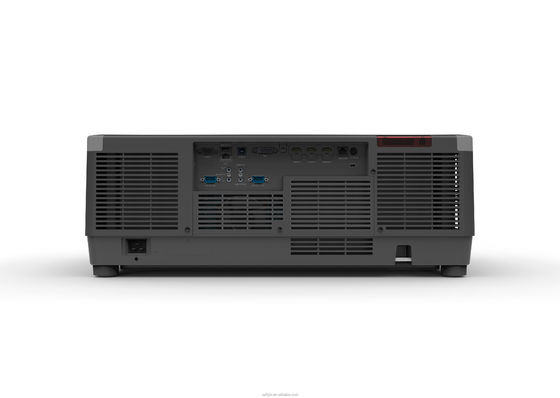

20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events 2

20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events 3
SMX MX-X20000U projector installed in professional venue
Applications
  • Large conference rooms and lecture halls: Ideal for business meetings, academic lectures, and demonstrations requiring high brightness and clarity.
  • Educational institutions: Enhance classroom teaching and multimedia learning in universities and schools.
  • Exhibitions and museums: Creates engaging displays for exhibits and artworks.
  • Events and performances: Provides dynamic video effects for concerts, dramas, and large-scale events.
  • Control rooms and monitoring centers: Displays real-time data for transportation and security applications.
  • Commercial advertising: Effective for digital signage in shopping malls and public spaces.


20,000 Lumen Large Venue Laser Projector with WUXGA Resolution and 360° Projection for Professional Events 5
