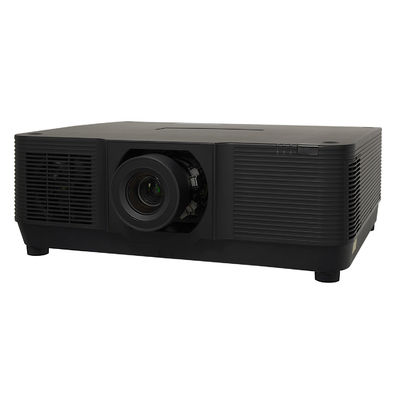

Powerful High Birghtness 3LCD Laser Projector 15000 Lumen For Big Screen Projection

Brand Name:	SMX
Model Number:	MX-X15000U
MOQ:	1pc
Payment Terms:	T/T
Supply Ability:	10000pcs/Monthly

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Brightness:

15,000 Lumen

Resolution:

WUXGA

Contrast:

5,000,000:1

Len Shift:

V：+50%;-10%; H: ±10%

360° Projection:

Lenes:

Manual And Motorized Leses

Light Source:

Laser

Keystone Correction:

Packaging Details:

Carton

Supply Ability:

10000pcs/Monthly

Highlight:

Powerful 3D Mapping Projector

High Accuracy 3D Mapping Projector

Lower Maintenance 20000 lumen projector

Product Description

Powerful High Brightness 3LCD Laser Projector 15000 Lumen For Big Screen Projection

15000 Lumen Versatility 3D Mapping Projector For Large Venues

SMX MX-X15000U is a 15,000-lumen laser projector with WUXGA resolution that provides exceptional brightness, image quality, color accuracy, versatility, and longevity, making it a powerful and reliable solution for demanding projection needs in a wide range of settings.

For a 300" Projection Screen

Key Advantages

High Brightness: 15,000 lumen brightness ensures exceptional visibility even in well-lit environments or for large screen sizes.
Crisp Image Quality: WUXGA resolution (1920 x 1200 pixels) delivers sharp and detailed images with enhanced clarity.
Laser Light Source: Provides consistent brightness, color accuracy, and a longer lifespan compared to traditional lamp-based projectors.
Wide Color Gamut: Displays a wide range of colors accurately for vibrant and true-to-life visuals.
Versatile Applications: Suitable for large-scale presentations, digital signage, educational environments, and immersive home cinema setups.
Flexible Installation: Supports 360° all-round projection with lossless image translation through menu adjustments.
Keystone Correction: Ensures properly proportioned and distortion-free images when projector placement isn't ideal.
Lens Shift: Vertical adjustment range of ±65% and horizontal adjustment range of ±20% without image loss.

Main Specifications

Model
Model No.	MX-X15000U
Brightness (ANSI Lumens)	15000
Light Source	Laser

Overall Specifications
Display Panel	3x0.76"
Display Technology	Liquid Crystal Display
Native Resolution	WUXGA (1920 x 1200)
Light Source Lifetime	Normal mode: 20,000hrs ECO mode: 20,000hrs

Lens Options

Model#	OL-MX13ZL	OL-MX15ZL	OL-MX40ZLM	OL-MX41ZLM	OL-MX43ZLM	OL-MX50SLM
Lens Type	Zoom Lens	Zoom Lens	Zoom Lens	Zoom Lens	Zoom Lens	Zoom Lens
Zoom/Focus	Manual	Manual	Motorized	Motorized	Motorized	Motorized
F#(Wide-Tele)	1.7-2.37	2.2-2.7	2.0-2.5	1.7-2.0	2.2-2.6	1.9-2.1
f(mm)	24.4-48.6	76.6-116.5	13.3-18.6	21.8-49.8	49.7-99.8
Throw ratio (16:10)	1.46-2.95	4.59-7.02	0.79-1.11	1.30-3.02	2.99-5.93	0.6-0.75
Zoom Ratio	2	1.52	1.4	2.3	2.0	1.3
Weight	approx.0.8kg	approx.1.0kg	approx.1.63kg	approx.1.8kg	approx.1.8kg
