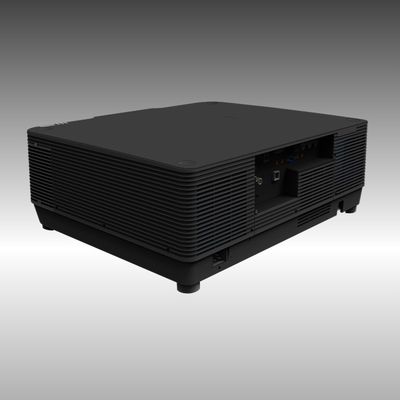

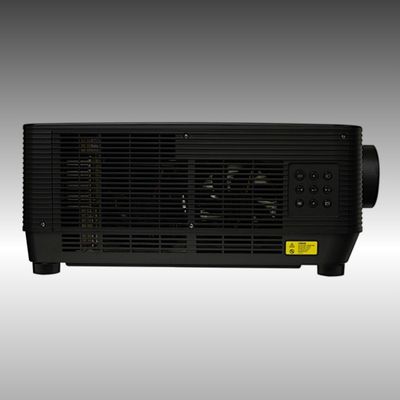

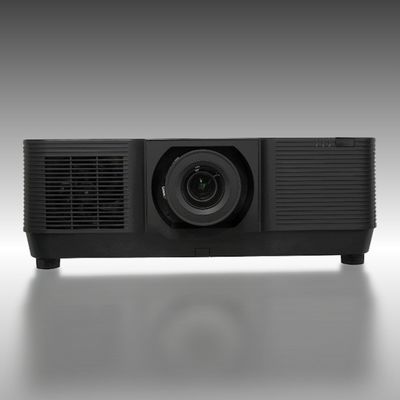

| Brand Name: | SMX |
| Model Number: | MX-X15000U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model No. | MX-X15000U |
| Brightness (ANSI Lumens) | 15,000 lumen |
| Light Source | Laser |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light Source Lifetime | Normal mode: 20,000 hrs ECO mode: 20,000 hrs |
| Lens Type | Zoom Lens |
| Zoom/Focus | Manual (Standard Lens) |
| Throw Ratio (16:10) | 1.46-2.95 |
| Contrast Ratio | 100,000:1 |
| Noise Level | Normal (90%): 35dB ECO1 (75%): 32dB ECO2 (45%): 32dB |

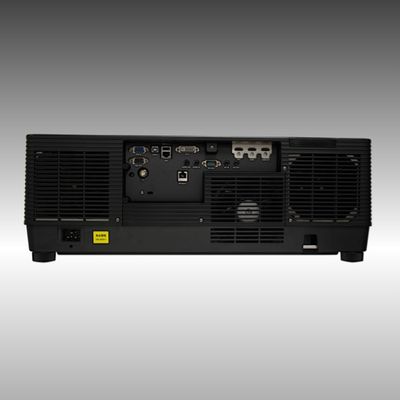

| Input Ports | VGA (x1), HDMI 1.4 (x2), USB-A (x1), USB-B (x1), RJ45 (x1), DVI-D (x1), HD BaseT (x1), HD-SDI (Optional), Audio in (x1) |
| Output Ports | VGA (x1), HDMI 1.4 (x1), Audio out (x1) |
| Control Ports | RS232 (x1), RJ45 (x1), USB-B (x1), Wired Remote IN/OUT (x1 each) |
| Keystone Correction | V: ±30°, H: ±30°, Pincushion/Barrel Correction, 6 Corner Geometry correction, Grid ImageTune correction |
| 360° Projection | 360° Omni bearing installation |
| Edge Blending | Yes |
| Dimensions (WxHxD mm) | 600 x 218 x 503 |
| Net Weight | ~25kg |
