| Brand Name: | SMX |
| Model Number: | MX-PL9510K |
| MOQ: | 1 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 15000pcs/monthly |
The SMX flagship 10,000-lumen 4K laser projector is custom-engineered for ultra-luxury private cinemas, 360° tactical simulation domes, digital art museums, and high-density corporate auditoriums. Utilizing true 3LCD technology, it ensures a perfect balance between Color Brightness and White Brightness. Coupled with a premium suite of interchangeable lenses, this projector transforms any architectural challenge into a seamless digital canvas.
100% Equal Color Brightness: Conventional single-chip DLP projectors often inflate white lumens, resulting in muddy and washed-out colors. In contrast, the SMX projector employs an advanced 3-chip 3LCD architecture, ensuring that Color Brightness perfectly matches White Brightness, delivering a full 10,000 lumens.
Cinematic 4K Precision: With an exceptional dynamic contrast ratio of 5,000,000:1, this projector provides pixel-level clarity. Whether displaying fine gridlines on CAD schematics or thick oil-paint textures in a digital Van Gogh gallery, images remain sharp, deep, and incredibly detailed.
The projector supports a comprehensive range of optional high-precision, all-glass engineering lenses, from short-throw to long-throw telephoto (sold separately), with throw ratios from 0.669 to 2.97:1.
Features robust vertical (up to +50%) and horizontal (±23%) motorized lens shifting, zoom, and focus. System integrators can easily align the display within high-ceiling rigging, narrow booths, or extreme off-axis side-projection setups without needing to relocate the physical mount.
Public exhibitions, cultural tourism hubs, and large venues often struggle with dust accumulation. The SMX isolates its core light engine within an IP5X hermetically sealed optical engine and a filter-less internal liquid-cooling loop.

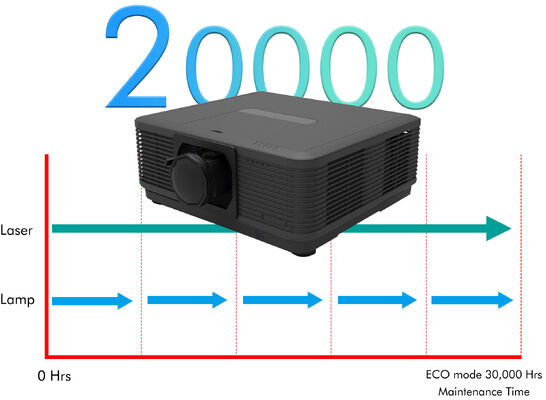

Laser Light Source for 30,000-Hour Lifespan
With a laser service life of up to 30,000 hours, it eliminates the need for frequent filter cleanings and costly lamp replacements, resulting in a significantly low Total Cost of Ownership (TCO).
Onboard hardware-level edge blending and advanced multi-point geometric warping allow integrators to blend multiple SMX projectors without the need for expensive external blending software.
360-Degree Orientation Freedom
The projector can be mounted upside down, vertically, or at extreme tilt angles—ideal for immersive floor projections, interactive CAVE setups, and 360° simulation training enclosures.
| Large Venue 10000 Lumen Dual-color laser Projector | ||
| Key Parts | ||
| Mode No. | MX-PL9510K | |
| Brightness(Ansi Lumen) | 10000 | |
| Resolution | 4K | |
| Overall Spec | ||
| Display Device | Display Technology | 3LCD (3*0.64") |
| Native Resolution | 4K | |
| Light source Lifetime |
Normal mode | 20000hrs |
| Projection Lens | Zoom/Focus type | Manual |
| Throw Ratio (optional lens) | 1.08-1.76 | |
| F#(Wide-Tele) | 1.58-2.02 | |
| f(mm) | 15.3-24.6 | |
| Screen size | 30-300" | |
| Lens Shift | V: +45%~0% H:±21% |
|
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) | Normal: 39dB Long life: 39dB Quietness: 32dB |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 |
| I/O Terminal | ||
| Input | HDMI IN | *2 (HDMI 2.0) |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| 3G-SDI | *1(Optional) | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | HDMI OUT | *1 (HDMI 2.0) |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| DMX512 | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
H/V keystone 4 Corner Correction Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Others | 360° projection | Yes |
| NFC | Yes | |
| PW presenter | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
490x510x205 | |
| Net. Weight (kg) | ~18.5 | |
| Packaging Size (WxDxH mm) |
800*740*440 | |
| Gross. Weight (kg) | ~28 | |
| Accessory | ||
| Standard accessory | Power Cord, Remote, HDMI Cable | |
Powered by its monumental brightness and versatile optical flexibility, the SMX 10,000-Lumen 4K Laser Projector is the definitive blueprint for four high-end vertical engineering applications:
Flight simulator cockpits, industrial simulation mapping, planetarium digital dome theaters, and interactive VR theme park enclosures.
Immersive digital impressionist exhibitions (e.g., Van Gogh/Monet exhibits), large-scale CAVE environments, and public multimedia holographic spaces.

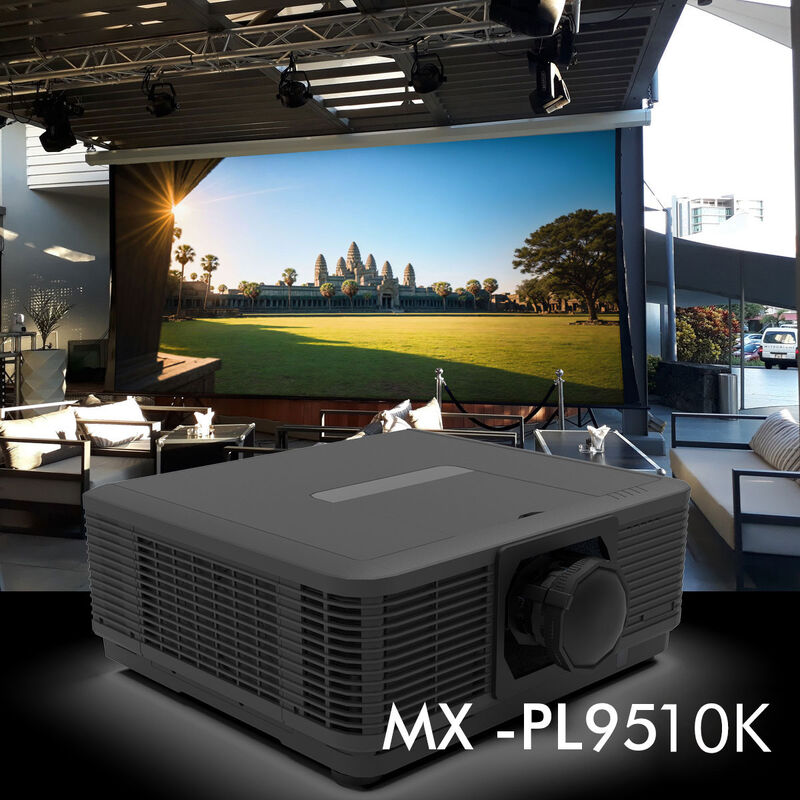

Mega 200+ inch private theaters in ultra-luxury estates, multi-functional private club lounges, and high-end indoor golf simulator rooms.

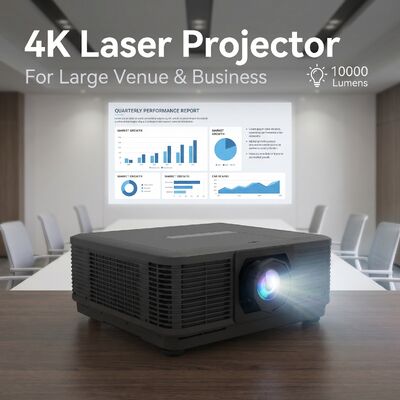

150+ m² multinational corporate conference hubs, executive briefing halls, and tiered university lecture auditoriums.
