| Brand Name: | SMX |
| Model Number: | MX-X25000U |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 15000pcs/monthly |
Next-Generation 3LCD Dual-Color Laser Solution Engineered for Heavy-Duty Production & Large Venue Architectural Displays
Sustained high-brightness performance under ambient light.
Advanced red & blue lasers paired with a professional 3-chip panel.
1920x1200 native resolution provides extra vertical workspace.
Five motorized lens options with full remote position memory.
Our engineering team provides complimentary throw distance simulator calculations within 12 hours. Contact us

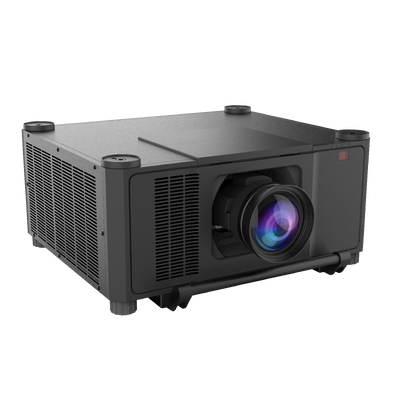

Designed to push the boundaries of high-power projection, the SMX MX-X25000U incorporates an industrial-grade optical engine. By combining robust dual-color laser modules with active 3LCD panels, this projector guarantees uniform illumination, color accuracy under severe operations, and an incredibly long service life.
By supplementing traditional blue lasers with secondary red laser channels, the system expands the achievable color volume. It eliminates the annoying yellow/green color shift found in single-blue-laser projectors.
Maintains equal Color and White brightness output. Say goodbye to the distracting "rainbow effect" (color separation) and enjoy comfortable viewing experiences, which are essential for digital galleries and auditoriums.
Concrete building facades, dark stone walls, and city plazas require high lumen output to successfully combat high ambient light and street glare.
SMX Edge: The massive 25,000 ANSI Lumens, paired with built-in advanced geometry correction, enables installers to map flawless 3D layouts directly onto dark, irregular surfaces with high contrast.
In close-proximity projection rooms, viewers stand inches from the screen. Color accuracy, heat emissions, and absolute pixel consistency are critical.
SMX Edge: Active 3-chip technology renders rich, organic color blends without rainbow artifacts, while liquid cooling minimizes ambient heat, maintaining visitor comfort in enclosed galleries.
Every layout has unique constraints. To address the need for barrier placement, the MX-X25000U supports five optional bayonet lenses with extensive motor-driven horizontal and vertical lens shift.
| Lens Code | Throw Ratio | Motorized Shift Range | Ideal Architectural Environment |
|---|---|---|---|
| MX-EG05ZLM | 0.53-0.65:1 | ± 50% V / ± 20% H | Experiential rooms, digital museums, compact shop-front spaces |
| MX-EG06ZLM | 0.65-0.87:1 | ± 60% V / ± 25% H | Flight simulators, training centers, rear-projection setups |
| MX-EG12ZLM | 1.24 - 2.0: 1 | ± 60% V / ± 30% H | Corporate boardrooms, higher-education lecture auditoriums |
| MX-EG20ZLM | 1.98-3.95:1 | ± 60% V / ± 30% H | House of Worship sanctuaries, arenas, and large convention centers |
| MX-EG39ZLM | 3.95 - 7.51: 1 | ± 60% V / ± 30% H | Exterior architectural mapping, outdoor stadiums, festival displays |
