| Brand Name: | SMX |
| Model Number: | MX-X25000U |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 15000pcs/monthly |

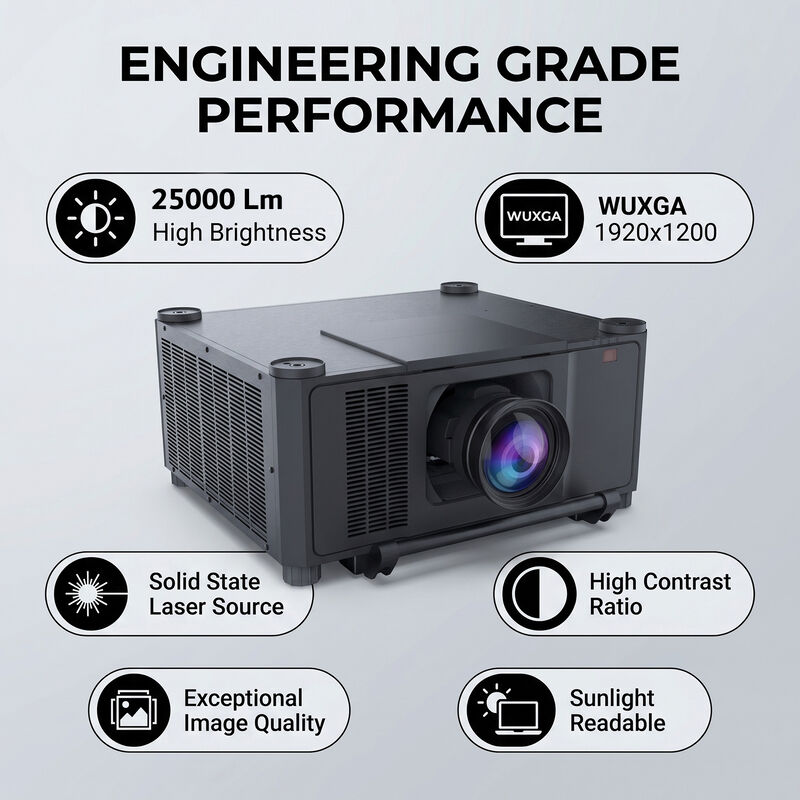

Designed for high-impact outdoor architectural projection mapping, massive stadium shows, and immersive cultural tourism displays, the SMX 25,000 Lumens 3LCD Dual-Color Laser Projector represents the absolute pinnacle of professional engineering optics.
Combining an extraordinary 25,000 ISO Lumens output with advanced Dual-Color Solid-State Laser diodes and a 3-chip 3LCD optical prism, this flagship engine breaks through intense ambient lighting while delivering ultra-saturated, color-accurate WUXGA graphics. Engineered for non-stop 24/7 continuous operation, it comes complete with a versatile suite of motorized bayonet lenses to overcome any complex architectural installation challenge.
Brightness: 25,000 ANSI Lumens
Light Source: Dual-Color Laser (Red & Blue) + 3LCD Optics
Native Resolution: WUXGA (1920 × 1200), 16:10
Dynamic Contrast Ratio: 5,000,000:1
Light Source Life: 20,000 Hours (Normal) / 30,000 Hours (Eco)
Lens Options: Fully Motorized Interchangeable Lenses (Optional)
| Performance / Metric | Flagship Engineering Specifications |
| Luminous Brightness | 25,000 ISO / ANSI Lumens (Calibrated High-Output) |
| Light Source Technology | Dual-Color (Red & Blue) Solid-State Laser Array |
| Imaging Technology | 3-Chip 3LCD Optical Prism Alignment |
| Native Resolution | WUXGA (1920 X 1200) with16:10 Native Aspect Ratio |
| Color Light Output (CLO) | 100% Equal Color & White Brightness |
| Optical Engine Structure | IP5X Sealed Dust-Proof Optics (Filter-Free Design) |
| Light Source Lifespan | 20,000+ Hours (Zero Lamp Consumables) |
| Built-in Processors | Hardware Multi-Point Edge Blending & Geometric Warping |
| Lens Options | Fully Motorized Quick-Release Bayonet Lenses (0.53:1 to 7.51:1) |
Traditional ultra-high-brightness projectors often sacrifice color saturation to boost white lumens, resulting in dull, greenish tones. By combining Red and Blue laser diodes, our 25,000-lumen platform vastly expands the color gamut spectrum. Coupled with 3-chip 3LCD technology, it outputs 100% Equal Color Brightness, producing deep reds, natural skin tones, and rich vibrant hues on massive building facades.
Executing complex 3D Mapping on curved surfaces, spheres, or irregular architectural landmarks requires precise optical warping. This projector features industrial-grade hardware-level Edge Blending and Geometry Correction built into the firmware. System integrators can seamlessly blend multiple 25,000-lumen streams into a single seamless canvas without needing high-latency external video processors.
4. Lens Shift, Motorized Lenses, easy to move the image
No two outdoor venues share the same throw parameters. SMX supports this 25,000-lumen platform with a dynamic suite of interchangeable motorized lenses, ranging from 0.53:1 short-throw options up to 7.51: 1 long-throw telephoto optics. Full motorized Zoom, Focus, and extended Vertical/Horizontal Lens Shift can be fine-tuned remotely via network commands.

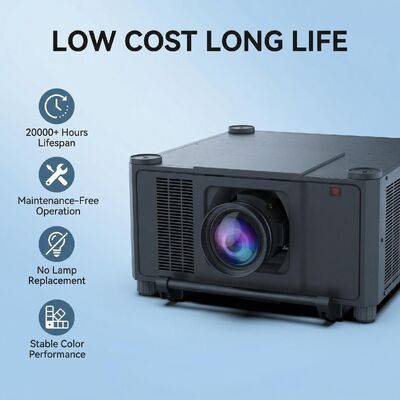

Outdoor projection mapping environments subject hardware to dust, humidity, and temperature spikes. The optical block and laser diode modules are encased in an IP5X dust-proof sealed structure. This prevents dust accumulation on internal LCD panels, eliminates filter cleanings, and ensures consistent brightness over a 20,000-hour operational lifespan.

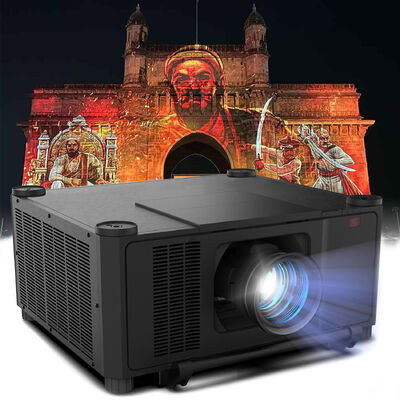

3D Architectural Projection Mapping: Transforming historical building facades, castles, and towers into dynamic night-tour art canvases.

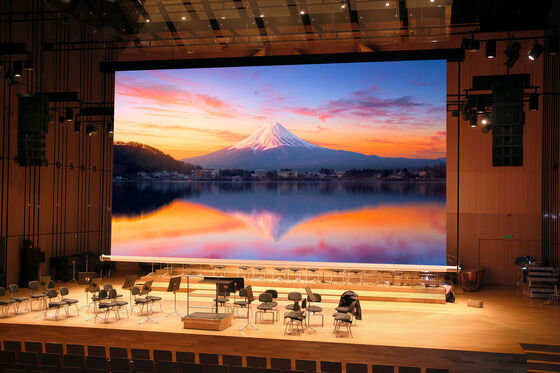

Stadiums & Arenas: Filling massive sports arena floors and opening ceremony stages with daylight-busting visuals.
Immersive Cultural Museums & Dome Theaters: Creating seamless 360-degree panoramic rooms without visible pixel gaps or color falloff.
Staging Rentals & Live Concert Tours: Built with heavy-duty rigging frames for swift load-ins, uncompromised stability, and 360° flexible tilting orientations.
Q1: How does dual-color laser technology differ from standard single-blue laser setups? Single-blue laser setups use a blue diode with a phosphor wheel to generate red and green light, often resulting in weak red color performance. Dual-color laser setups add a dedicated red laser diode array, significantly boosting color depth, color brightness, and DCI-P3 color gamut coverage at ultra-high lumen levels.
Q2: Does this 25,000-lumen projector support remote IT monitoring for large venue setups? Yes. Fully compatible with PJLink, Crestron RoomView, and AMX control protocols, AV managers can monitor thermal profiles, shutter status, and laser bank health across dozens of networked units from a centralized control console.
Direct Factory Manufacturer: Commercial and large-venue projection technology provider.
OEM & ODM Solutions: Customizable chassis branding, firmware UI, lens bundles, and specialized shipping cases for global partners.
Rigorous Quality Control: Fully sealed optical engine design ensuring IP5X dust protection and stable 24/7 continuous operation.
Global Technical Support: Engineering documentation, throw distance calculators, and comprehensive warranty support.
Contact our engineering team today to receive a customized projection distance calculation, full optical datasheet, or competitive factory quote.
