| Brand Name: | SMX |
| Model Number: | MX-12000U |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 15000pcs/monthly |

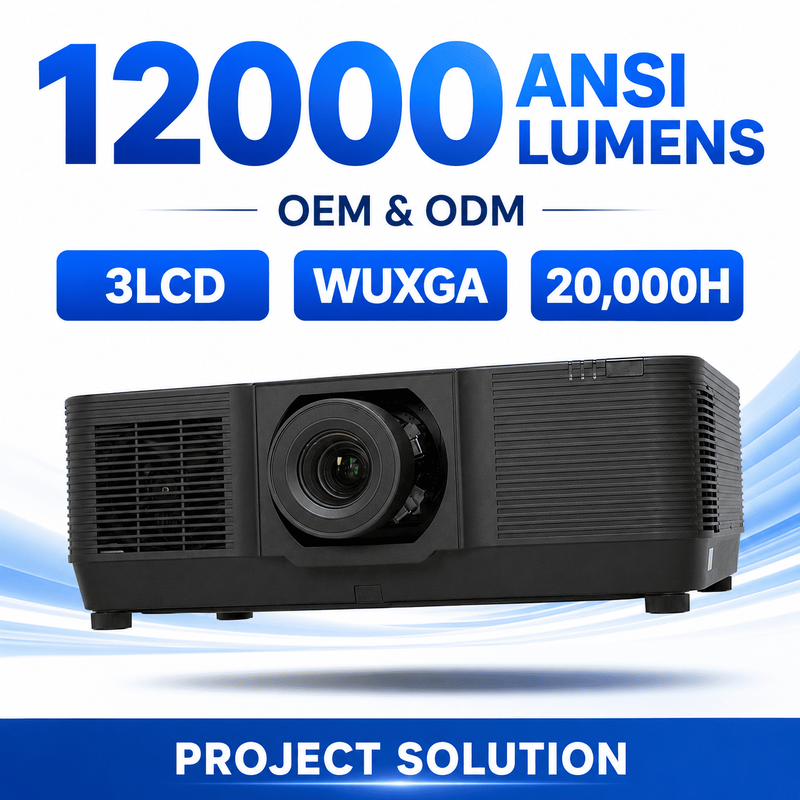

Designed for professional AV applications, this 12,000 ANSI lumens 3LCD laser projector delivers high brightness, WUXGA resolution, and flexible installation for large venues, projection mapping, museums, stages, and conference halls.
12,000 ANSI Lumens | 3LCD | WUXGA | 20,000H Laser | Edge Blending | Interchangeable Lens

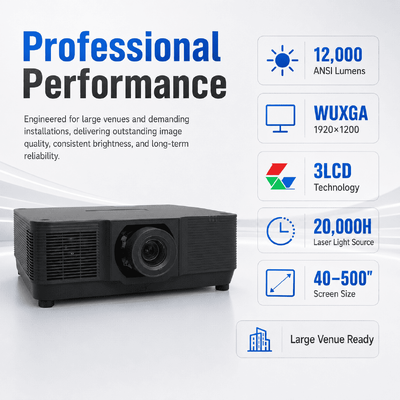

Powerful 12,000 ANSI lumens output provides clear and vivid images on large screens, making the projector ideal for professional indoor venues and large-scale visual applications.
Equipped with 3LCD display technology and native WUXGA 1920×1200 resolution, the projector delivers vivid colors, sharp details, and smooth image performance.
The laser light source offers up to 20,000 hours of operation, providing stable performance with lower maintenance requirements for professional installations.
Six optional lenses provide flexible installation for different projection distances.
Designed for complex professional projects, the projector supports flexible positioning and image adjustment.

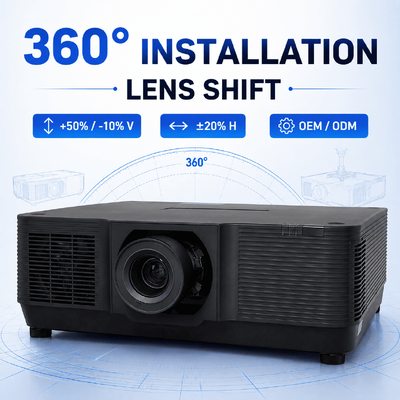

360° Installation
Lens Shift
Keystone
Additional functions include:
Built-in edge blending and geometry correction make this projector suitable for multi-projector and immersive visual systems.
A wide range of professional interfaces makes integration with AV systems simple and flexible.
High brightness for large screens and large audiences.
Clear presentations and professional business displays.
Suitable for immersive projection and digital exhibitions.
Flexible lenses and geometry correction for creative projects.
Designed for professional events and temporary installations.
Ideal for large worship spaces and presentation systems.
| Model | ||
| Model | MX-X12000U | |
| Brightness( Ansi Lumens ) | 12000lumen | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source | Laser | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time |
Normal mode | 20000hrs |
| ECO mode | 20000hrs | |
| Projection Lens | Len Type | Zoom Lens |
| Zoom/Focus | Manual | |
| Throw Ratio(16:10) | 1.46-2.95 | |
| F#(Wide-Tele) | F1.7~2.37 | |
| f(mm) | 24.4-48.6 | |
| Zoom Ratio | 2 | |
| Screen size | 40-500 inch | |
| Weight | Approx. 0.8 kg | |
| Lens Shift V | +50%,-10% | |
| Lens Shift H | ±20% | |
| CR | Contrast Ratio(Min) | 100000:1 |
| Noise | Noise(dB) | Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1(5V/1.5A) | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | Optional | |
| Audio in (mini jack,3.5mm) |
*1 (VGA/DVI-D share) | |
| Output | VGA | *1 |
| HDMI 1.4(OUT) | *1 | |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°; H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Others | 360° projection | 360° omnibearing installation |
| Edge Blending | Yes | |
Rather than focusing only on brightness, this projector provides a complete platform for professional AV installations.
Powerful brightness for large screens and demanding venues.
Vivid and natural color reproduction.
Sharp 1920×1200 image quality.
Throw ratios from 0.60:1 to 7.02:1.
Designed for multi-projector and panoramic installations.
Ideal for irregular projection surfaces.
Greater installation freedom.
HDMI, HDBaseT, LAN, RS-232C and more.
Long service life with reduced maintenance.
We provide OEM and ODM support for distributors, AV integrators, rental companies, and project contractors.
Available services can include:
OEM branding
Logo customization
Packaging customization
Product configuration support
Lens selection assistance
Projection distance calculation
Multi-projector solution design
Edge blending project support
Technical consultation
Project-based product recommendations
For larger installations, our team can assist in selecting the appropriate projector, lens, and installation configuration based on screen size, throw distance, and application environment.
It is designed for professional large-venue applications including auditoriums, conference halls, museums, churches, stages, exhibitions, projection mapping and rental events.
Yes. Six lens options are available, covering throw ratios from approximately 0.60:1 to 7.02:1.
Yes. High brightness, edge blending, geometry correction, and multiple lens options make it suitable for professional projection mapping projects.
Yes. Edge blending is available for multi-projector panoramic and immersive projection systems.
Yes. It supports 360° installation, offering greater flexibility for creative and complex installations.
Yes. HDBaseT is available for long-distance professional AV signal transmission.
The laser light source is rated for up to approximately 20,000 hours, depending on operating conditions and settings.
Yes. OEM/ODM services and project solution support are available for distributors, integrators, and professional AV customers.
The 12,000 ANSI lumens 3LCD laser projector combines high brightness, flexible lens options, edge blending, and professional installation features for demanding commercial projects.
Send us your:
Screen Size + Projection Distance + Application
We can recommend the suitable projector and lens configuration for your project.
