| Brand Name: | SMX |
| Model Number: | MX-X25000U |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 15000pcs/monthly |

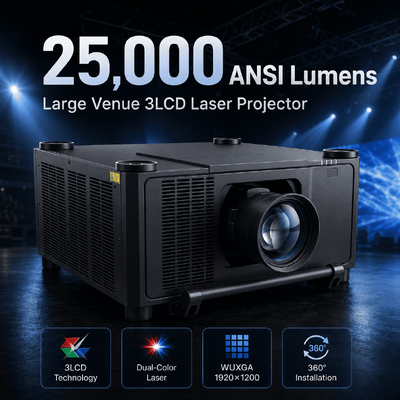

The SMX MX-X25000U is a powerful 25,000-lumen 3LCD RB laser projector designed for professional installation in higher education and corporate environments. This projector offers a wide range of digital inputs, allowing for seamless connections to computers and high-definition devices. It provides flexibility in design and installation with a complete selection of optional motorized lenses, including lens shift, focus, and zoom, as well as the capability for 360° installations.
Additionally, the HDBaseT input facilitates a single connection for uncompressed full HD digital video, audio, Ethernet power, and various control signals. An HDBaseT Repeater allows for cascading of the signal, making it ideal for edge-blending or stacking applications.
Unlike conventional single-color laser projectors, the MX-X25000U incorporates dedicated red and blue laser diodes combined with advanced 3LCD optical processing. This dual-light architecture achieves an expansive color gamut, delivering vibrant reds and natural color fidelity without sacrificing the intense 25,000-lumen brightness required for massive screens.
Engineered to conquer high ambient light and long throw distances. Whether illuminating a stadium screen, an auditorium, or an outdoor building facade, the MX-X25000U delivers vivid, high-impact visuals that hold the audience's attention.
Built-in hardware edge blending, multi-point geometric adjustment, and curved-surface correction enable seamless multi-projector stitching. Achieve massive continuous canvases on flat, cylindrical, spherical, or irregular surfaces with ease.
Equipped with a sealed optical system designed for IP5X dust protection, extending maintenance intervals. Flexible 360-degree installation allows portrait mode and ceiling or floor setups for complex creative layouts.

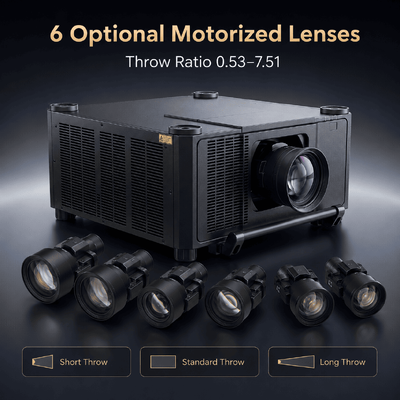

Compatible with a full range of optional motorized lenses (from short throw to long throw). Equipped with powered zoom, focus, and broad memory lens shift (V: ±60%, H: ±30%) to seamlessly fit any installation distance or venue geometry.
| Parameter | Specification Details |
|---|---|
| Model | SMX MX-X25000U |
| Display Technology | 3LCD (3 x 0.76" Inorganic LCD Panels) |
| Light Source | Dual-Color Laser (Red & Blue Diodes) |

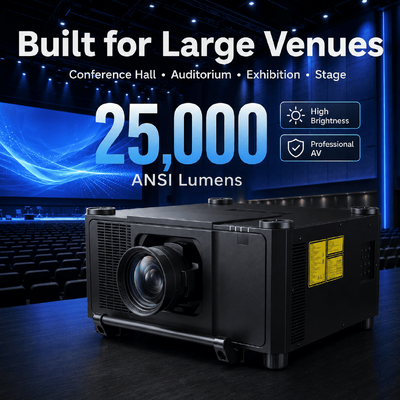

| Brightness | 25,000 ANSI Lumens |

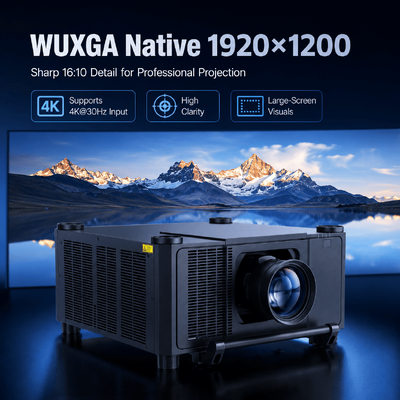

| Native Resolution | WUXGA (1920 x 1200 pixels, 16:10) |
| Dynamic Contrast Ratio | 5,000,000:1 |
| Light Source Life | 20,000 Hours (Standard) / 30,000 Hours (Eco Mode) |
| Lens Shift | Motorized Vertical ±60%, Horizontal ±30% |
| Inputs & Connectivity | HDMI x 2, DisplayPort x 1, 3G-SDI in/out, DVI-D, HDBaseT, LAN (RJ45), RS-232C |
| Operating Mode | 360-Degree Free Orientation, Portrait Mode Supported |
High-luminance projection technology that transforms architectural facades into immersive visual displays.
Reliable, continuous operation with excellent red color reproduction for outdoor parks and theme shows.
Crisp WUXGA resolution with motorized lens shift capabilities to effortlessly accommodate large curved or flat screens.
Seamless multi-channel edge blending for panoramic projections that fill entire rooms.
Contact our engineering team today to receive a customized projection distance calculation, full optical datasheet, or competitive factory quote.
