| Brand Name: | SMX |
| Model Number: | MX-12000U |
| MOQ: | 1Pc |
| Payment Terms: | T/T |
| Supply Ability: | 15000pcs/monthly |

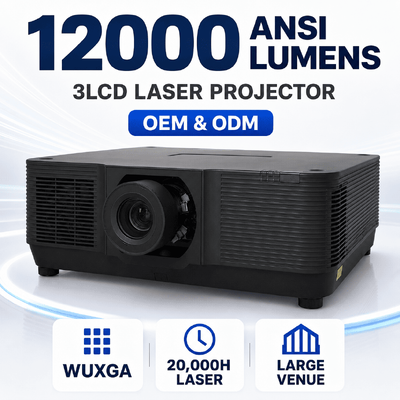

Designed for professional AV applications, this 12,000 ANSI lumens 3LCD laser projector delivers high brightness, WUXGA resolution, and flexible installation for large venues, projection mapping, museums, stages, and conference halls.
Powerful 12,000 ANSI lumens of output deliver clear, vivid images on large screens, making the projector ideal for professional indoor venues and large-scale visual applications.
Equipped with 3LCD display technology and native WUXGA 1920×1200 resolution, the projector delivers vivid colors, sharp details, and smooth image performance.
The laser light source offers up to 20,000 hours of operation, providing stable performance with lower maintenance requirements for professional installations.

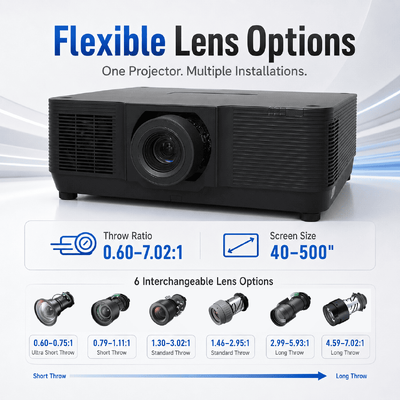

Six optional lenses provide flexible installation for different projection distances.

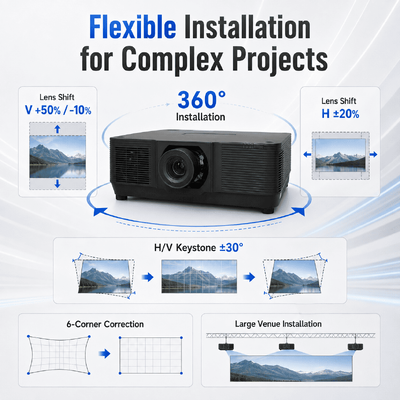

Designed for complex professional projects, the projector supports flexible positioning and image adjustment.
Built-in edge blending and geometry correction make this projector suitable for multi-projector and immersive visual systems.
A wide range of professional interfaces makes integration with AV systems simple and flexible.
| Specification | Details |
|---|---|
| Model | |
| Model | MX-X12000U |
| Brightness (ANSI Lumens) | 12,000 lumen |
| Resolution | WUXGA (1920 x 1200) |
| Light Source | Laser |
| Overall Specifications | |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light Source Lifetime | Normal mode: 20,000 hrs ECO mode: 20,000 hrs |
| Projection Lens | Zoom Lens |
| Zoom/Focus | Manual |
| Throw Ratio (16:10) | 1.46-2.95 |
| F# (Wide-Tele) | F1.7~2.37 |
| f(mm) | 24.4-48.6 |
| Zoom Ratio | 2 |
| Screen Size | 40-500 inch |
| Weight | Approx. 0.8 kg |

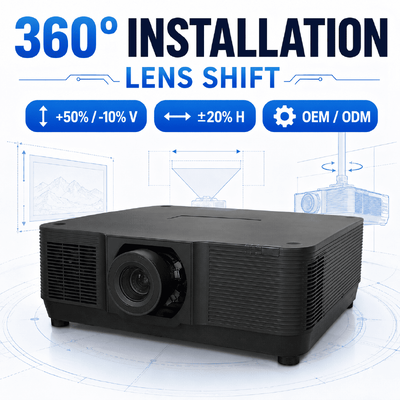

| Lens Shift V | +50%, -10% |
| Lens Shift H | ±20% |
| Contrast Ratio (Min) | 100,000:1 |
| Noise (dB) | Normal (90%): 35dB ECO1 (75%): 32dB ECO2 (45%): 32dB |
| Uniformity | 80% |
| Aspect Ratio | Native: 16:10 Compatible: 4:3/16:9/normal |
| Terminal (I/O Port) | |
| Input | VGA: *1 HDMI 1.4(IN): *2 USB-A: *1(5V/1.5A) USB-B: *1(Display) RJ45: *1(Display) DVI-D: *1 HD BaseT: *1 HD-SDI(3G-SDI): Optional Audio in (mini jack,3.5mm): *1 (VGA/DVI-D share) |
| Output | VGA: *1 HDMI 1.4(OUT): *1 Audio out (mini-jack,3.5mm): *1 |
| Control | RS232: *1 RJ45: *1 (Control) USB-B: *1 (For upgrade) Wired Remote(IN): *1 Wired Remote(OUT): *1 |
| Other Functions | |
| Keystone Correction | V: ±30°; H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron): Yes LAN Control-AMX Discovery: Yes LAN Control-PJ Link: Yes |
| Others | 360° projection: 360° omnibearing installation Edge Blending: Yes |
Rather than focusing only on brightness, this projector provides a complete platform for professional AV installations.
Professional Support for Global AV Partners
We provide OEM and ODM support for distributors, AV integrators, rental companies, and project contractors.
For larger installations, our team can assist in selecting the appropriate projector, lens, and installation configuration based on screen size, throw distance, and application environment.
The 12,000 ANSI lumens 3LCD laser projector combines high brightness, flexible lens options, edge blending, and professional installation features for demanding commercial projects.
Send us your: Screen Size + Projection Distance + Application
We can recommend the suitable projector and lens configuration for your project.
