Professional Large Venue Projector 12000 ANSI Lumens 3LCD WUXGA Laser Projector OEM ODM

Brand Name:	SMX
Model Number:	MX-12000U
MOQ:	1Pc
Payment Terms:	T/T
Supply Ability:	15000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO，CE， ROHS

Document:

SMX 12000 Lumen Laser Proje...on.pdf

Brightness:

12000 Lumens

Resolution:

WUXGA

Light Source:

Laser

Display Technology:

3LCD

Lenses:

Manual & Motorized

Keystone Correction:

Yes

Supply Ability:

15000pcs/monthly

Highlight:

12000 ANSI Lumens Laser Projector

3LCD Technology Large Venue Projector

WUXGA Resolution 3D Mapping Projector

Product Description

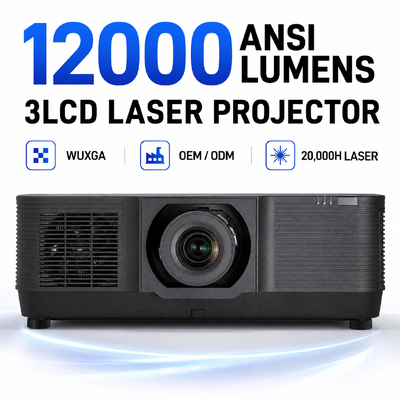

12000 ANSI Lumens 3LCD Laser Projector WUXGA Large Venue Projector

Powerful Brightness. Flexible Installation. Professional Visual Performance. Designed for demanding professional AV applications, this 12,000 ANSI lumens 3LCD laser projector combines high brightness, native WUXGA 1920×1200 resolution, interchangeable lens flexibility, and advanced installation features.

With edge blending, lens shift, geometry correction, and 360° installation, it is an ideal projection solution for auditoriums, conference halls, museums, exhibitions, churches, rental events, stages, and projection mapping projects.

Powerful 12,000 ANSI Lumens Brightness

Clear Images for Large Screens and Large Venues

With up to 12,000 ANSI lumens brightness, the projector delivers bright, clear, and highly visible images on large projection surfaces. It is designed for professional environments where high brightness is essential, including auditoriums, conference halls, event venues, and exhibition spaces.

Key Benefits

12,000 ANSI Lumens
Clear images on large screens
Strong visual performance in ambient light
Suitable for professional large-venue installations
Designed for continuous commercial use

3LCD Technology for Vivid Color

Bright, Natural and Consistent Image Performance

Advanced 3LCD display technology provides excellent color reproduction and balanced brightness, delivering vivid images with natural color transitions. Whether displaying presentations, videos, digital artwork, or immersive content, the projector provides consistent image quality for professional visual applications.

Display Performance

3LCD Display Technology
Rich and natural colors
Smooth color gradation
Excellent image consistency
Suitable for business and creative visual content

Native WUXGA 1920×1200 Resolution

20,000-Hour Laser Light Source

Long-Life Performance with Reduced Maintenance

The solid-state laser light source provides up to 20,000 hours of operation, significantly reducing the need for frequent lamp replacement. It is ideal for fixed installations and professional projects requiring reliable long-term operation.

Laser Advantages

Up to 20,000 hours of laser life
Reduced maintenance requirements
Stable long-term brightness
Fast startup
Designed for professional installation

The closed internal circulation cooling design also helps improve long-term operating reliability.

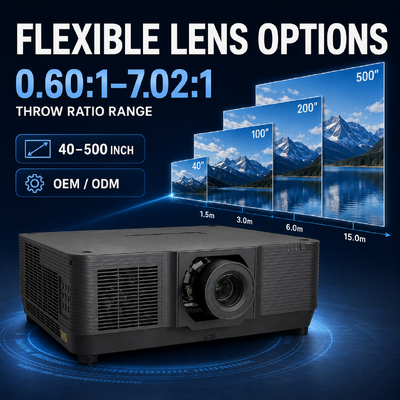

6 Interchangeable Lens Options

From Short Throw to Long Throw

One of the major advantages of this projector is its flexible interchangeable lens system. Six optional lenses provide a total throw ratio range from approximately:

0.60:1 - 7.02:1

This allows the same projector platform to be adapted to different room sizes, screen dimensions, and installation distances.

Projection Screen Size: approximately 40 - 500 inches

This wide lens selection makes the projector suitable for everything from compact rear installations to very large auditoriums and long-distance projection systems.

Flexible Installation for Complex Projects

More Freedom for Professional Integrators

Professional AV projects often involve restricted installation positions, unusual projection angles, or irregular projection surfaces. This projector provides multiple installation adjustment functions to simplify setup.

Lens Shift

Vertical: +50% / -10%
Horizontal: ±20%

Keystone Correction

Vertical: ±30°
Horizontal: ±30°

Advanced Geometry Adjustment

6-Corner Correction
Pincushion Correction
Barrel Correction
Grid ImageTune
Image geometry adjustment

These functions help installers achieve accurate image positioning without relying entirely on the physical position of the projector.

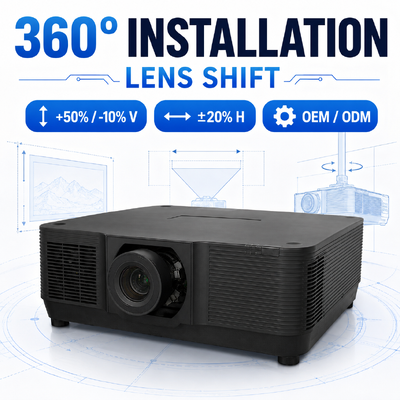

360° Flexible Installation

Designed for Creative Projection Environments

The projector supports 360-degree installation, allowing it to operate in a wide range of orientations.

This makes it particularly suitable for:

Ceiling installation
Portrait-style installation
Vertical projection
Floor projection
Museum installations
Stage installations
Projection mapping projects
Immersive environments

Edge Blending for Multi-Projector Systems

Create Seamless Panoramic and Immersive Images

Integrated edge blending capability allows multiple projectors to work together to create a larger continuous image. This is especially useful when a single projector cannot cover the required projection area.

Ideal for

Panoramic projection
Immersive rooms
Projection mapping
Museums
Digital exhibitions
Simulation systems
Large-format displays
Multi-projector installations

Combined with geometry correction, the projector provides greater flexibility for complex multi-channel projection systems.

Built for Projection Mapping

Turn Architecture and Surfaces into Visual Experiences

High brightness, interchangeable lenses, geometry correction and edge blending make this projector well suited for professional projection mapping applications. It can be used to project creative visual content onto buildings, exhibition walls, stages and irregular surfaces.

Professional Connectivity

Easy Integration into Professional AV Systems

A comprehensive range of interfaces allows the projector to integrate with modern AV equipment, control systems, and signal distribution networks.

3G-SDI can be configured as an optional interface where required.

HDBaseT support is particularly useful for professional installations where video and control signals need to be transmitted over longer distances.

Applications

One Projector for Multiple Professional Environments

Auditorium

12,000 ANSI lumens provides the brightness required for large screens and larger audiences.

Conference Hall

WUXGA resolution ensures clear presentations, text, and business graphics.

Church & House of Worship

Suitable for large sanctuary screens, presentations, live video, and worship content.

Museum & Exhibition

Edge blending and geometry correction support immersive displays and digital exhibitions.

Projection Mapping

Flexible lenses, high brightness, and geometry adjustment make the projector suitable for architectural and creative mapping.

Rental & Staging

Professional brightness and flexible installation support temporary events, stages, and live productions.

Education & Lecture Hall

Suitable for large lecture theaters and educational environments requiring high brightness and clear text.

Technical Specifications

Model	MX-X12000U
Brightness (ANSI Lumens)	12000 lumen
Resolution	WUXGA (1920 x 1200)
Light Source	Laser

Overall Spec

Display Panel	3x0.76"
Display Technology	Liquid Crystal Display
Native Resolution	WUXGA (1920 x 1200)
Light Source Lifetime (Normal mode)	20000 hrs
Light Source Lifetime (ECO mode)	20000 hrs
Lens Type	Zoom Lens
Zoom/Focus	Manual
Throw Ratio (16:10)	1.46-2.95
F# (Wide-Tele)	F1.7~2.37
f (mm)	24.4-48.6
Zoom Ratio	2
Screen Size	40-500 inch
Weight	Approx. 0.8 kg
Lens Shift V	+50%, -10%
Lens Shift H	±20%
Contrast Ratio (Min)	100000:1
Noise (dB)	Normal(90%): 35dB ECO1(75%): 32dB ECO2(45%): 32dB
Uniformity	80%
Aspect Ratio	Native: 16:10 Compatible: 4:3/16:9/normal

Terminal (I/O Port)

Input	VGA 1 HDMI 1.4(IN) 2 USB-A 1(5V/1.5A) USB-B 1(Display) RJ45 1(Display) DVI-D 1 HD BaseT 1 HD-SDI(3G-SDI) Optional Audio in (mini jack, 3.5 mm) 1 (VGA/DVI-D share)
Output	VGA 1 HDMI 1.4(OUT) 1 Audio out (mini-jack,3.5mm) *1
Control	RS232 1 RJ45 1 (Control) USB-B 1 (For upgrade) Wired Remote(IN) 1 Wired Remote(OUT) *1

Other Functions

Keystone Correction	V: ±30°; H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron): Yes LAN Control-AMX Discovery: Yes LAN Control-PJ Link: Yes
Others	360° projection: 360° omnibearing installation Edge Blending: Yes

Why Choose This 12,000-ANSI-Lumens Projector?

Rather than focusing only on brightness, this projector provides a complete platform for professional AV installations.

12,000 ANSI Lumens

Powerful brightness for large screens and demanding venues.

3LCD Technology

Vivid and natural color reproduction.

WUXGA Resolution

Sharp 1920×1200 image quality.

Interchangeable Lenses

Throw ratios from 0.60:1 to 7.02:1.

Edge Blending

Designed for multi-projector and panoramic installations.

Advanced Geometry Correction

Ideal for irregular projection surfaces.

360° Installation

Greater installation freedom.

Professional Interfaces

HDMI, HDBaseT, LAN, RS-232C and more.

20,000-Hour Laser

Long service life with reduced maintenance.

OEM & ODM Projector Solutions

Professional Support for Global AV Partners

We provide OEM and ODM support for distributors, AV integrators, rental companies, and project contractors.

Available services can include:

OEM branding
Logo customization
Packaging customization
Product configuration support
Lens selection assistance
Projection distance calculation
Multi-projector solution design
Edge blending project support
Technical consultation
Project-based product recommendations

For larger installations, our team can assist in selecting the appropriate projector, lens, and installation configuration based on screen size, throw distance, and application environment.

Frequently Asked Questions

What type of applications is this projector suitable for?

It is designed for professional large-venue applications including auditoriums, conference halls, museums, churches, stages, exhibitions, projection mapping, and rental events.

Does the projector support interchangeable lenses?

Yes. Six lens options are available, covering throw ratios from approximately 0.60:1 to 7.02:1.

Can it be used for projection mapping?

Yes. High brightness, edge blending, geometry correction, and multiple lens options make it suitable for professional projection mapping projects.

Does it support edge blending?

Yes. Edge blending is available for multi-projector panoramic and immersive projection systems.

Can the projector be installed vertically or at different angles?

Yes. It supports 360° installation, offering greater flexibility for creative and complex installations.

Does it support HDBaseT?

Yes. HDBaseT is available for long-distance professional AV signal transmission.

What is the laser light source life?

The laser light source is rated for up to approximately 20,000 hours, depending on operating conditions and settings.

Do you provide OEM and ODM services?

Yes. OEM/ODM services and project solution support are available for distributors, integrators, and professional AV customers.

Build Your Professional Projection Solution

Whether you are planning an auditorium, conference hall, immersive exhibition, projection mapping installation, or large-scale event, this 12,000 ANSI lumens 3LCD laser projector provides the brightness, image quality, and installation flexibility required for professional projects.

Need help selecting the right lens or projector configuration?

Send us your screen size, projection distance, and application environment. Our team can recommend a suitable projector and lens solution for your project.
