| Brand Name: | SMX |
| Model Number: | MX-X20000U |
| MOQ: | 1pc |
| Price: | negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
The SMX’s MX-X20000U is a laser LCD engineering projector, which adopts a new generation of LCD light source technology. The maximum brightness can reach 20,000lm brightness and a long life of up to 20,000 hours, so that it maintains a bright display throughout its life. It avoids the radiation of light to the human body, and can completely solve the interference of shadows on the screen. It adopts liquid crystal display (LCD) technology with a color depth of 1.07 billion colors.
For 3D Mapping, I would position this projector around five core capabilities:
For large-scale and high-impact projection.
For accurately fitting images to complex architectural structures.
For creating extremely large seamless projection canvases with multiple projectors.
For different projection distances and installation environments.
For creative architectural, stage and immersive projection designs.
A strong marketing positioning would therefore be:
A professional 20,000-lumen laser projection solution designed for large-scale 3D Mapping, architectural projection, immersive environments and multi-projector installations.
The 20,000-lumen output is one of the projector's strongest selling points.
For 3D Mapping, brightness is critical because projection surfaces can be extremely large and outdoor environments may have considerable ambient light. High brightness helps maintain:
This makes the MX-X20000U particularly suitable for large buildings, museums, landmarks, stages, outdoor events and immersive attractions.
The 3LCD architecture uses three 1.0-inch LCD panels, providing strong color reproduction and smooth image presentation.
For projection mapping, this is important because mapping content frequently contains:
The 3LCD system helps deliver consistent and visually rich colors across large projection surfaces.
This is arguably one of the most important features for 3D Mapping.
The MX-X20000U supports:
V/H ±30° Keystone Correction
6-Corner Geometry Correction
Pincushion/Barrel Correction
Grid ImageTune Correction
3D Mapping rarely involves a perfectly flat rectangular screen. Buildings may contain:
The combination of 6-corner and grid-based correction gives installers much more flexibility when fitting projected content precisely onto complex surfaces.
The built-in Edge Blending function is extremely valuable for professional 3D Mapping.
For very large buildings or panoramic projection environments, one projector may not provide sufficient image width.
Multiple MX-X20000U projectors can be combined to create:
Projector 1 + Projector 2 + Projector 3 → One Large Seamless Image
Edge blending helps eliminate visible boundaries between projection areas.
This makes the projector suitable for:
The large lens-shift range is another important professional-installation advantage.
Instead of physically moving the projector to achieve the correct image position, installers can adjust the lens optically.
This provides greater flexibility for:
It can also reduce installation complexity.
The projector supports several motorized zoom lenses:
This is particularly valuable for 3D Mapping because projection distances vary significantly from project to project.
For example:
Short throw → Medium throw → Long throw
can be covered using different lenses instead of requiring completely different projector models.
The projector supports 360° installation, making it suitable for creative projection applications.
This is useful for:
For experiential marketing and entertainment projects, this feature can significantly expand the possible installation designs.
The laser light source provides long-term operating stability.
With:
20,000 hours Normal Mode
30,000 hours ECO Mode
the projector is well suited to installations where maintenance accessibility is limited.
This is particularly attractive for:

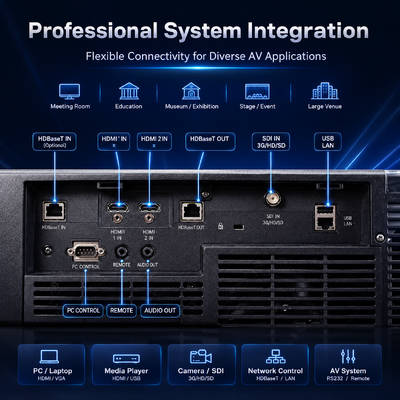

The MX-X20000U includes professional control and signal interfaces such as:
HDBaseT / HDMI / DisplayPort / DVI-D / VGA / 5BNC / RJ45 / RS232 / DMX512
It also supports:
Crestron / AMX / PJLink
This allows the projector to be integrated into professional AV control systems rather than operating as a standalone presentation projector.
The projector supports operation from 0°C to 50°C and high-altitude operation from 1,400–3,050 m.
This broadens its potential deployment environments and is useful for demanding professional installations.
Specification
| Model | MX-X20000U | |
| Brightness | ||
| Brightness(Lumen) | 20,000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) |
Len Model | MX-EG12ZLM |
| Zoom/Focus | Motorized | |
| Throw Ratio (16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift V | ±65% | |
| Lens Shift H | ±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232C (Input) | *1 |
| RS232C (Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Others | 360° projection | 360° Install |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Dimension&Weight | ||
| Product Size (WxHxD mm) | 599X240.2X493.8mm (not including lens) | |
| Net. Weight (KG) | 28.9Kg (not including lens) | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord (3m, Black), Remote control | |
