| Brand Name: | SMX |
| Model Number: | MX-STD4800U |
| MOQ: | 1pc |
| Price: | 660usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Model No. | MX-STD4800U |
|---|---|
| Brightness | |
| Brightness (Ansi Lumen) | 4800 |
| Resolution | WUXGA |
| Overall Spec | |
| Light source | Laser |
| Lifetime |
Normal mode: 20000hrs
ECO1 mode: 30000hrs(TBD)
|
| Projection Lens | |
| Lens Vendor | RICOH |
| F | 1.6~1.76 |
| f | 19.158~23.018mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.37~1.65:1 |
| Zoom Ratio | 1.2x optics |
| Screen size | 30-300 inch |
| CR | |
| Dynamic Contrast Ratio | 5000,000:1 |
| Noise | |
| Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | |
| Uniformity | 80% |
| AR | |
| Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |
| Terminal(I/O port) | |

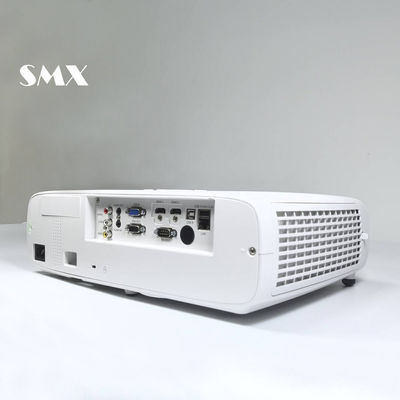

| Input | VGA, HDMI *2, Video, Audio in *2, USB-A, USB-B, RJ45 |
| Output | VGA, Audio out |
| Control | RS232, RJ45, USB-B, LAN |
| General Spec | |
| Audio | Speaker: 16W*1 |
| Power Consumption | Power Requirements: 100~240V@ 50/60Hz |
| Other Functions | |
| Keystone | Keystone Correction (Lens@center): V: ±30° / H:±30° Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune |
| LAN Control | Yes |
| SW Setting | Auto Setup: INPUT SEARCH, AUTO PC, Auto Keystone Auto Ceiling: Yes 360° projection: Yes |
| Dimension&Weight | |
| Product (WxDxH mm) | 390*294*127 |
| Net. Weight (KG) | 5Kg |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord Remote control |
