| Brand Name: | SMX |
| Model Number: | MX-X20000U |
| MOQ: | 1pc |
| Price: | 19980usd/pc |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 12000pcs/Monthly |
| Model# | MX-EG05ZLM | MX-EG06ZLM | MX-EG08ZLM | MX-EG12ZLM | MX-EG20ZL | OL-EG39ZLM |
| Image circle | Φ34.6 | Φ35.5 | Φ37.9 | Φ37.9 | Φ37.9 | Φ37.9 |
| Zoom/Focus | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
| F# (Wide-Tele) | 1.85-2.20 | 1.84-2.25 | 1.80-2.24 | 1.80-2.24 | 1.84-2.58 | 1.85-2.42(TBD) |
| f(mm) | 12.0-14.6 | 14.4-19.1 | 19.0-27.6 | 27.7-44.3 | 43.8-86.0 | 86.8-163.5(TBD) |
| Throw Ratio (16:10) | 0.53-0.65 | 0.65-0.87 | 0.86-1.25 | 1.24-2.01 | 1.98-3.95 | 3.95-7.50(TBD) |
| Zoom Ratio | 1.23 | 1.34 | 1.45 | 1.62 | 1.99 | 1.90(TBD) |
| Lens shift H | ±20% | ±20% | ±25% | ±25% | ±25% | ±25% |
| Lens shift V | ±50% | ±55% | ±65% | ±65% | ±65% | ±65% |
| Screen Size | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch |

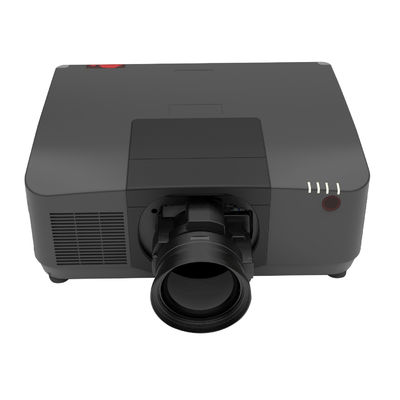

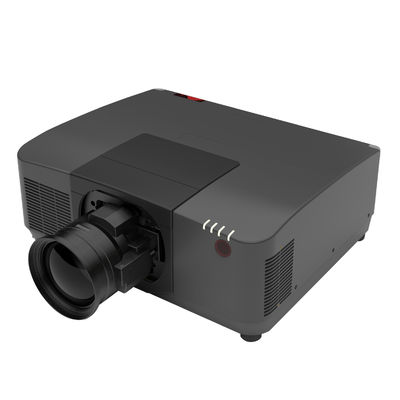

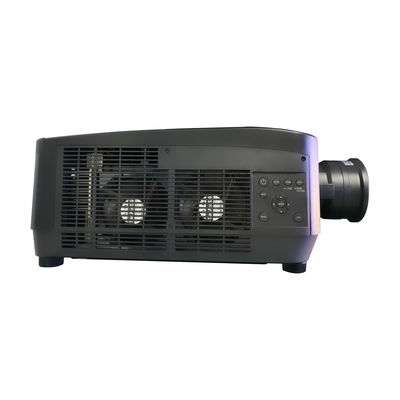

| Model# | MX-X20000U |
| Brightness | |
| Brightness (Lumen) | 20,000 |
| Overall Spec | |
| Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Laser Lifetime Normal mode | 20,000hrs |
| Laser Lifetime ECO mode | 30,000hrs |
| Projection Lens (STD) | |
| Lens Model | MX-EG12ZLM |
| Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| F | 1.8-2.24 |
| f | 27.7-44.3mm |
| Zoom Ratio | 1.62 |
| Screen size | 60-500 inch |
| Lens Shift V | ±65% |
| Lens Shift H | ±25% |
| Contrast Ratio (Min) | 3,000,000:1 |
| Noise (dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity | TYP:90% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal (I/O port) | |
| Input VGA | *1 |
| HDMI 1.4(IN) | *2 |
| USB-A | *1 |
| USB-B | *1 (Display) |
| RJ45 | *1 (Display) |
| DVI-D | *1 |
| HD BaseT | *1 |
| Audio in (mini jack,3.5mm) | *1 (VGA/DVI-D share) |
| DMX512 | *1 |
| Output HDMI 1.4(OUT) | *1 |
| Audio out (mini-jack,3.5mm) | *1 |
| Control RS232C (Input) | *1 |
| Control RS232C (Output) | *1 |
| Wired Remote(IN) | *1 |
| Wired Remote(OUT) | *1 |
| Other Functions | |
| Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| OSD Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes |
| LAN Control-PJ Link | Yes |
| Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| 360° projection | 360° Install |
| Edge Blending | Yes |
| Adjustable brightness | Yes |
| Dimension & Weight | |
| Product Size (WxHxD mm) | 599X240.2X493.8mm (not including lens) |
| Net Weight (KG) | 28.9Kg (not including lens) |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord (3m, Black), Remote control |
